Pinpoint Test I: The Variable Assist Power Steering (VAPS) Module Does Not Respond To The Diagnostic Tool

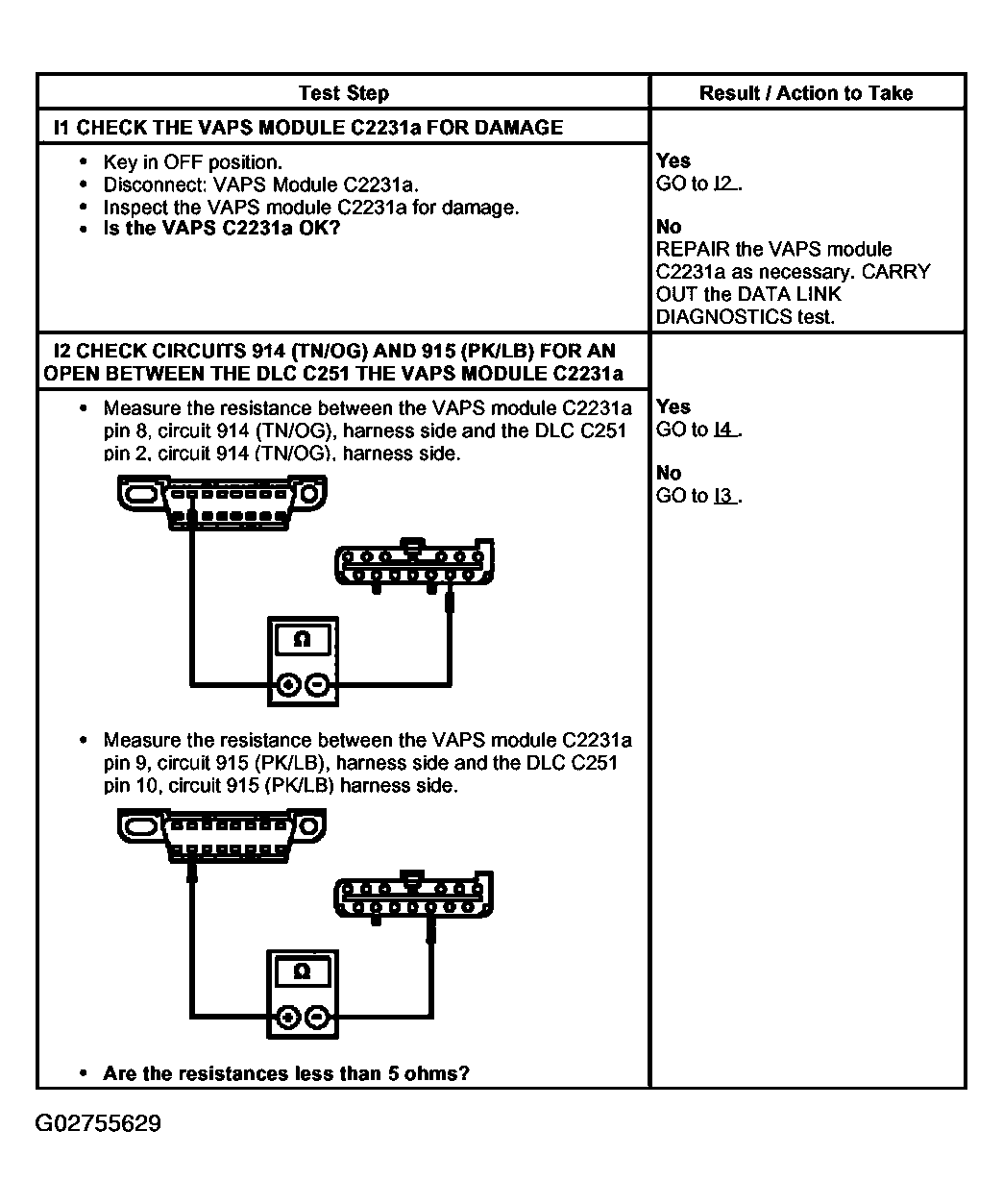

Fig 1: Pinpoint Test I: Variable Assist Power Steering (VAPS) Module Does Not Respond To Diagnostic Tool (Step I1 & I2)
G02755629Courtesy of FORD MOTOR CO.

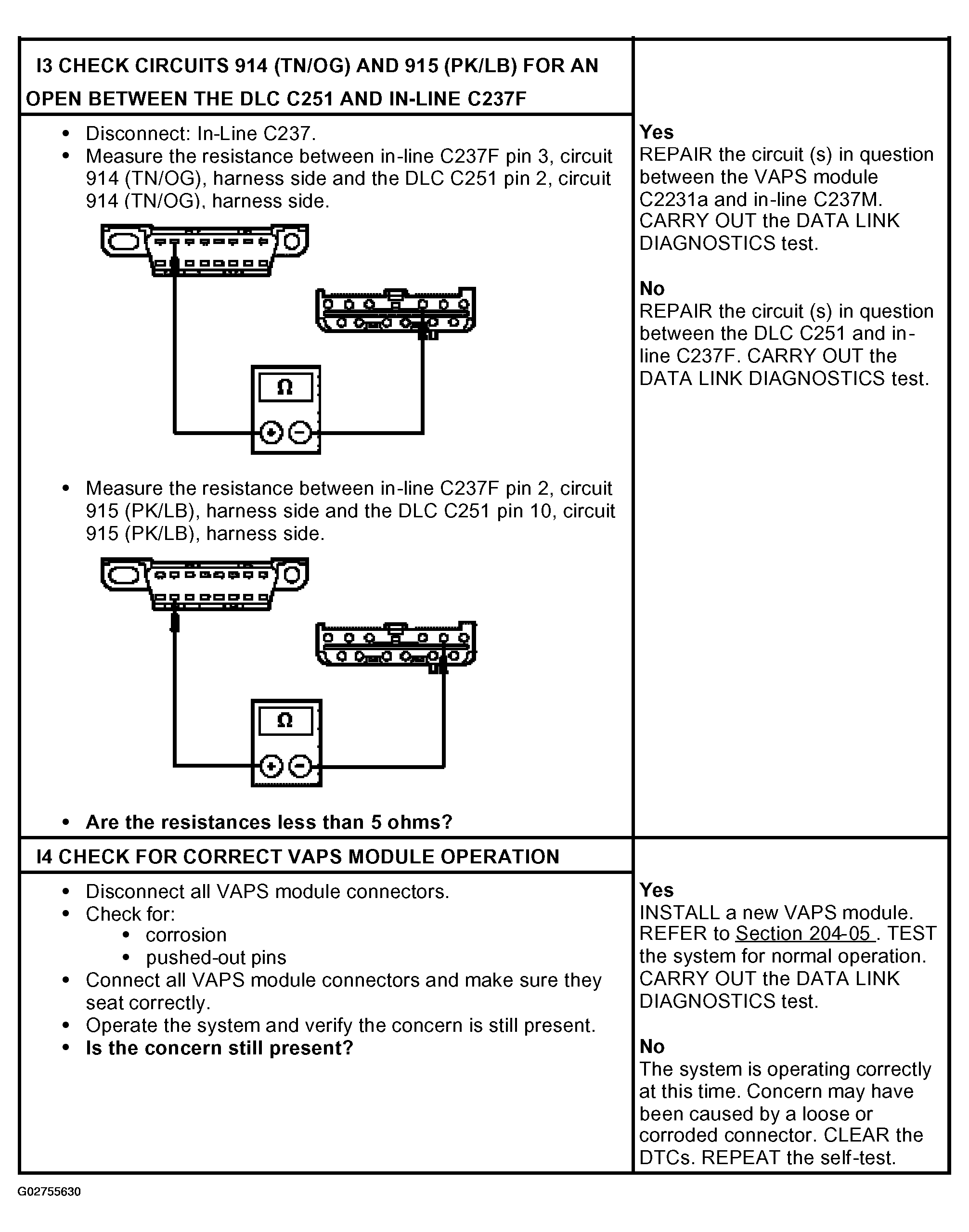

Fig 2: Pinpoint Test I: Variable Assist Power Steering (VAPS) Module Does Not Respond To Diagnostic Tool (Step I3 & I4)
G02755630Courtesy of FORD MOTOR CO.
