Pinpoint Test J: The Lighting Control Module (LCM) Does Not Respond To The Diagnostic Tool

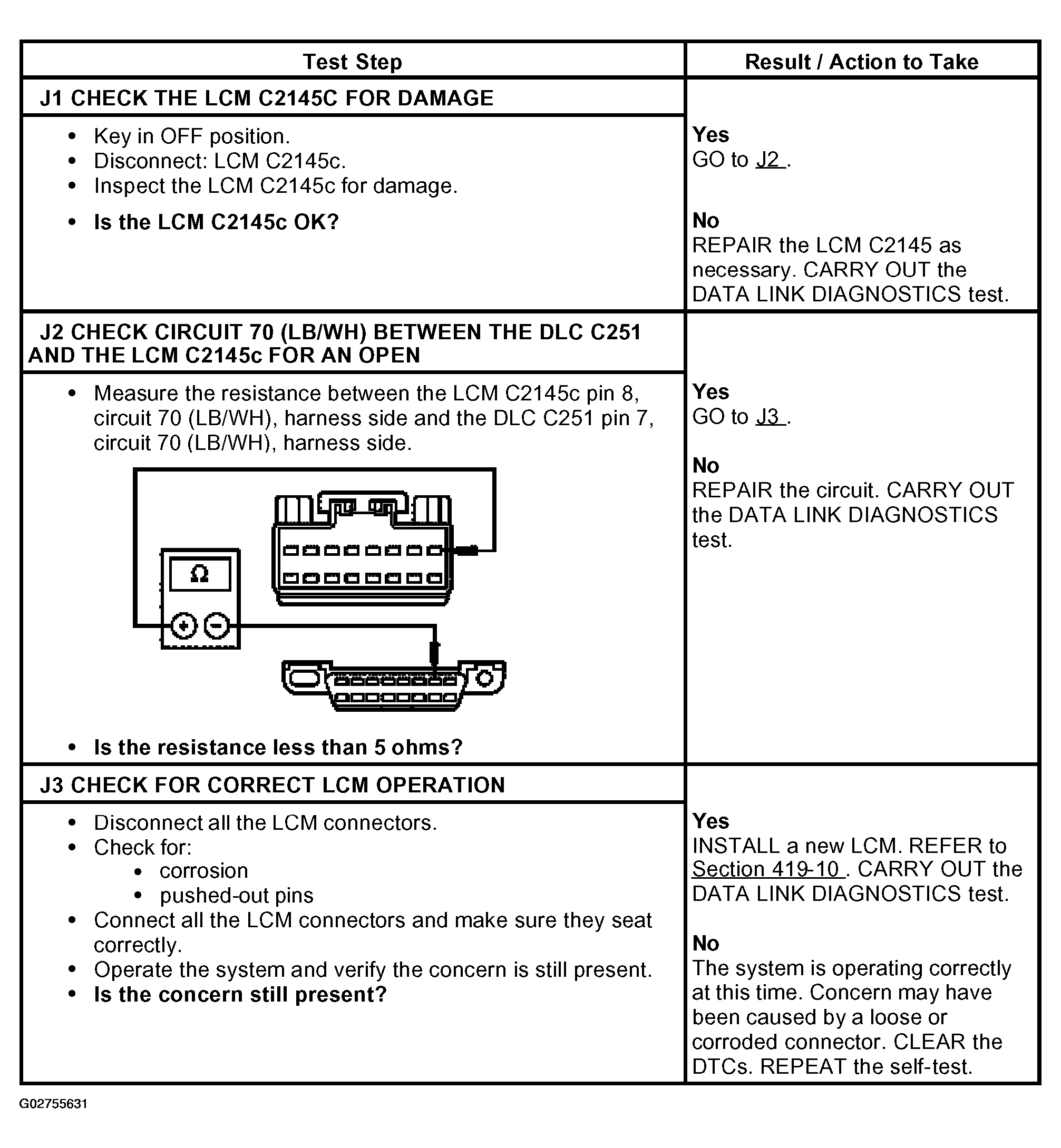

Fig 1: Pinpoint Test J: Lighting Control Module (LCM) Does Not Respond To Diagnostic Tool
G02755631Courtesy of FORD MOTOR CO.
