Pinpoint Test DS: Air Conditioning Pressure (ACP) Sensor: Introduction: Notes

NOTE: This pinpoint test is intended to diagnose the following:
  • Air Conditioning Pressure (ACP) Sensor (19D594).
  • Harness Circuits: ACP, VREF, SIGRTN.
  • Powertrain control module (PCM) (12A650).

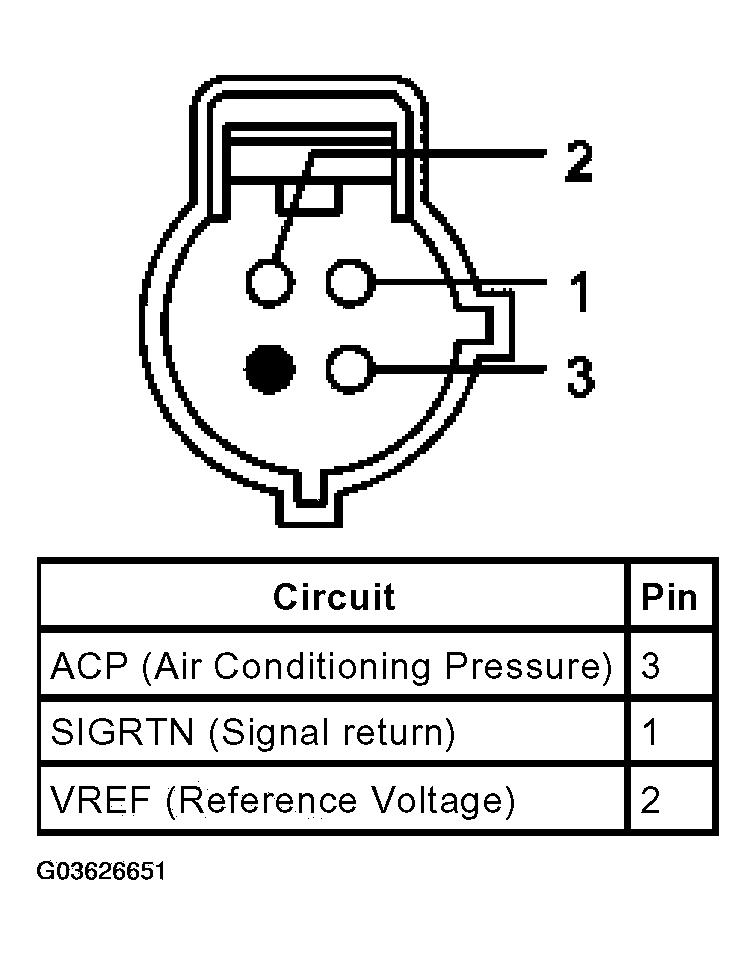

Fig 1: Identifying Air Conditioning Pressure (ACP) Sensor Connector
G03626651Courtesy of FORD MOTOR CO.
