Lumbar Control Switch: Installation

Marauder

Install the power lumbar switch until seated into bezel.

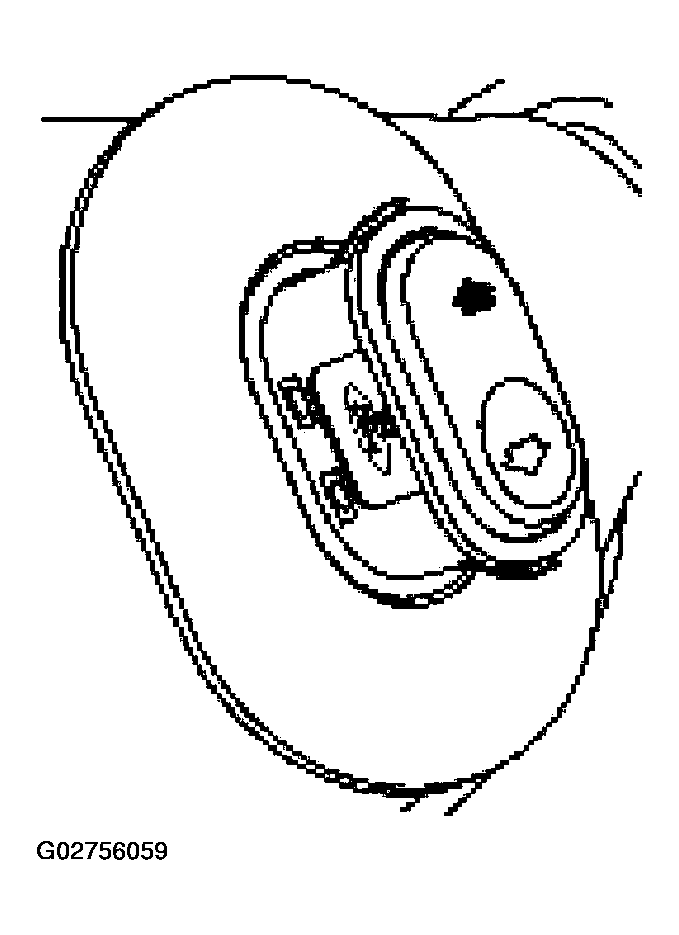

Fig 1: Installing Power Lumbar Switch Until Seated Into Bezel
Courtesy of FORD MOTOR CO.
Connect the power lumbar switch electrical connector.

Fig 2: Connecting Power Lumbar Switch Electrical Connector
Courtesy of FORD MOTOR CO.
Fasten the seat cushion cover J-clips.

Crown Victoria / Grand Marquis

Connect the lumbar control switch electrical connector. Install the lumbar control switch.

Fig 3: Connecting Lumbar Control Switch Electrical Connector
Courtesy of FORD MOTOR CO.
Install the cover.

Fig 4: Installing Cover
Courtesy of FORD MOTOR CO.

Marauder

Install the affected seat. For additional information, refer to FRONT SEAT .

All vehicles

Repower the SRS. For additional information, refer to AIR BAG RESTRAINT SYSTEMS .
