Rear View Mirror C911
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

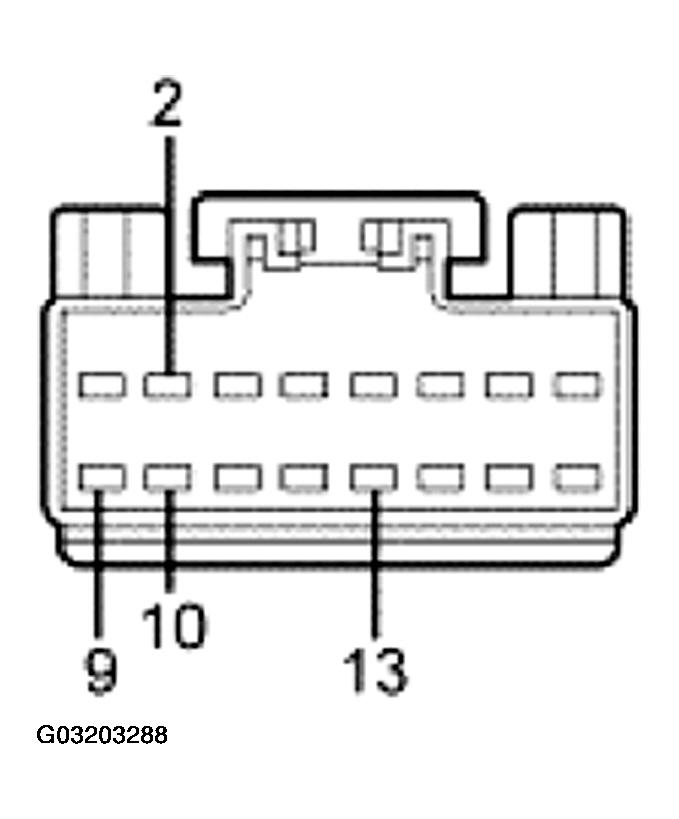

C911 CONNECTOR REFERENCE CHART
| Pin Number(s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 2 | 31-AD15 (BK/OG) rear view mirror ground | Less than 5 ohms to ground. |
| 9 | 8-MC8 (WH/RD) rear view mirror microphone (+) | Less than 5 ohms between the navigation system module and the rear view mirror with the navigation system module disconnected. Greater than 10,000 ohms between the rear view mirror and ground with the navigation system module disconnected. |
| 10 | 9-MC8 (BN/RD) rear view mirror microphone (-) | Less than 5 ohms between the navigation system module and the rear view mirror with the navigation system module disconnected. Greater than 10,000 ohms between the rear view mirror and ground with the navigation system module disconnected. |
| 13 | 75-AD15 (YE/BU) switched B+ voltage feed | 0 volts key OFF, greater than 10 volts key ON or ACC. |
