Main Control Valve Body: Disassembly

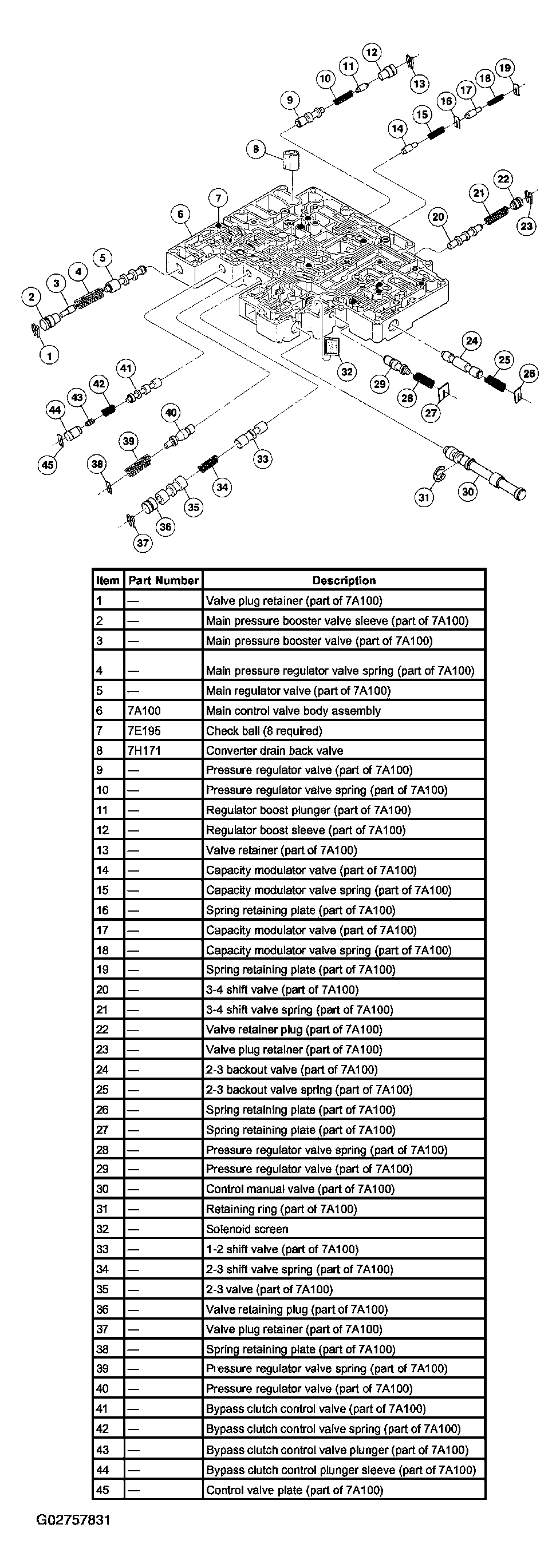

Fig 1: Disassembled View Of Main Control Valve Body

Courtesy of FORD MOTOR CO.

Remove the torque converter clutch (TCC) solenoid and the shift solenoid.
1. Remove the bolt.
2. Remove the shift solenoid.
3. Remove the TCC solenoid.

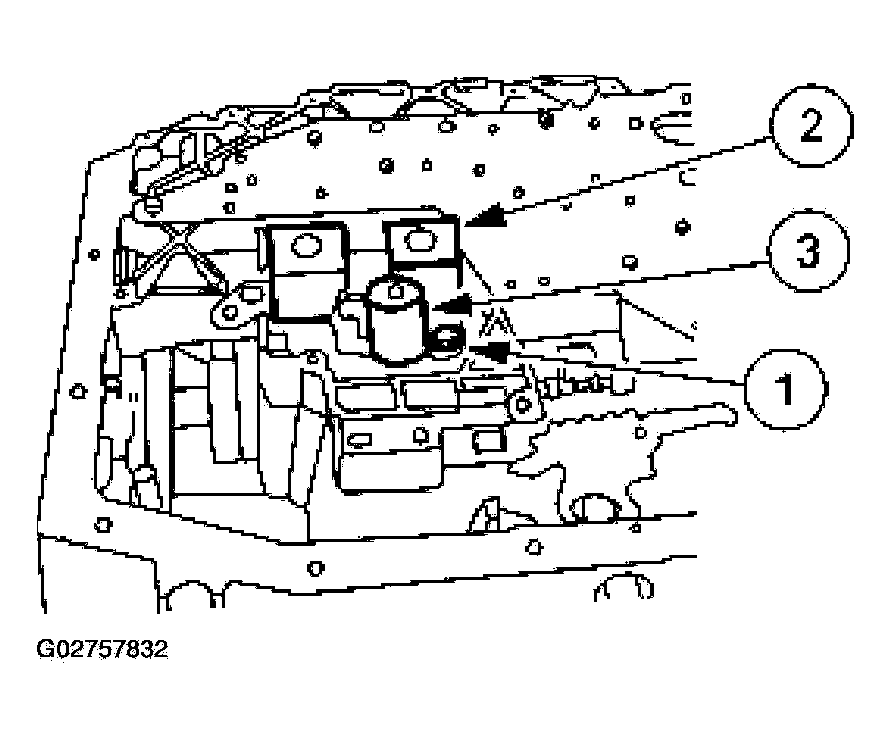

Fig 2: Removing Torque Converter Clutch (TCC) Solenoid
Courtesy of FORD MOTOR CO.
Remove the two reinforcement plates.
1. Remove the bolts.
2. Remove the plates.

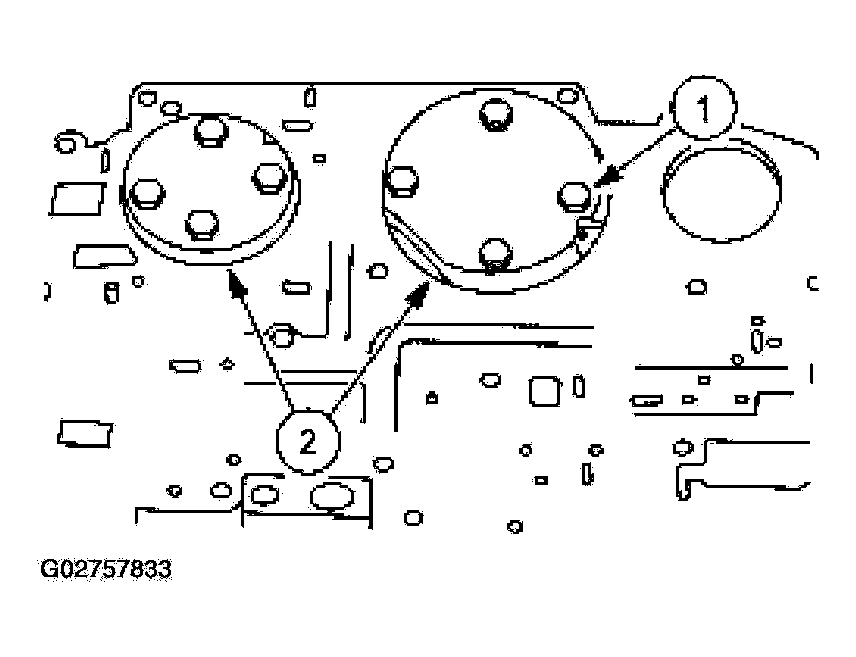

Fig 3: Removing Reinforcement Plates
Courtesy of FORD MOTOR CO.
Remove the separator plate and discard the gaskets.

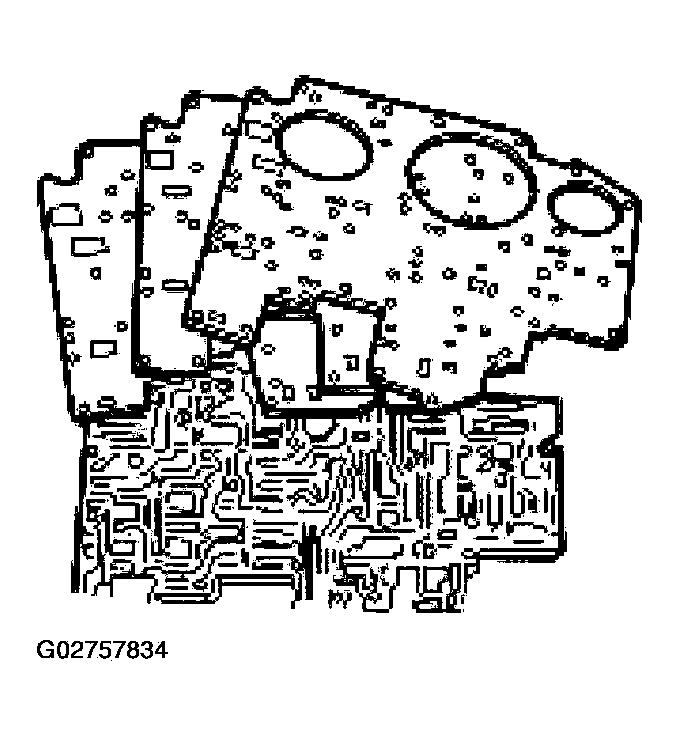

Fig 4: Removing Separator Plate
Courtesy of FORD MOTOR CO.

NOTE: Note the location of the eight coasting booster valve shuttle balls for assembly.

Fig 5: Removing Eight Coasting Booster Valve Shuttle Balls

Courtesy of FORD MOTOR CO.

Remove the eight coasting booster valve shuttle balls.
Remove the converter drain back valve and solenoid pressure supply screen.

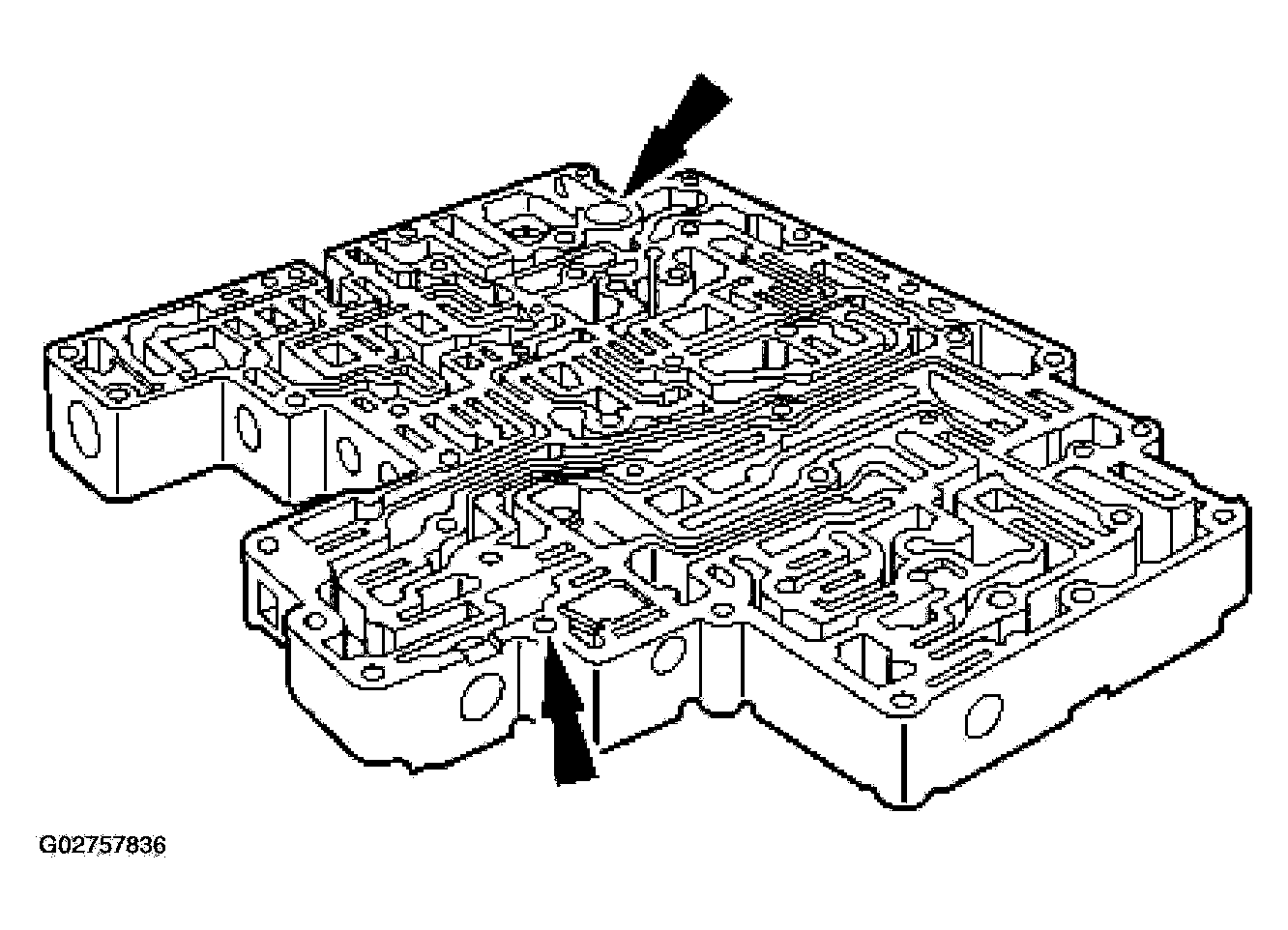

Fig 6: Removing Converter Drain Back Valve
Courtesy of FORD MOTOR CO.
Remove the main control valve body cover plate.
1. Remove the 13 bolts.
2. Remove the valve body cover plate and gasket.

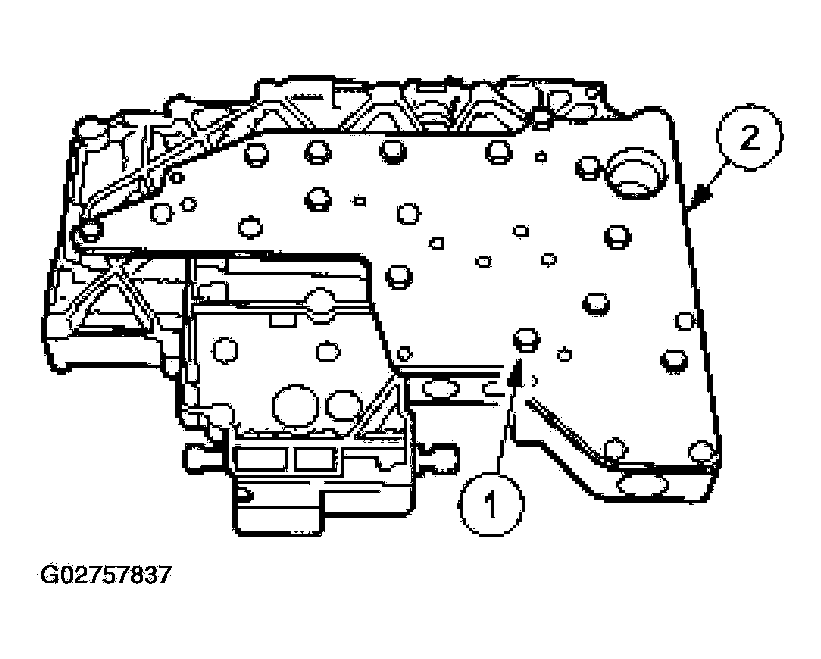

Fig 7: Removing Valve Body Cover Plate
Courtesy of FORD MOTOR CO.
