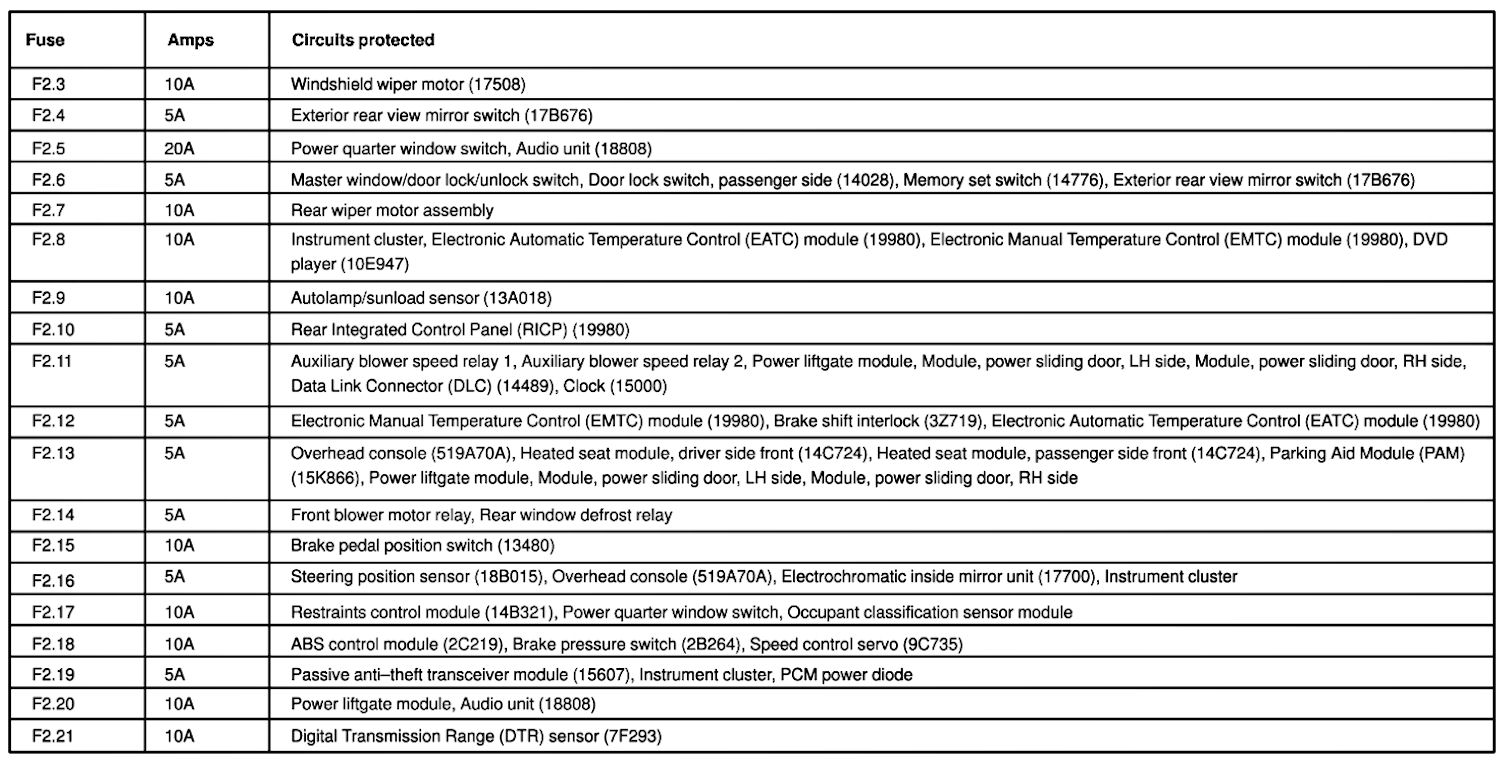

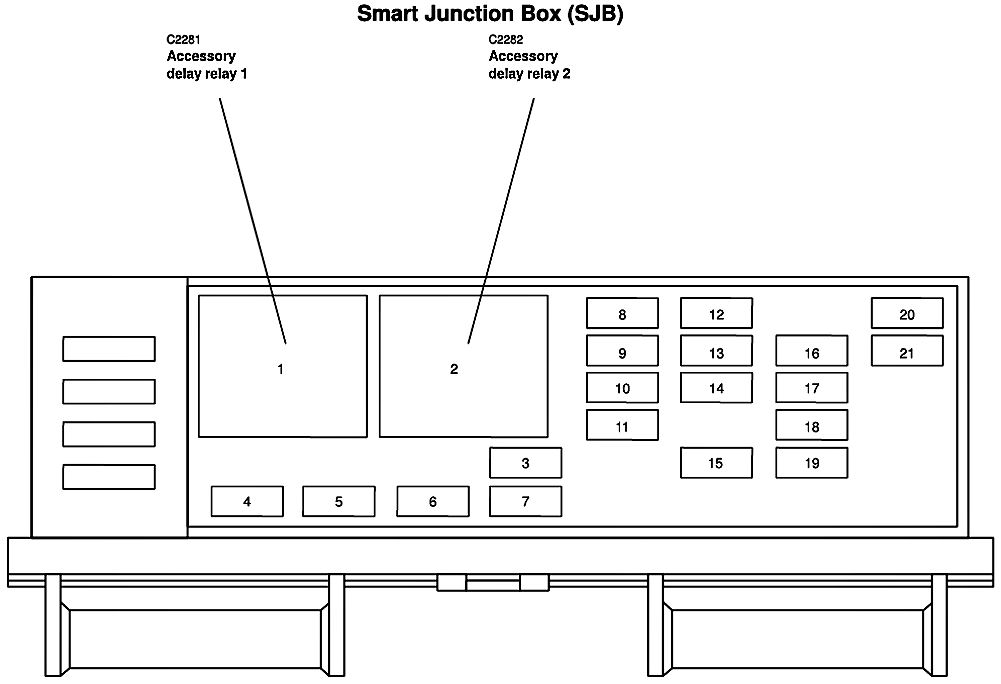

Smart Junction Box (SJB)













Note: The fuse panel is located below and to the left of the steering wheel by the brake pedal.
