Function Selector Switch Assembly C294a

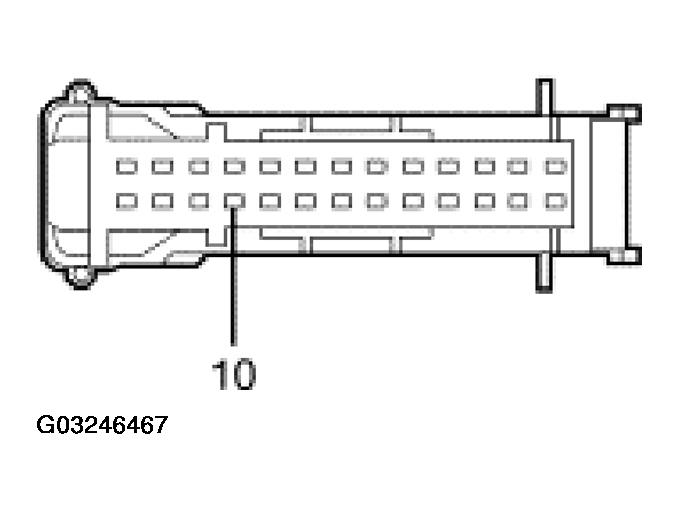

FUNCTION SELECTOR SWITCH ASSEMBLY C294A

G03246467
Pin Number(s) Circuit Designation/Description Normal Condition/Measurement
10 1426 (PK) rear window defrost switch output 5 ohms or less between connectors, 10,000 ohms or greater between circuit 1426 (PK) and ground.
