Pinpoint Test DR: Camshaft Position (CMP) Sensor: Introduction: Notes

NOTE: This pinpoint test is intended to diagnose the following:

• Camshaft Position (CMP) Sensor.
• CMP and SIGRTN circuits.
• Powertrain control module (PCM) (12A650).

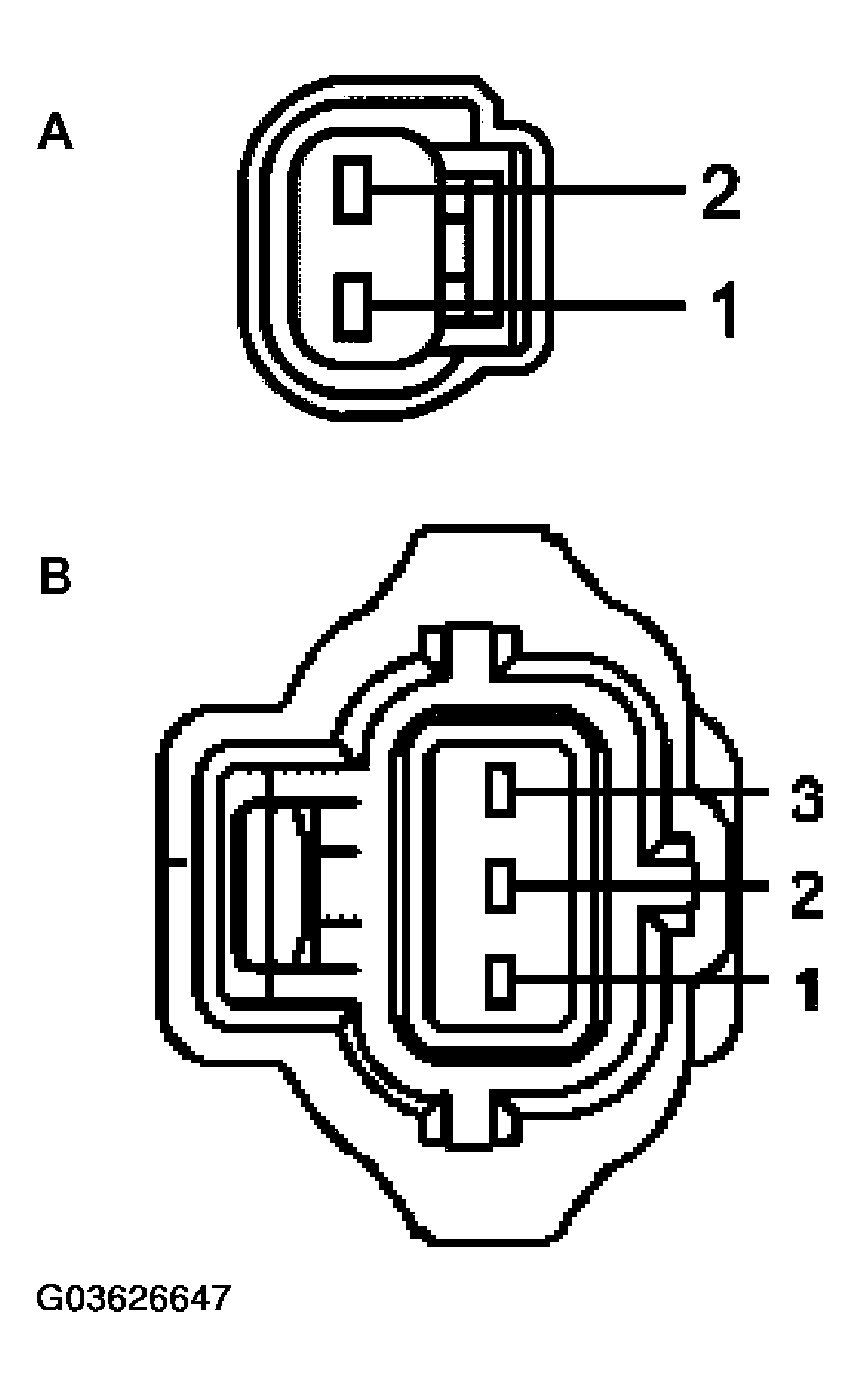

Fig 1: Identifying Camshaft Position (CMP) Sensor Connector (1 Of 3)

Courtesy of FORD MOTOR CO.

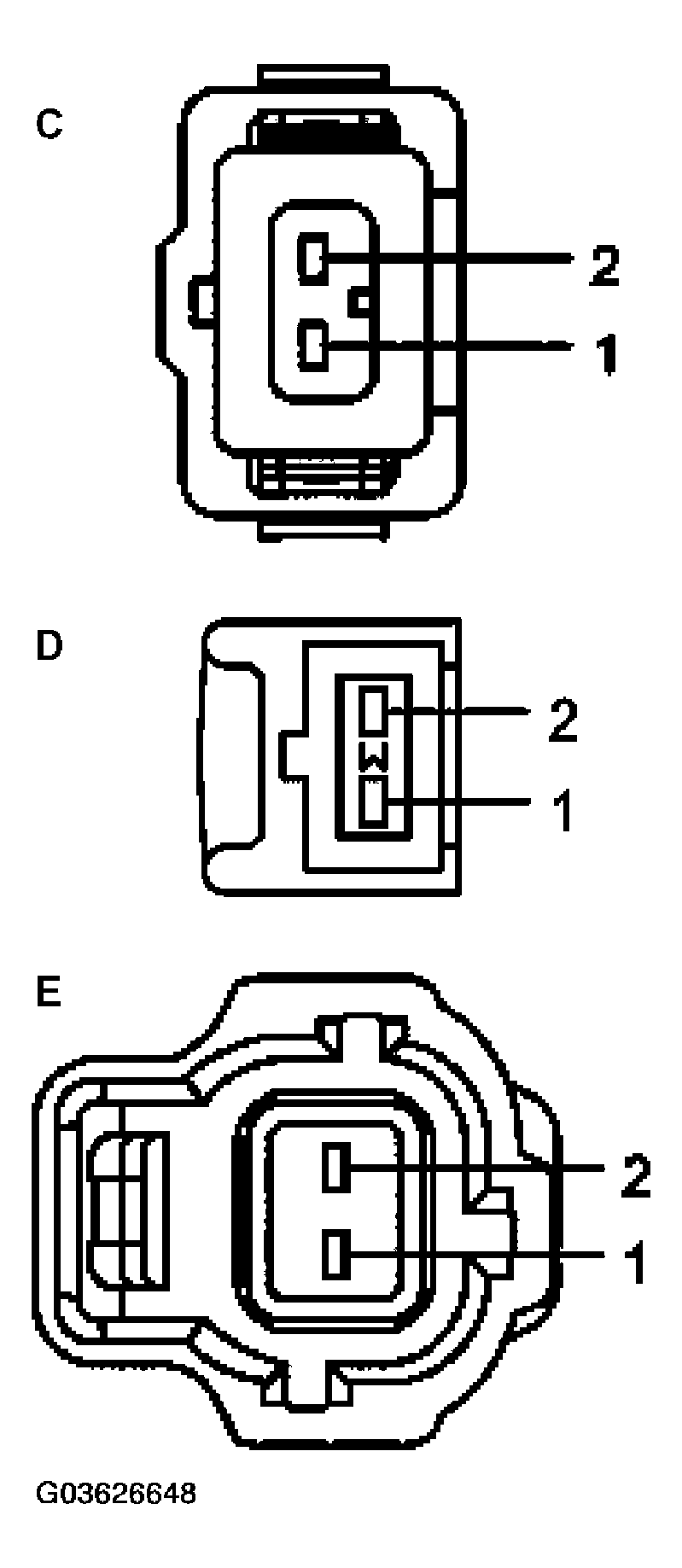

Fig 2: Identifying Camshaft Position (CMP) Sensor Connector (2 Of 3)

Courtesy of FORD MOTOR CO.

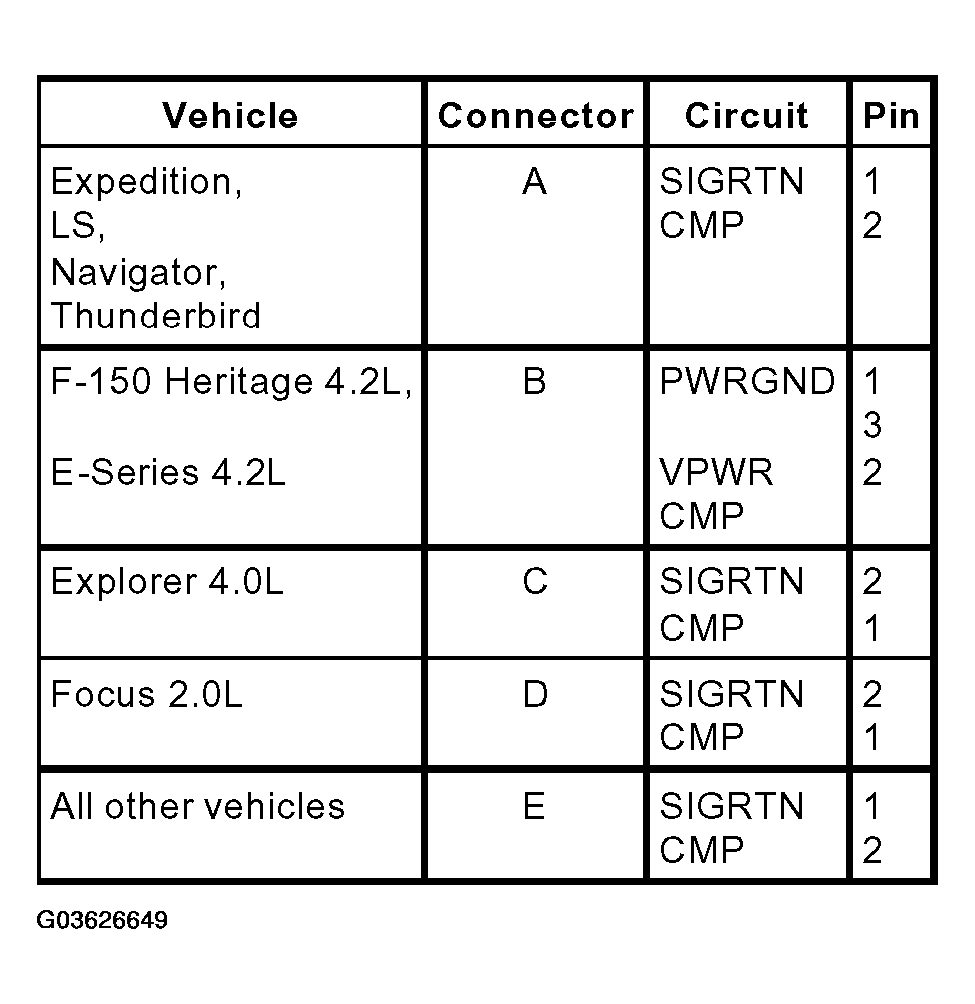

Fig 3: Identifying Camshaft Position (CMP) Sensor Connector (3 Of 3)

Courtesy of FORD MOTOR CO.

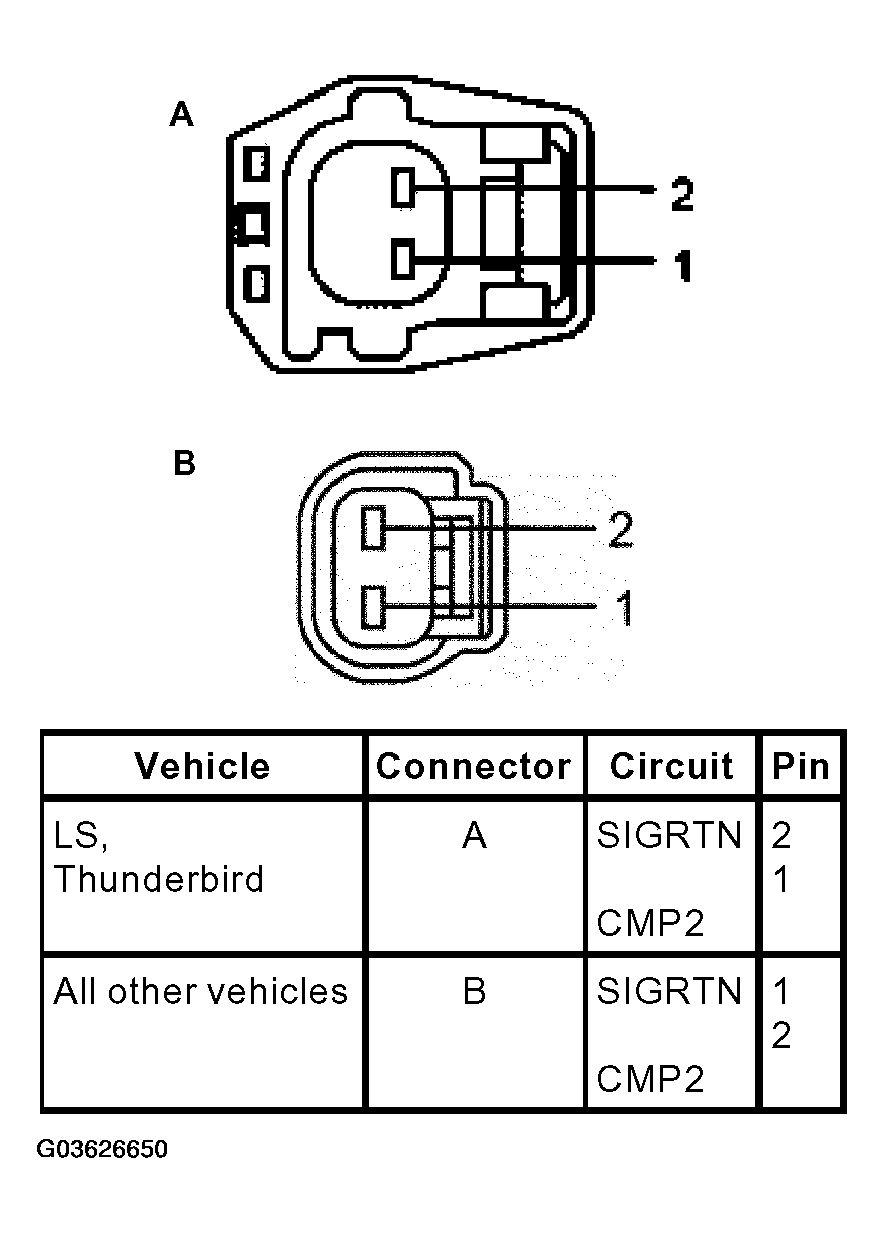

Fig 4: Camshaft Position 2 (CMP2) Sensor Connector

Courtesy of FORD MOTOR CO.
