Intake Air System

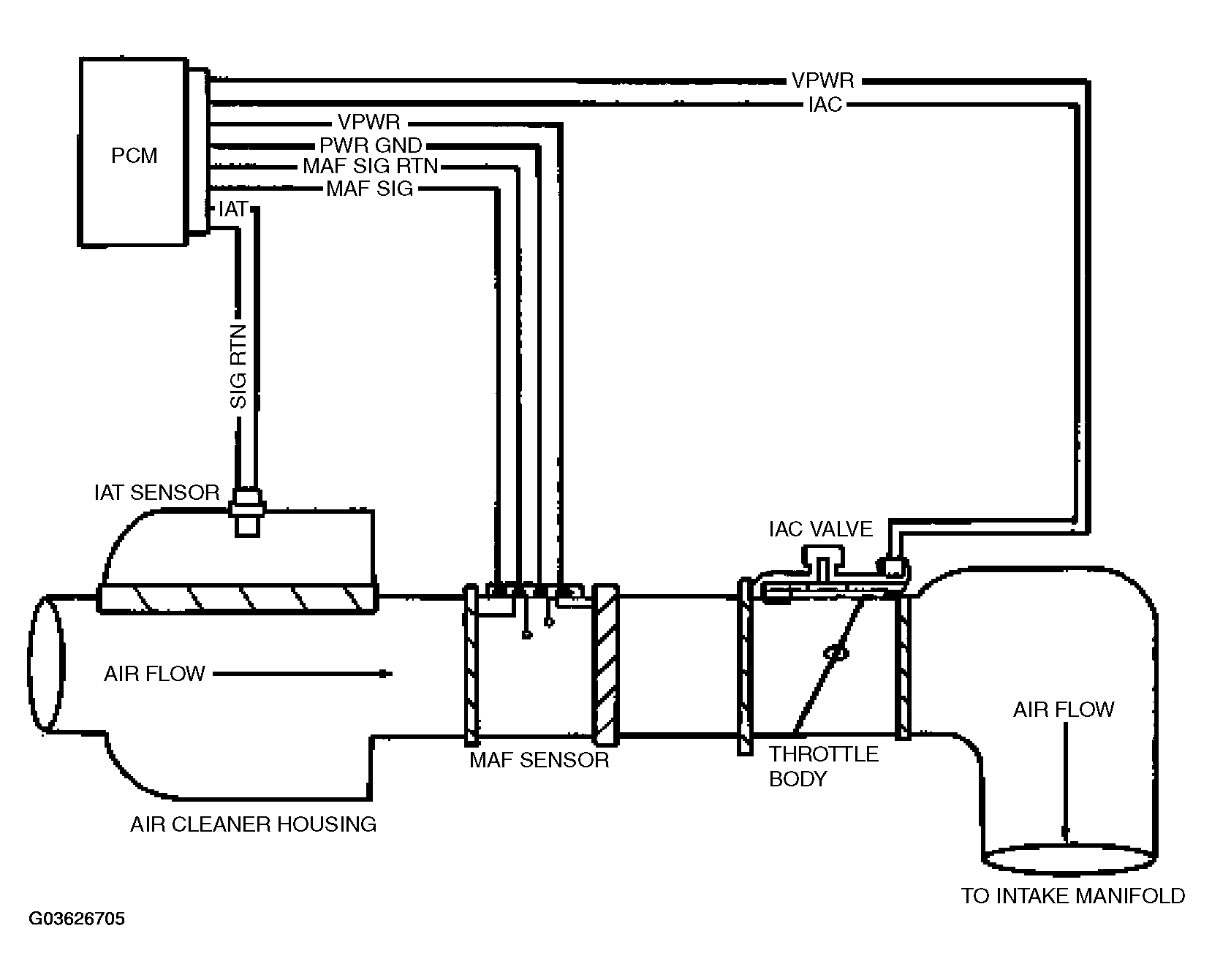

Fig 1: Identifying Intake Air System Components

Courtesy of FORD MOTOR CO.

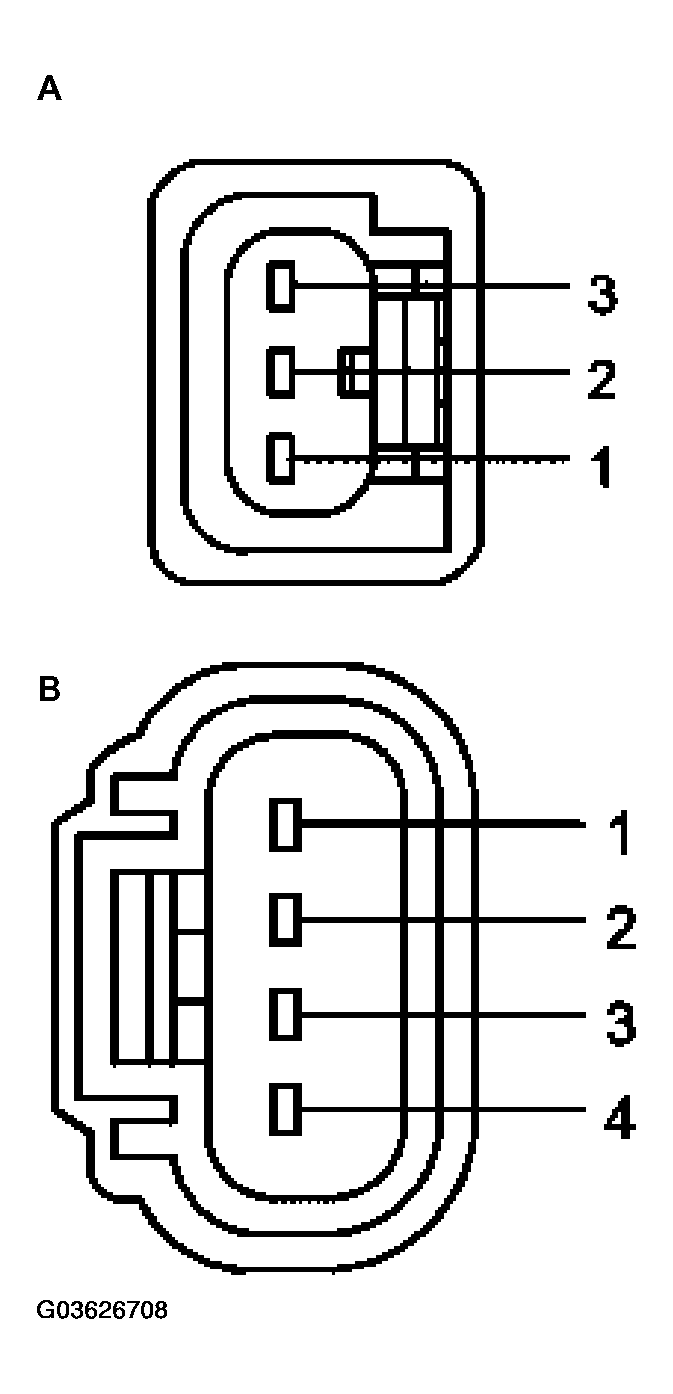

Fig 2: Identifying Intake Manifold Runner Control (IMRC) Actuator Connector (1 Of 2)

Courtesy of FORD MOTOR CO.

Fig 3: Identifying Intake Manifold Runner Control (IMRC) Actuator Connector (2 Of 2)

Courtesy of FORD MOTOR CO.

For most vehicles the IMRCM is integrated into the IMRC connector

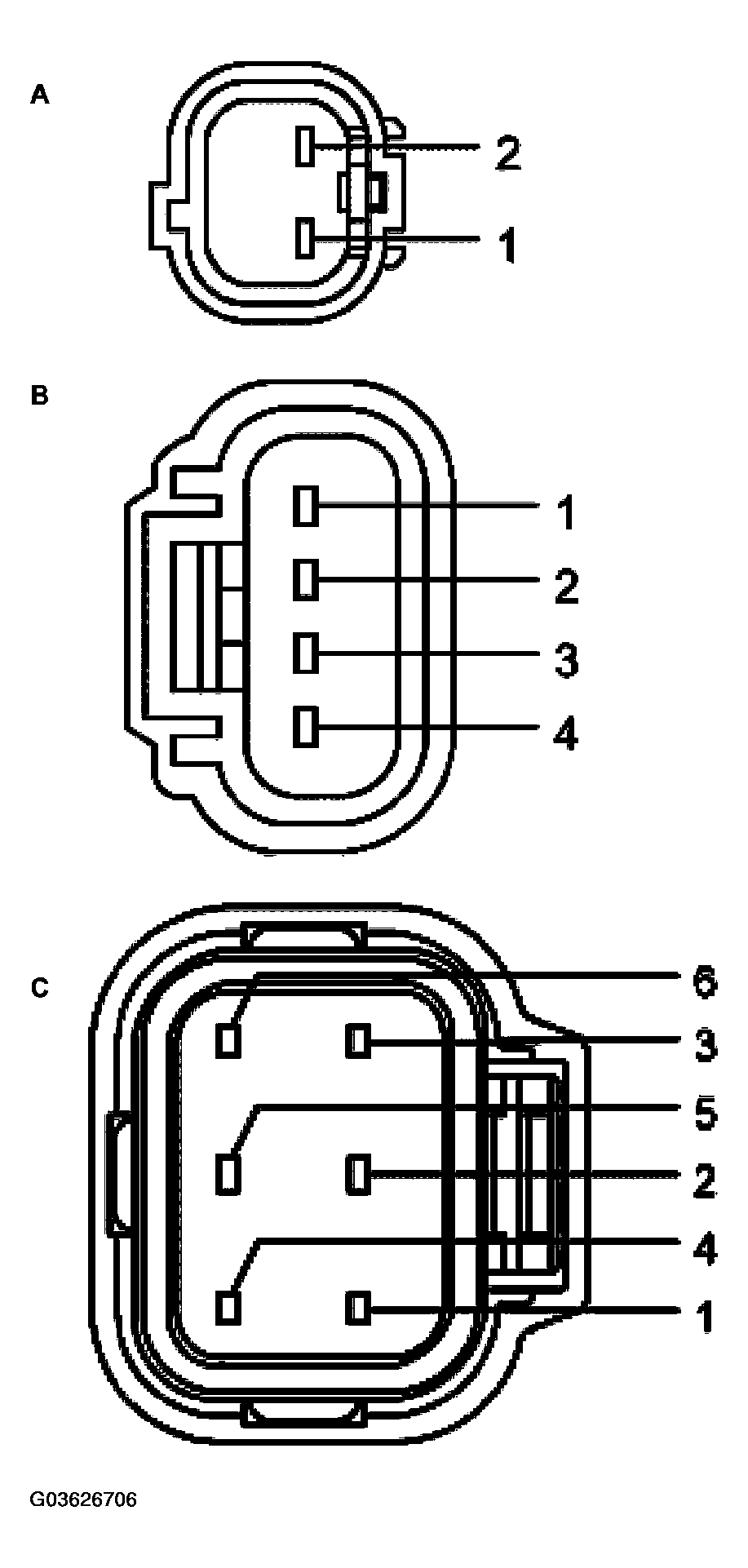

Fig 4: Identifying Intake Manifold Runner Control Monitor (IMRCM) Sensor Connector (1 Of 2)

Courtesy of FORD MOTOR CO.

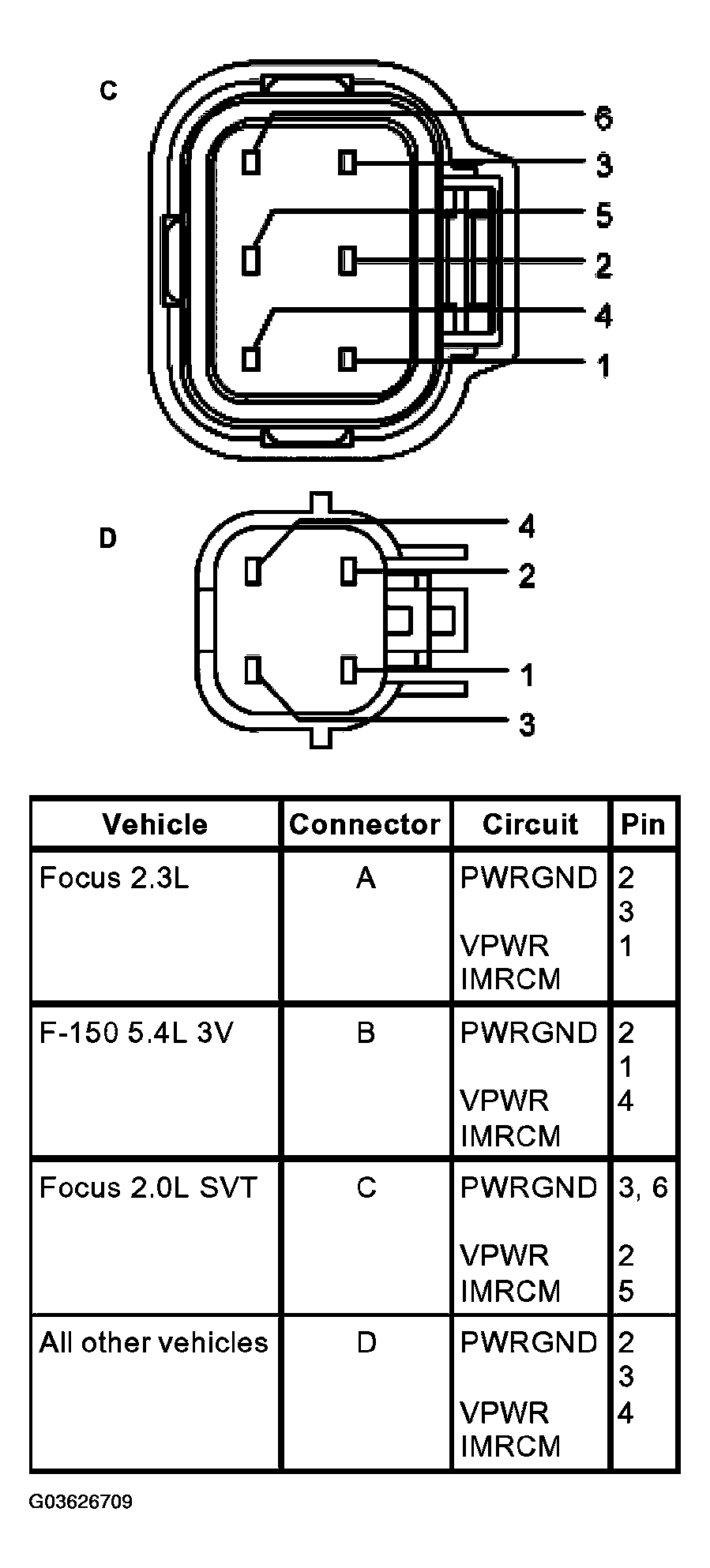

Fig 5: Identifying Intake Manifold Runner Control Monitor (IMRCM) Sensor Connector (2 Of 2)

Courtesy of FORD MOTOR CO.

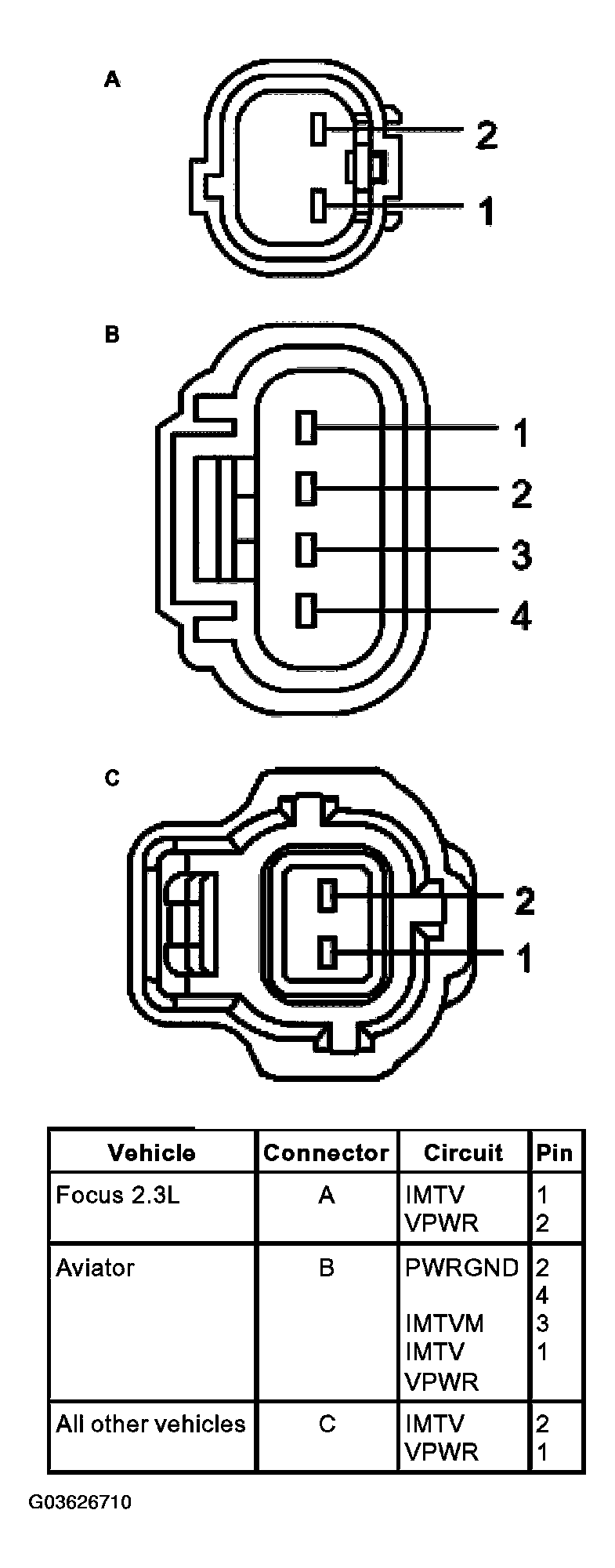

Fig 6: Intake Manifold Tuning Valve (IMTV) Actuator Connector

Courtesy of FORD MOTOR CO.

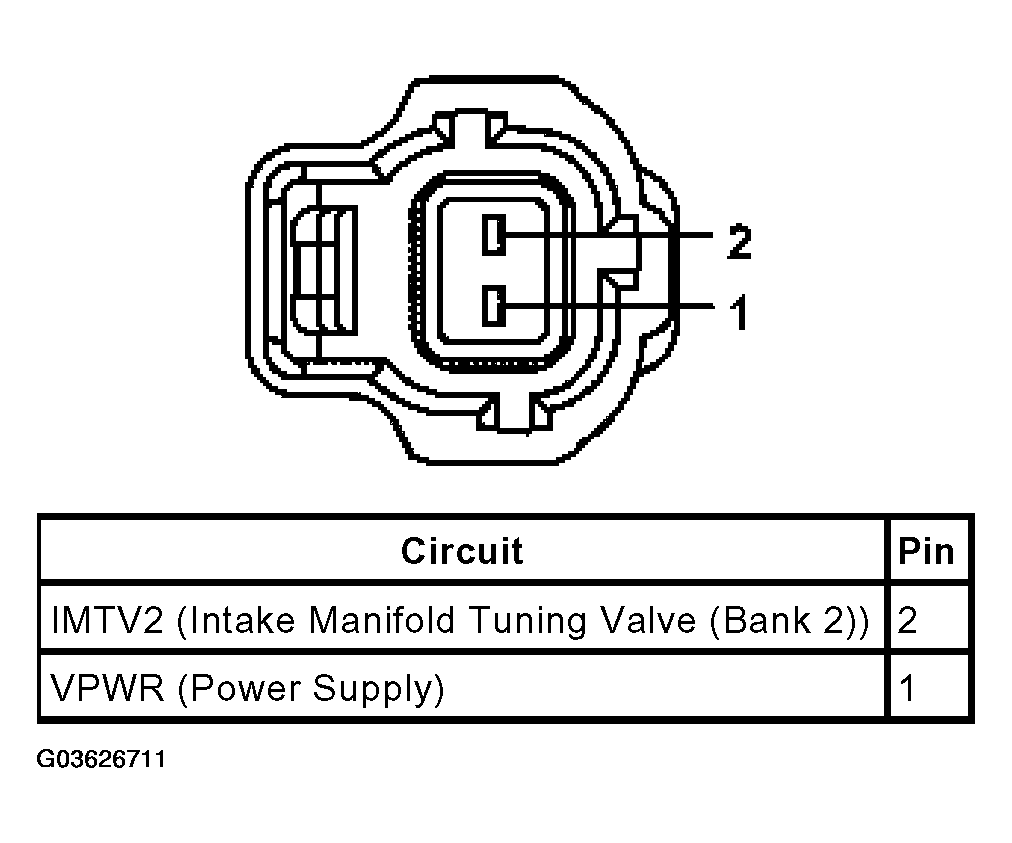

Fig 7: Intake Manifold Tuning Valve (Bank 2) (IMTV2) Actuator Connector

Courtesy of FORD MOTOR CO.
