Pinpoint Test C: The Smart Junction Box (SJB) Does Not Respond To The Diagnostic Tool

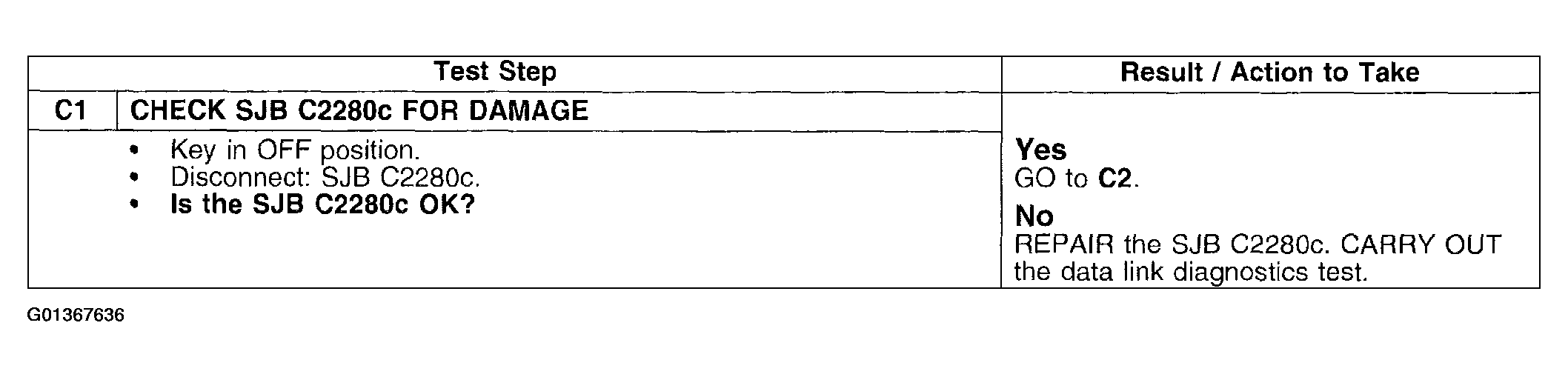

Fig 1: Pinpoint Test C: The Smart Junction Box (SJB) Does Not Respond To The Diagnostic Tool (Step C1)
G01367636Courtesy of FORD MOTOR CO.

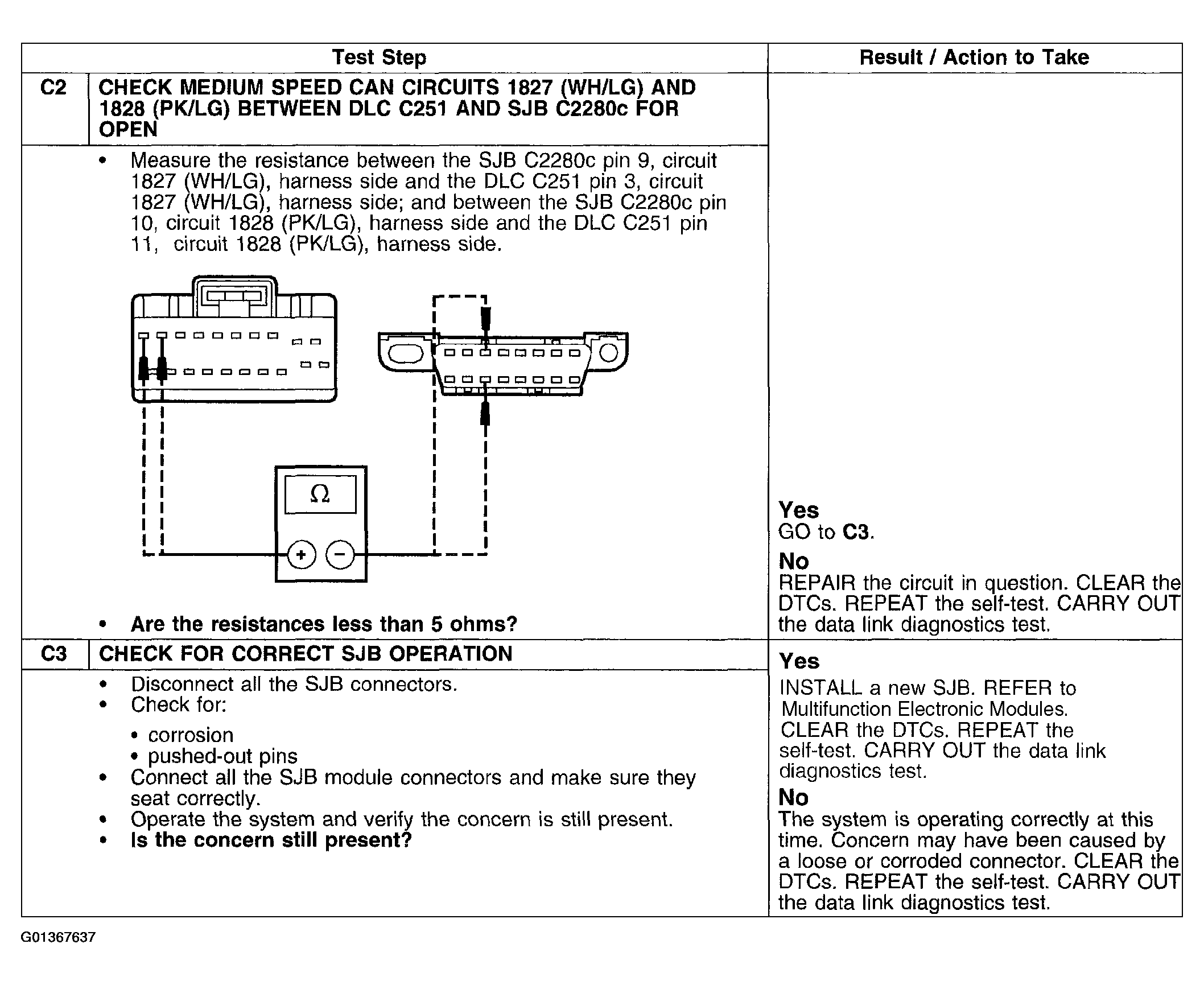

Fig 2: Pinpoint Test C: The Smart Junction Box (SJB) Does Not Respond To The Diagnostic Tool (Steps C2-C3)
G01367637Courtesy of FORD MOTOR CO.
