Smart Junction Box (SJB) C2280h
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

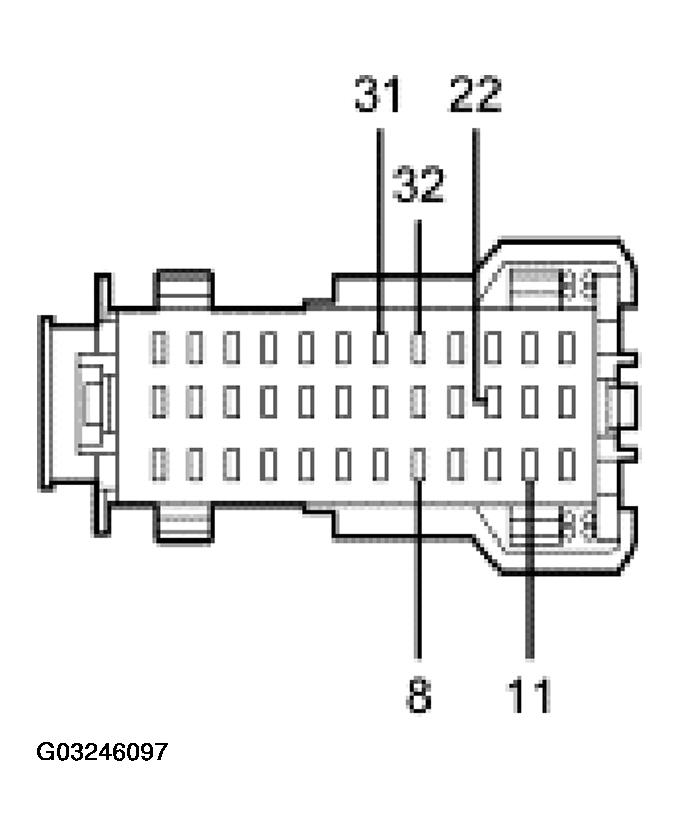

SJB C2280H CONNECTOR CIRCUIT REFERENCE
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 8 | 1205 (BK) SJB ground | Less than 5 ohms between the SJB connector and ground. |
| 11 | 1523 (DG) SJB power (overload protected) | 10 volts or greater at the SJB connector. |
| 22 | 1205 (BK) SJB ground | Less than 5 ohms between the SJB connector and ground. |
| 31 | 1524 (DB) SJB power (overload protected) | 10 volts or greater at the SJB connector. |
| 32 | 1052 (TN/BK) SJB power (overload protected) | 10 volts or greater at the SJB connector. |
