Pinpoint Test J: No Instrument Cluster Universal Asynchronous Receiver-Transmitter (UART) Based Protocol (UBP) Network Communication

WARNING: This page is about a different car, the 2004 Lincoln Navigator and 2004 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

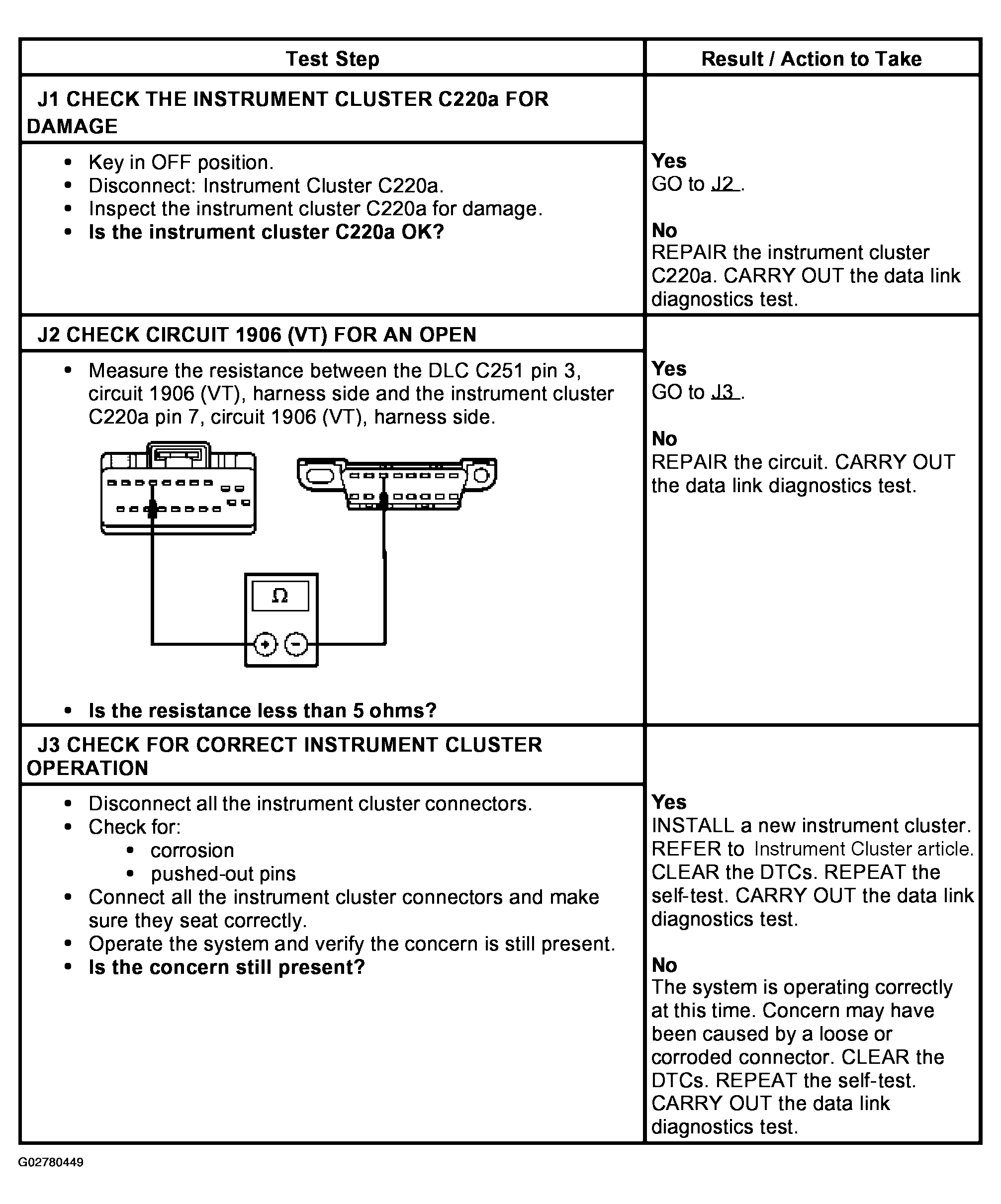

Fig 1: Pinpoint Test J: No Instrument Cluster Universal Asynchronous Receiver-Transmitter (UART) Based Protocol (UBP) Network Communication
G02780449Courtesy of FORD MOTOR CO.
