Pinpoint Test R: No Universal Asynchronous Receiver-Transmitter (UART) Based Protocol (UBP) Network Communication

WARNING: This page is about a different car, the 2004 Lincoln Navigator and 2004 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

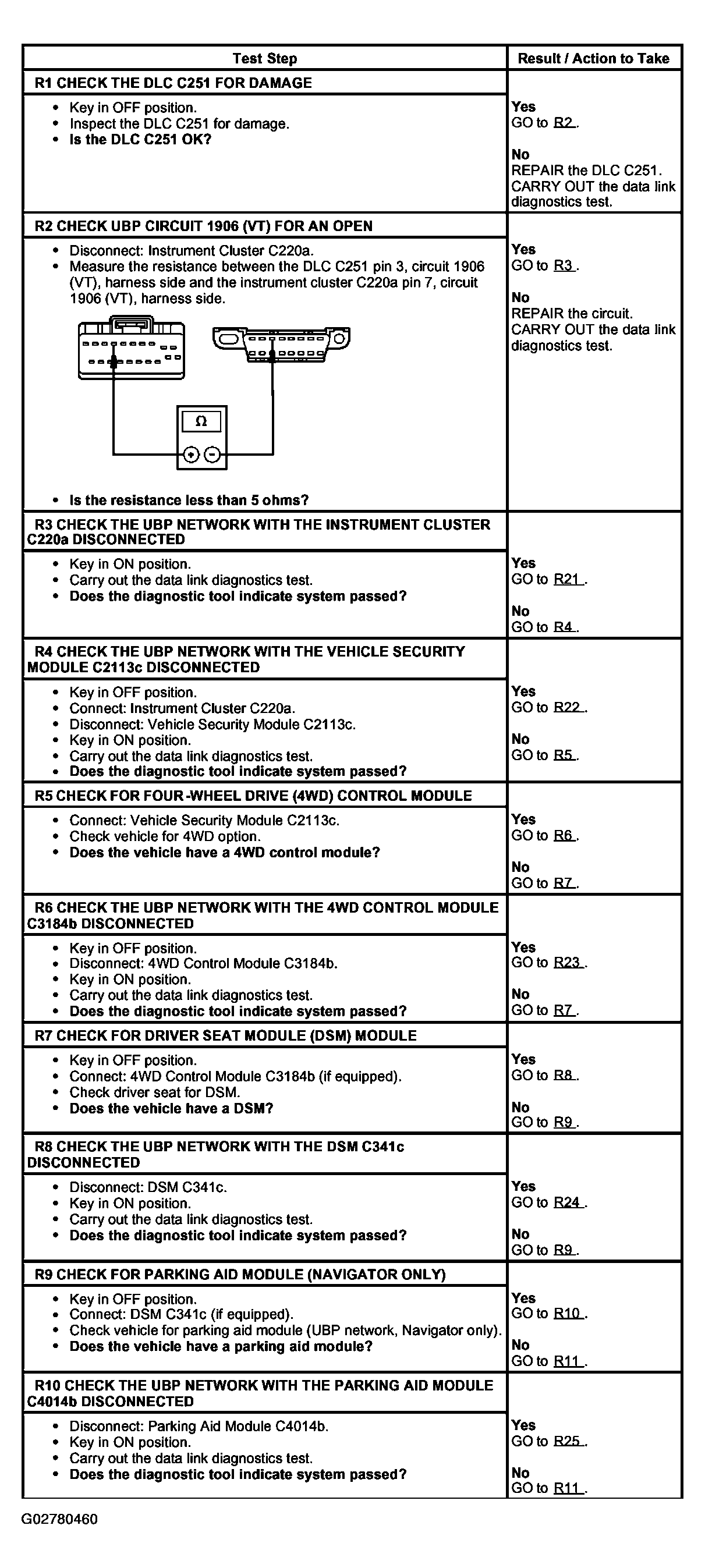

Fig 1: Pinpoint Test R: No Universal Asynchronous Receiver-Transmitter (UART) Based Protocol (UBP) Network Communication (Steps R1 - R10)
G02780460Courtesy of FORD MOTOR CO.

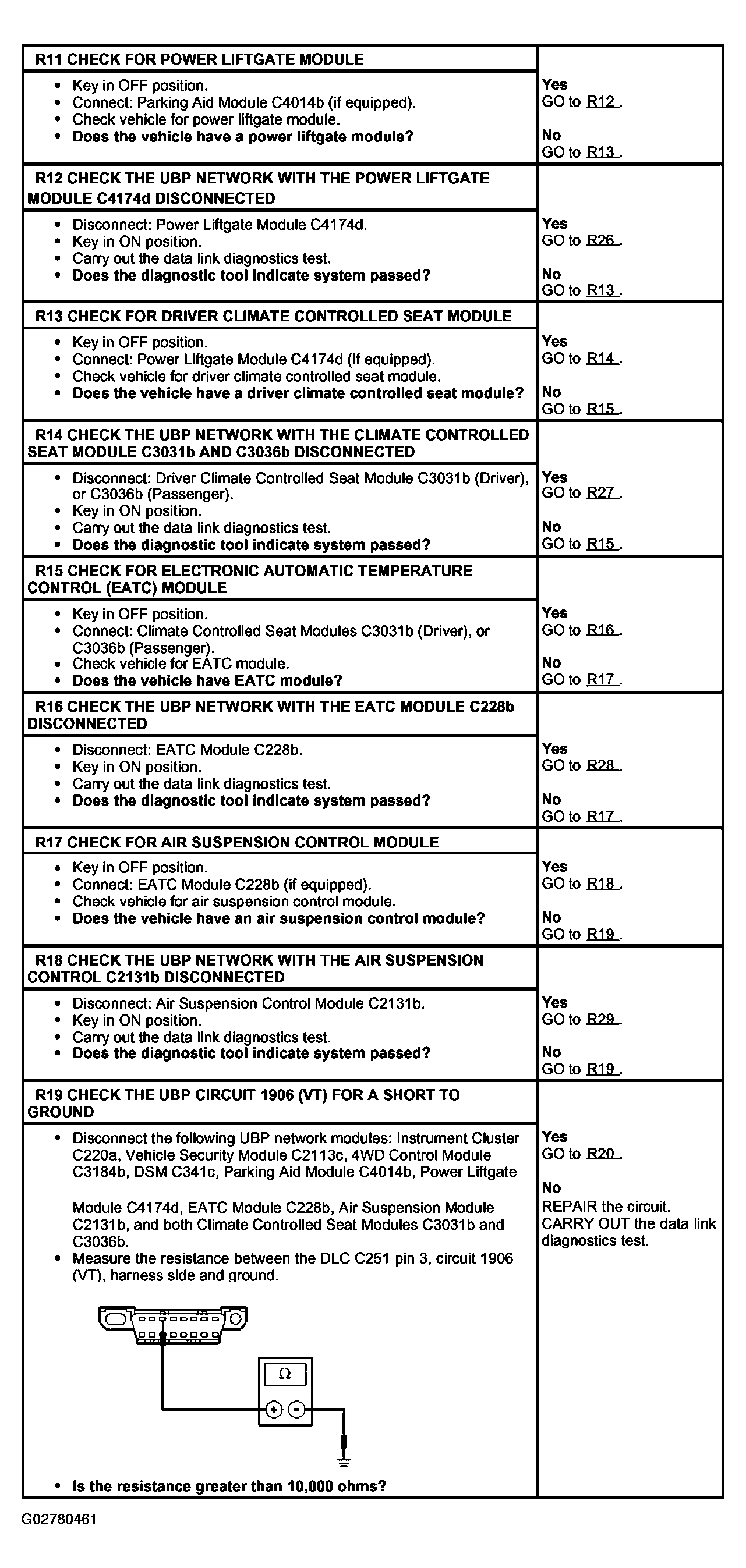

Fig 2: Pinpoint Test R: No Universal Asynchronous Receiver-Transmitter (UART) Based Protocol (UBP) Network Communication (Steps R11 - R19)
G02780461Courtesy of FORD MOTOR CO.

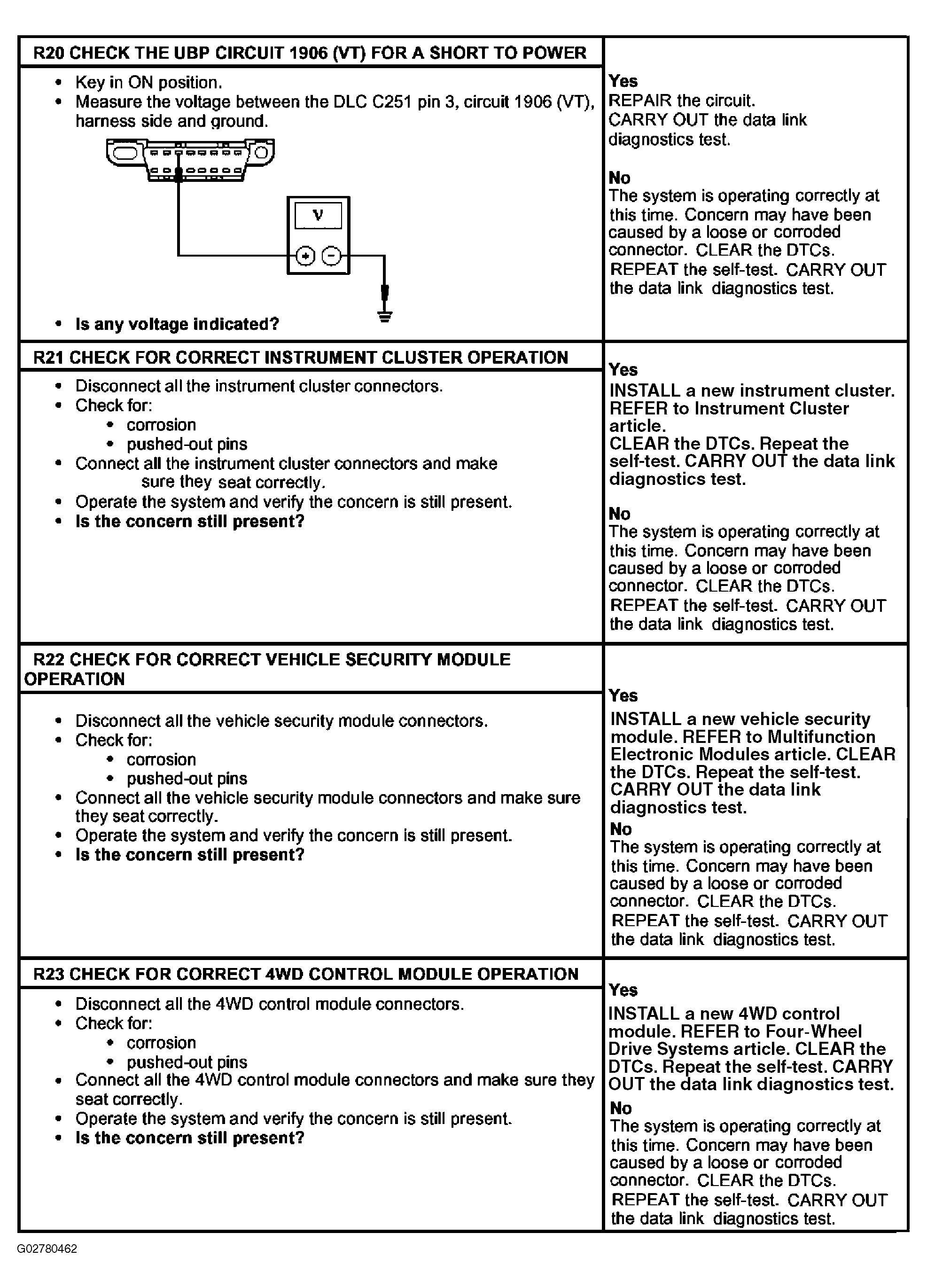

Fig 3: Pinpoint Test R: No Universal Asynchronous Receiver-Transmitter (UART) Based Protocol (UBP) Network Communication (Steps R20 - R23)
G02780462Courtesy of FORD MOTOR CO.

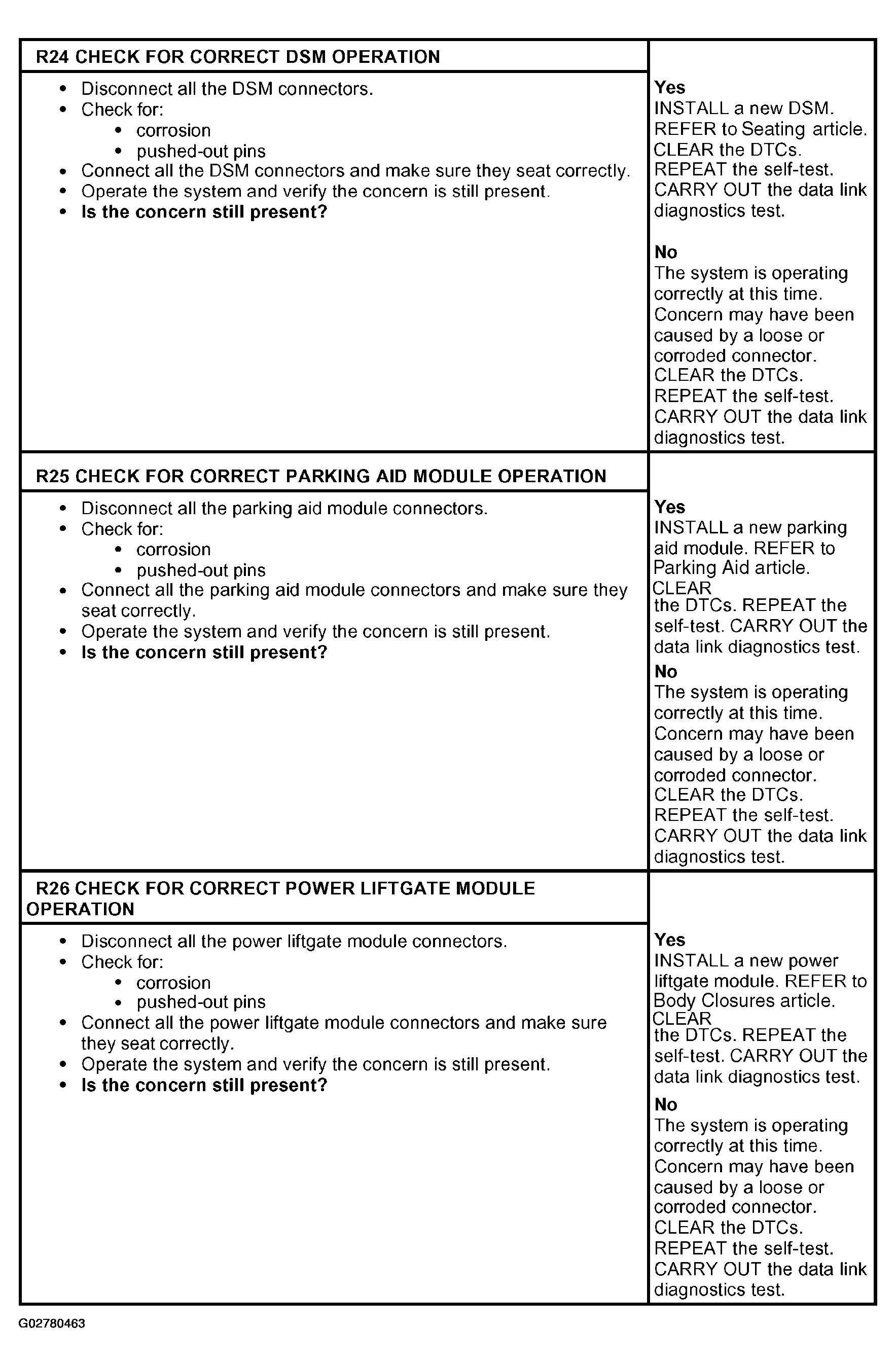

Fig 4: Pinpoint Test R: No Universal Asynchronous Receiver-Transmitter (UART) Based Protocol (UBP) Network Communication (Steps R24 - R26)
G02780463Courtesy of FORD MOTOR CO.

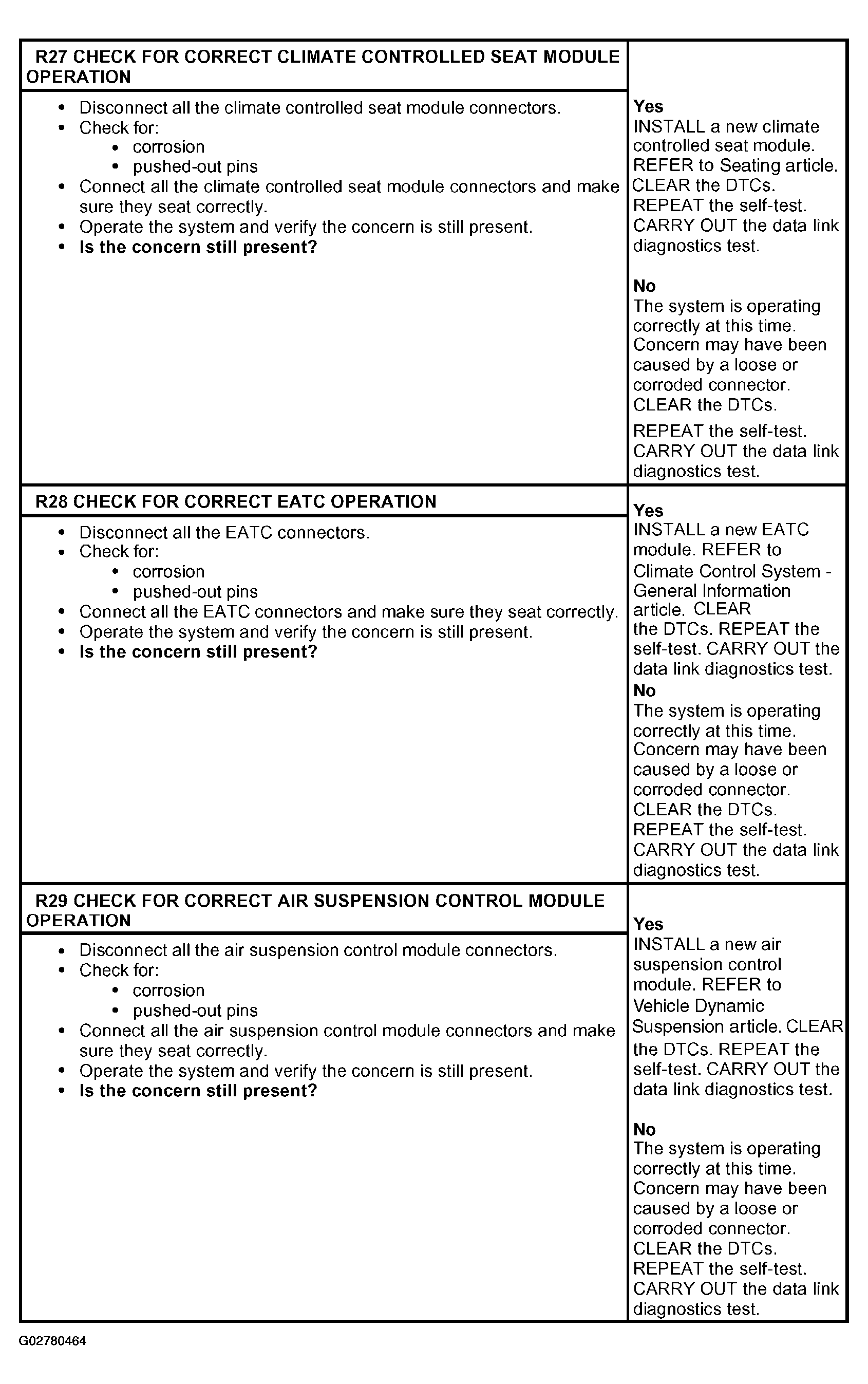

Fig 5: Pinpoint Test R: No Universal Asynchronous Receiver-Transmitter (UART) Based Protocol (UBP) Network Communication (Steps R27 - R29)
G02780464Courtesy of FORD MOTOR CO.
