Description And Operation
>>
Steering System
>>
System View - 3.0L 2V Engine (CII Pump)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System View - 3.0L 2V Engine (CII Pump)

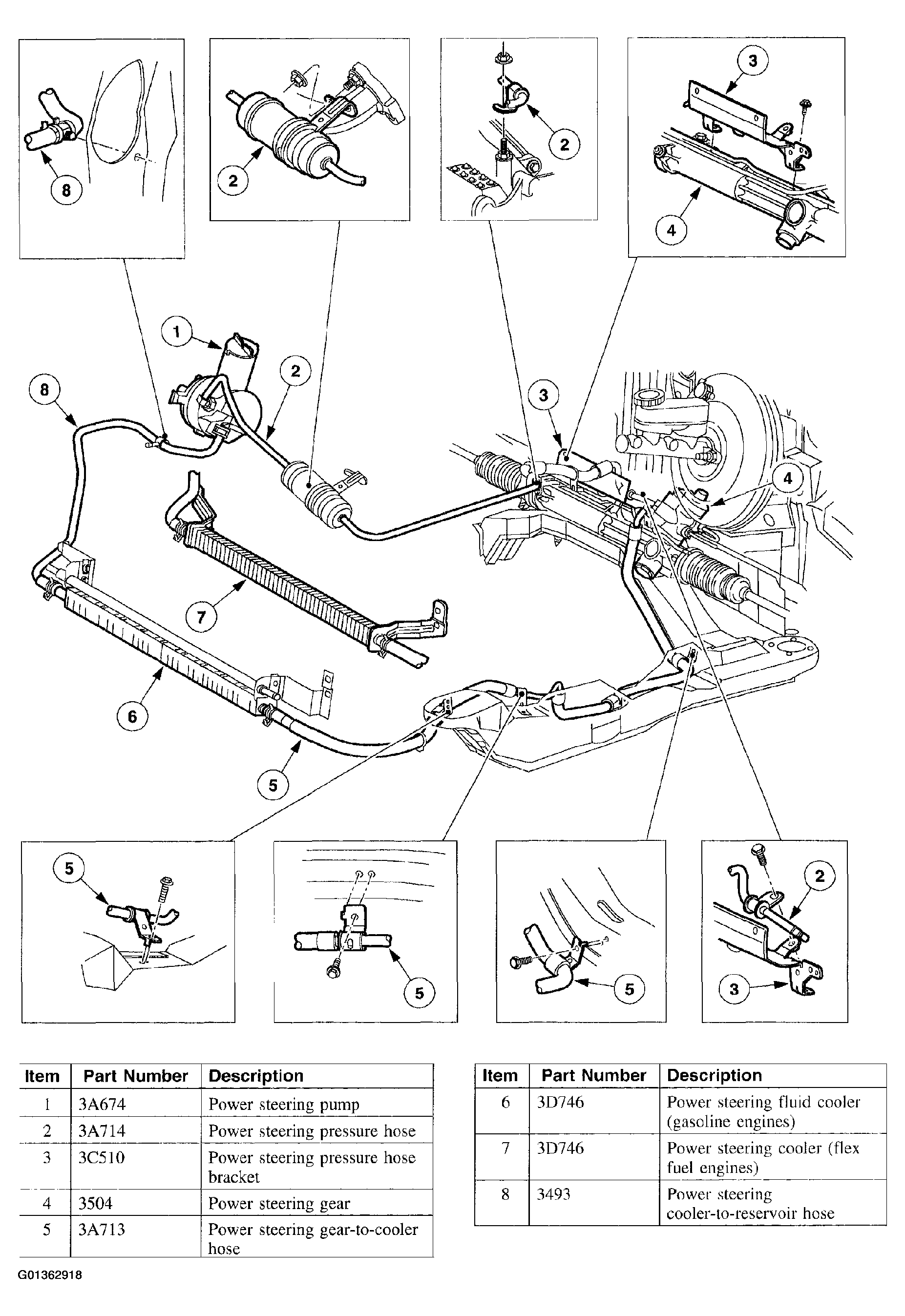

Fig 1: Identifying System View - 3.0L 2V Engine (CII Pump)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
