Pinpoint Test B: The Shift Control Linkage Is Out Of Correct Gear Relationship

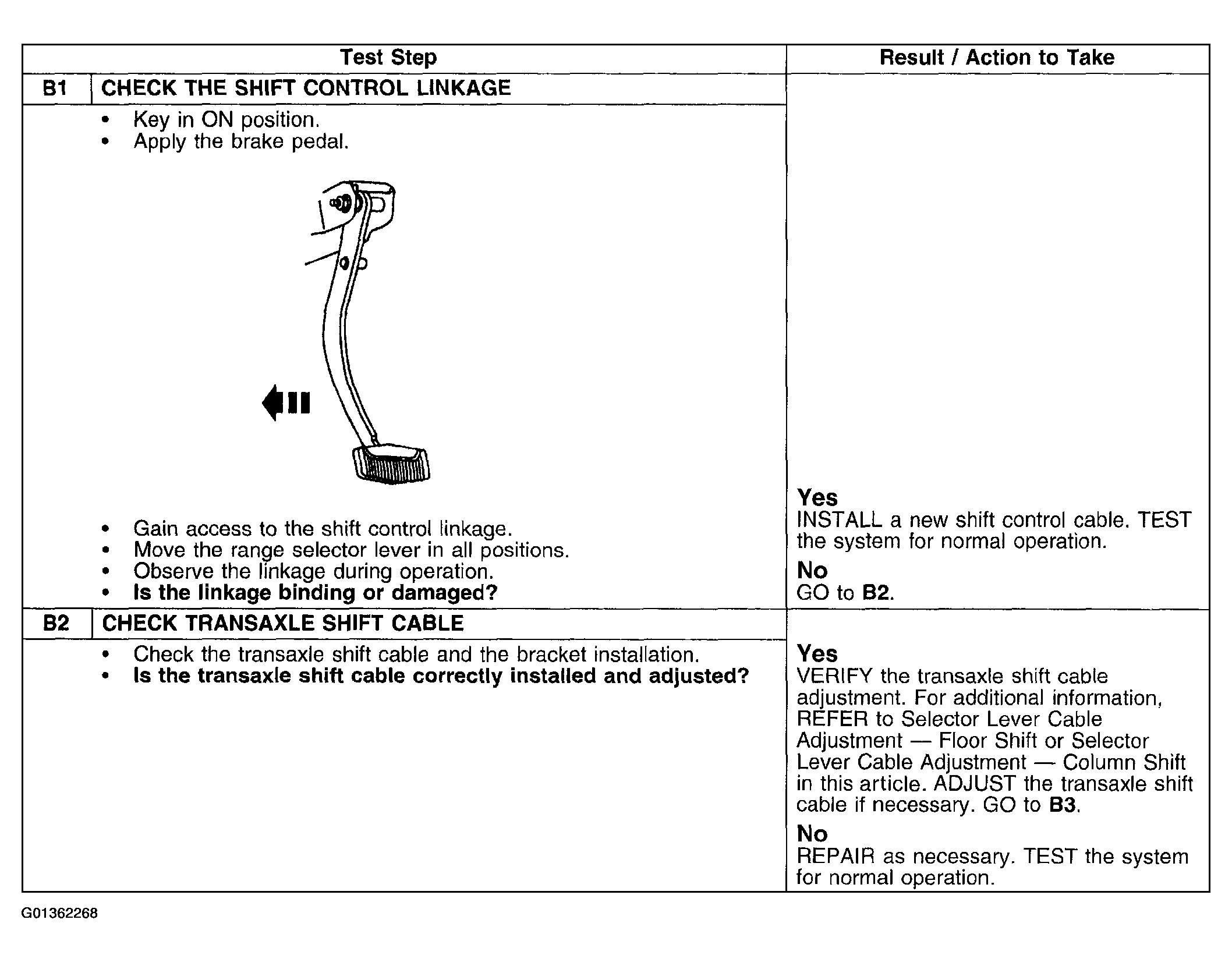

Fig 1: Pinpoint Test B: Shift Control Linkage Is Out Of Correct Gear Relationship (Step B1-B2)
G01362268Courtesy of FORD MOTOR CO.

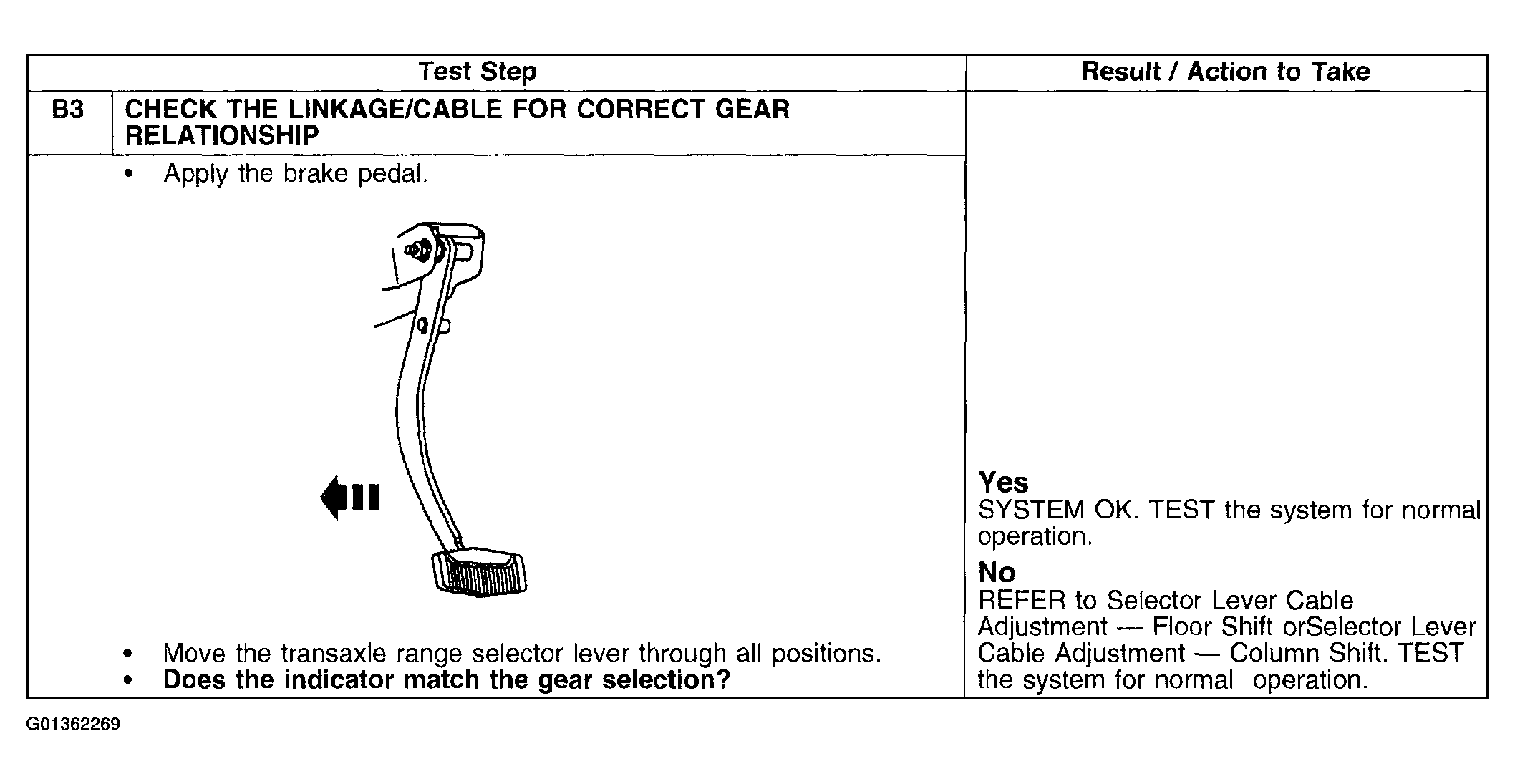

Fig 2: Pinpoint Test B: Shift Control Linkage Is Out Of Correct Gear Relationship (Step B3)
G01362269Courtesy of FORD MOTOR CO.
