Pinpoint Test A: The Anti-Lock Brake System (Abs) Module Does Not Respond To The Diagnostic Tool

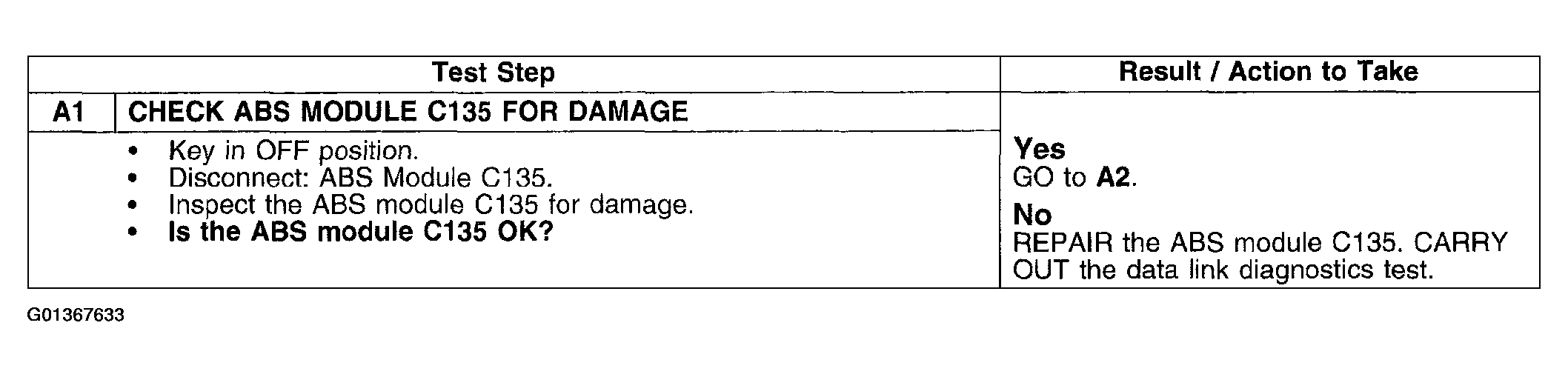

Fig 1: Pinpoint Test A: The Anti-Lock Brake System (ABS) Module Does Not Respond To The Diagnostic Tool (Step A1)
G01367633Courtesy of FORD MOTOR CO.

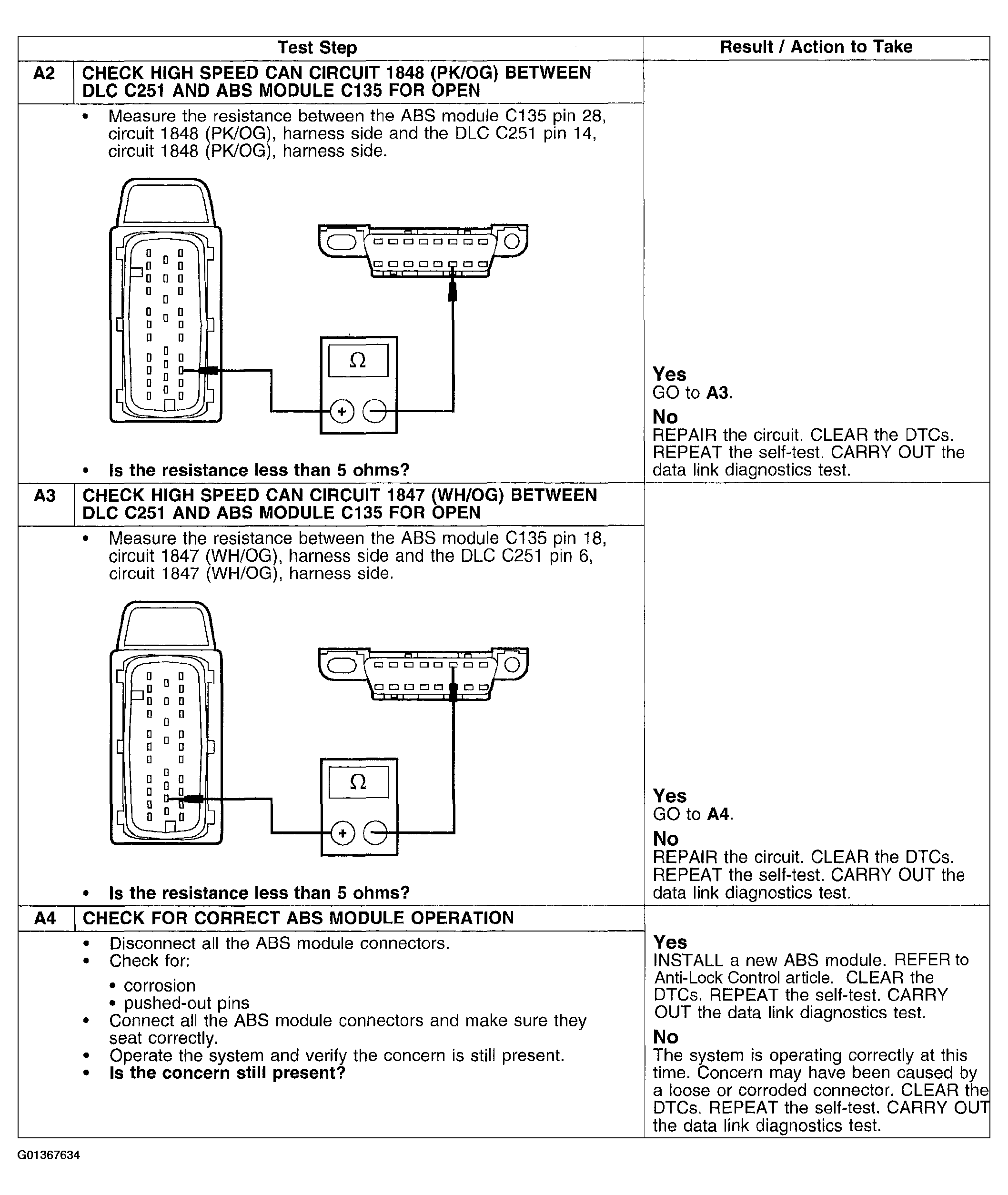

Fig 2: Pinpoint Test A: The Anti-Lock Brake System (ABS) Module Does Not Respond To The Diagnostic Tool (Steps A2-A4)
G01367634Courtesy of FORD MOTOR CO.
