Pinpoint Test B: The Electronic Automatic Temperature Control (EATC) Module Does Not Respond To The Diagnostic Tool

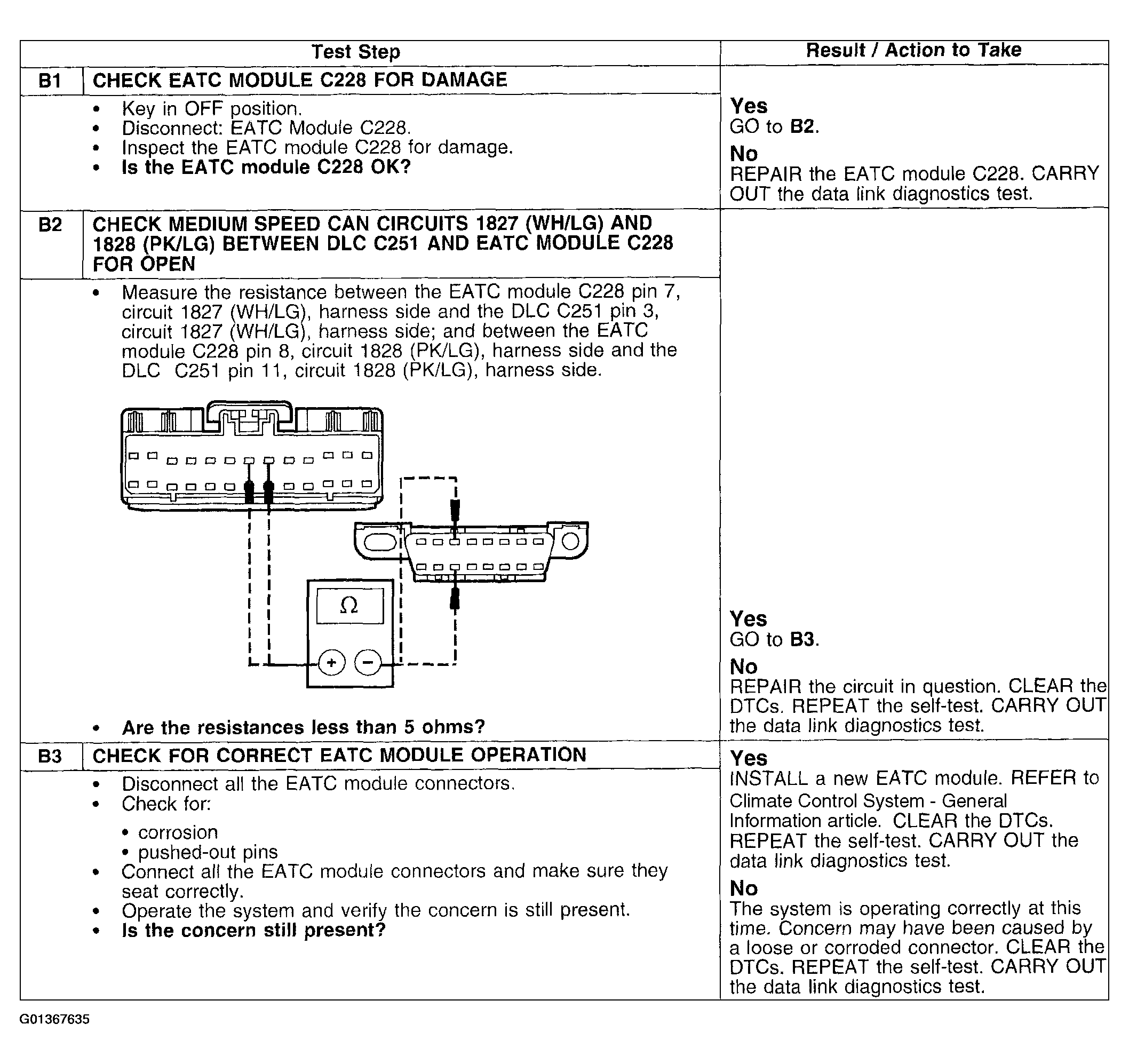

Fig 1: Pinpoint Test B: The Electronic Automatic Temperature Control (EATC) Module Does Not Respond To The Diagnostic Tool (Steps B1-B3)
G01367635Courtesy of FORD MOTOR CO.
