Pinpoint Test D: The Powertrain Control Module (Pcm) Does Not Respond To The Diagnostic Tool

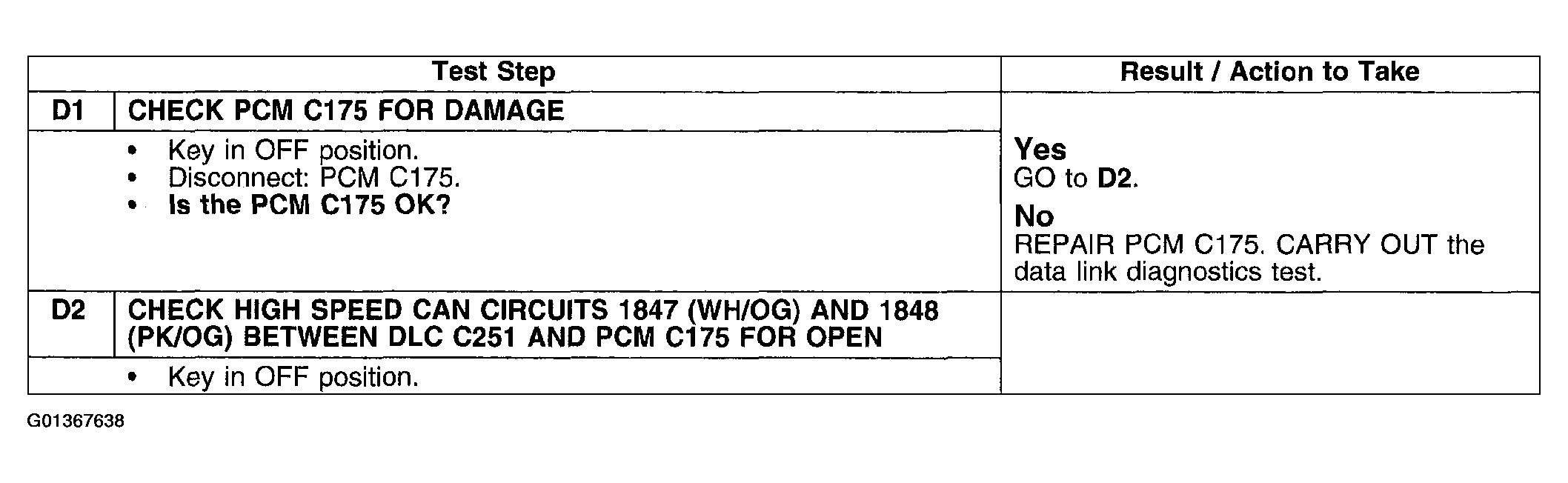

Fig 1: Pinpoint Test D: The Powertrain Control Module (PCM) Does Not Respond To The Diagnostic Tool (Steps D1-D2)
G01367638Courtesy of FORD MOTOR CO.

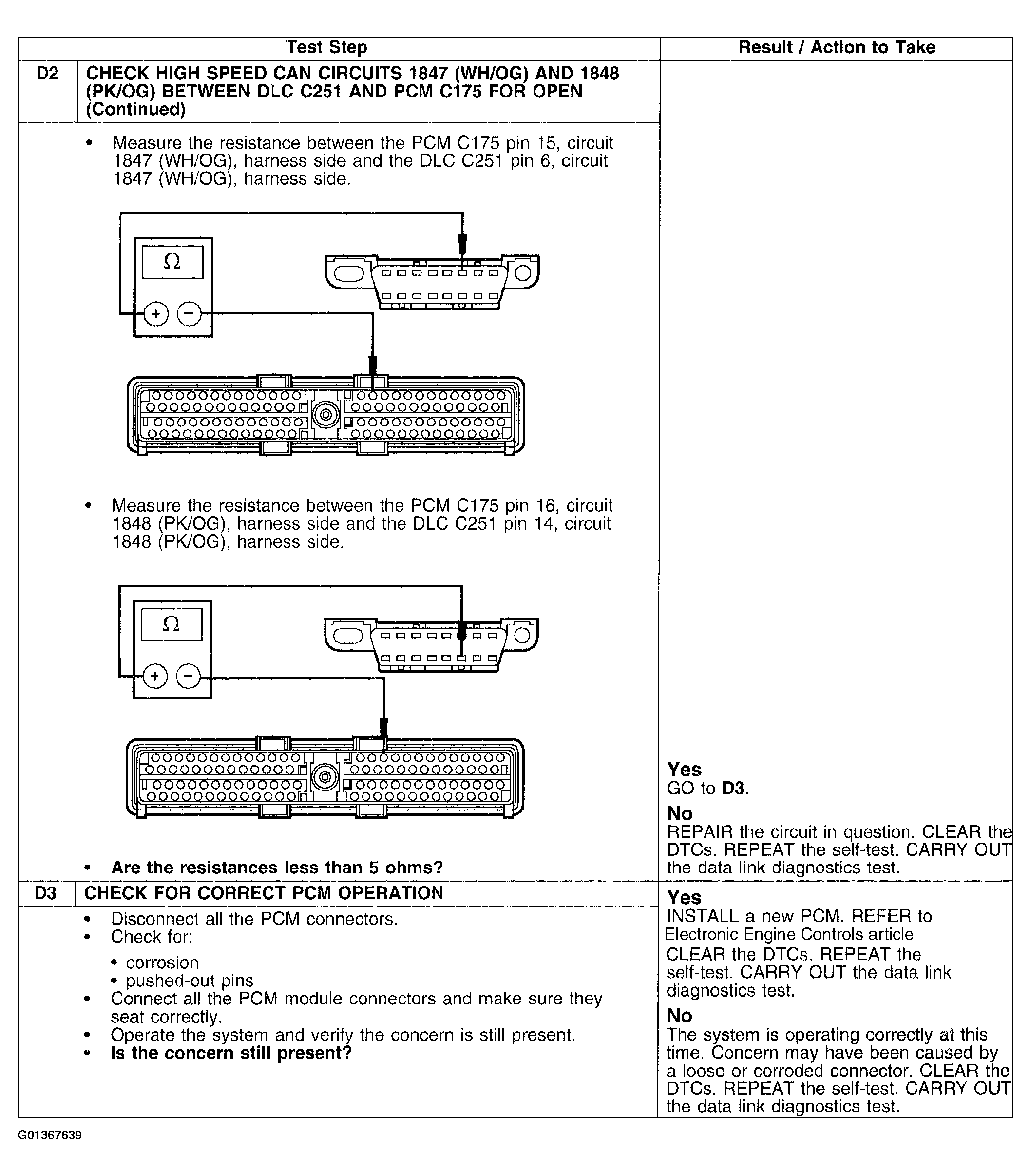

Fig 2: Pinpoint Test D: The Powertrain Control Module (PCM) Does Not Respond To The Diagnostic Tool (Steps D2 Cont.-D3)
G01367639Courtesy of FORD MOTOR CO.
