Test B

PINPOINT TEST B: THE LUGGAGE COMPARTMENT LID IS INOPERATIVE - FROM THE LUGGAGE COMPARTMENT LID RELEASE SWITCH AND REMOTE TRANSMITTER

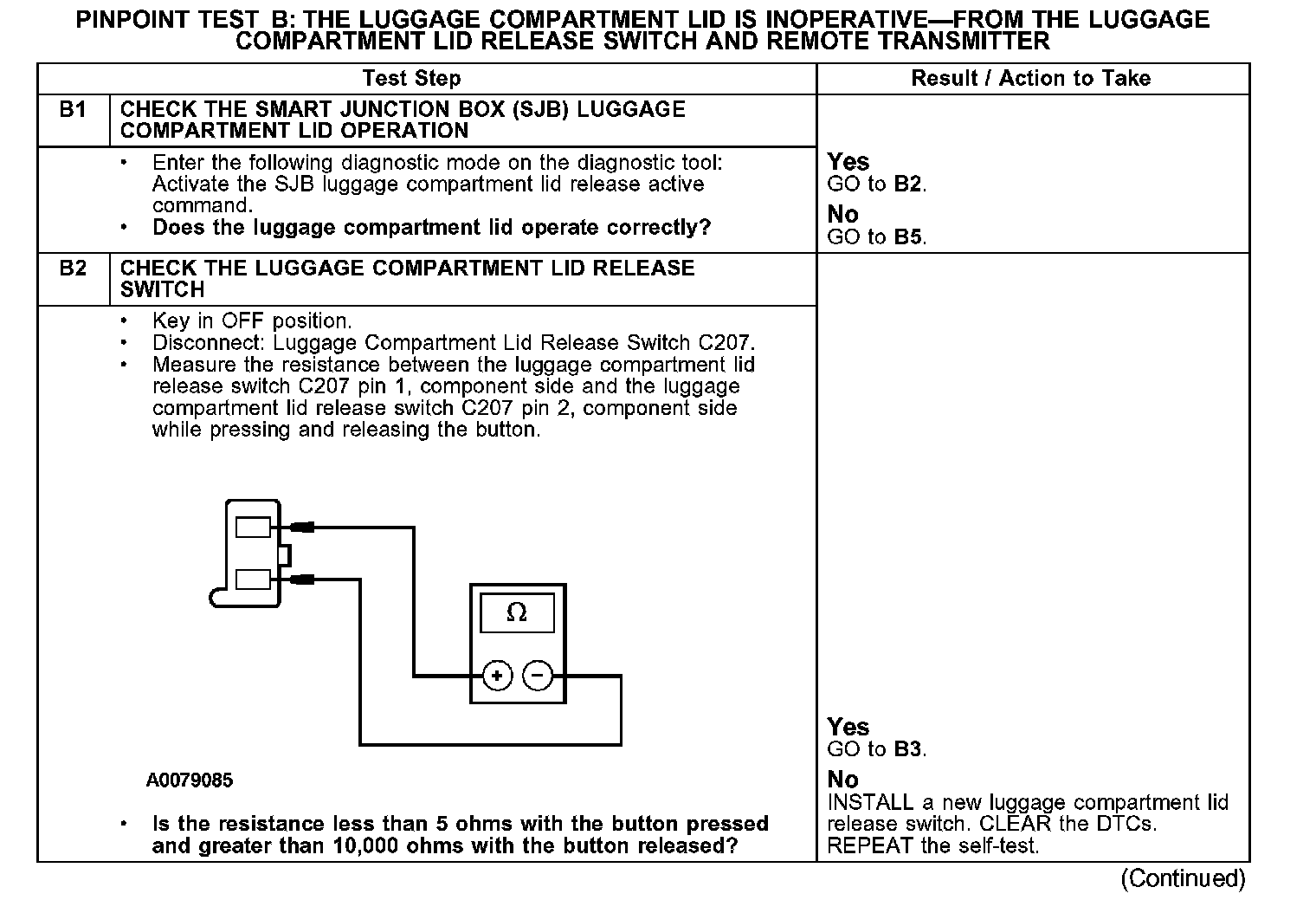

Test B1-B2:

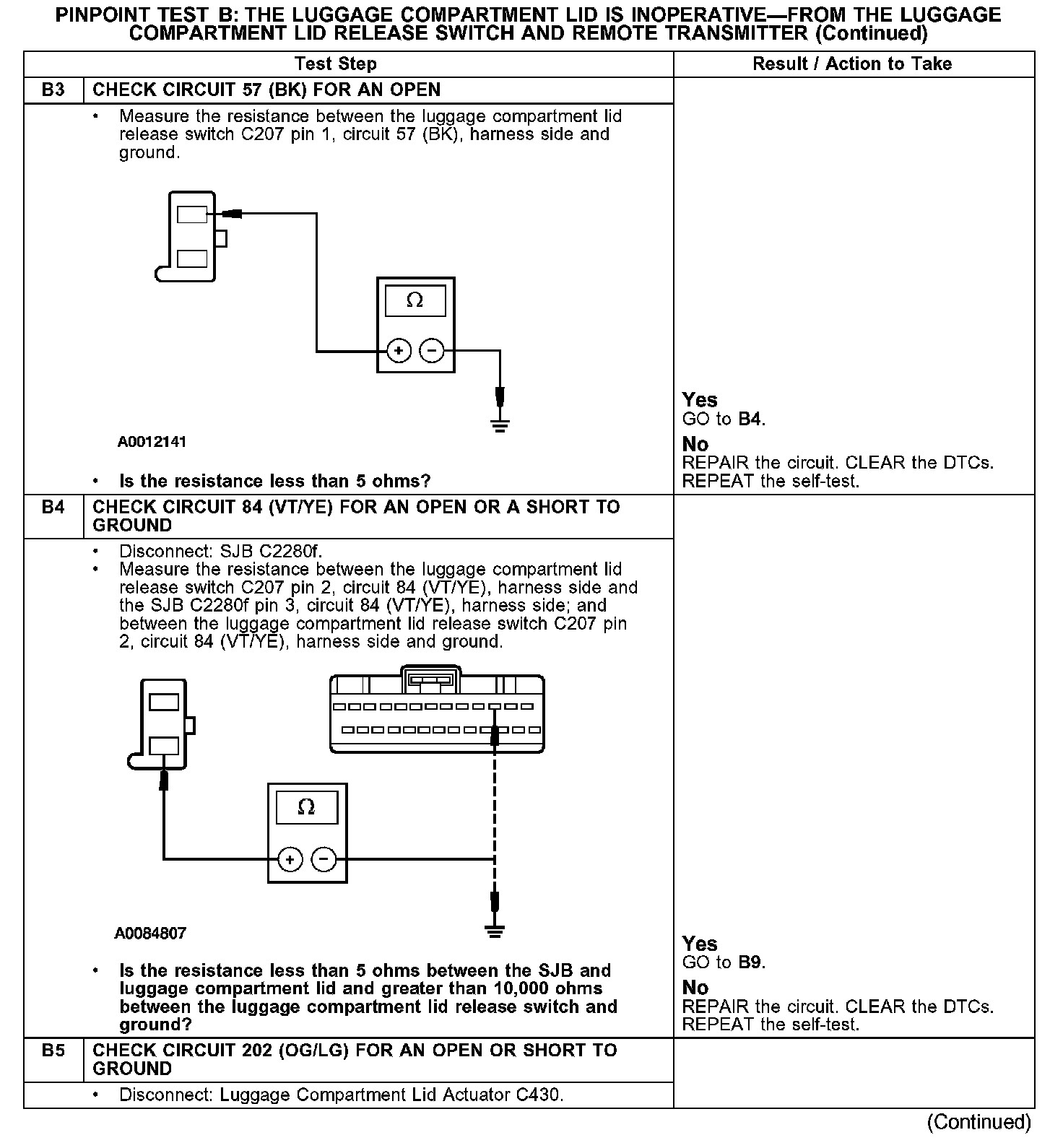

Test B3-B5:

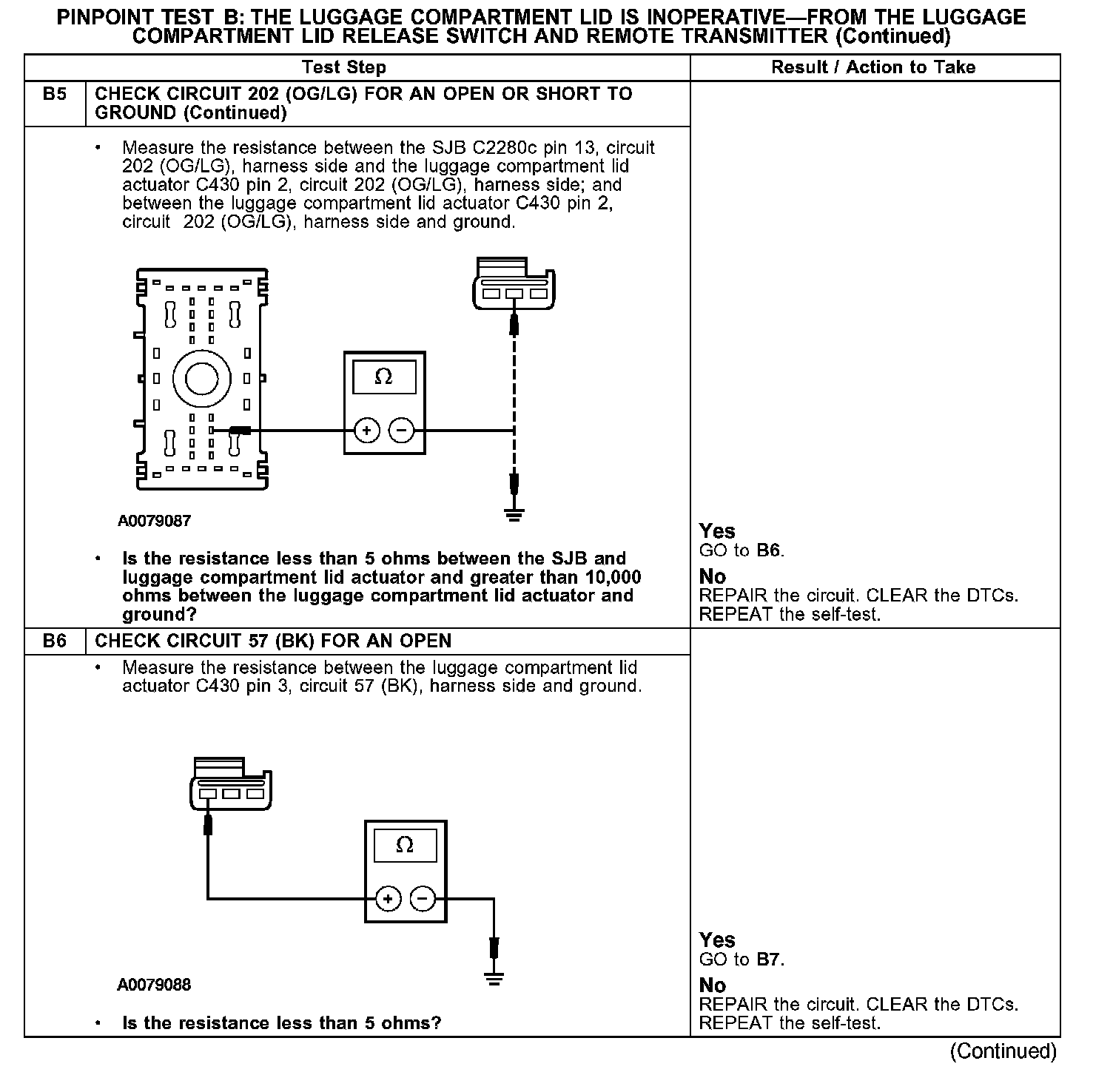

Test B5-B6:

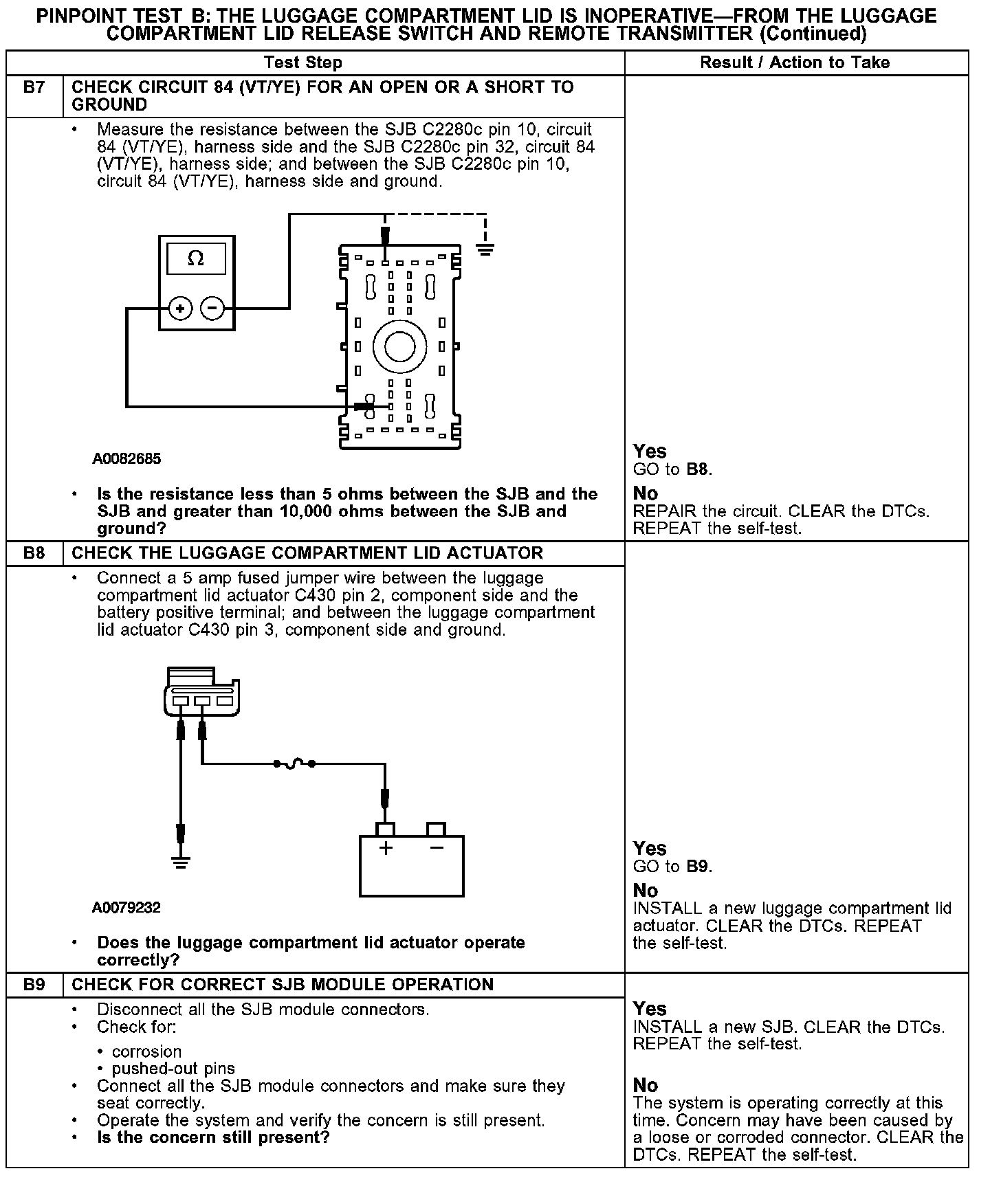

Test B7-B9:
