Pinpoint Test K: The Transaxle Control Module (TCM) Does Not Respond To The Diagnostic Tool

WARNING: The traction battery and charging system contains high voltage components and wiring. High-voltage insulated safety gloves and a face shield must be worn when carrying out any diagnostics on this vehicle. Failure to follow these instructions may result in severe personal injury or death.

K1 CHECK THE HIGH SPEED CAN CIRCUITS BETWEEN THE TCM AND THE DLC FOR AN OPEN
- Key in OFF position.
- Disconnect: TCM C1458a.
- Measure the resistance between the TCM C1458a-1, circuit 1908 (WH), harness side and the DLC C251-6, circuit 1908 (WH), harness side; and between the TCM C1458a-7, circuit 1909 (BK), harness side and the DLC C251-14, circuit 1909 (BK), harness side.

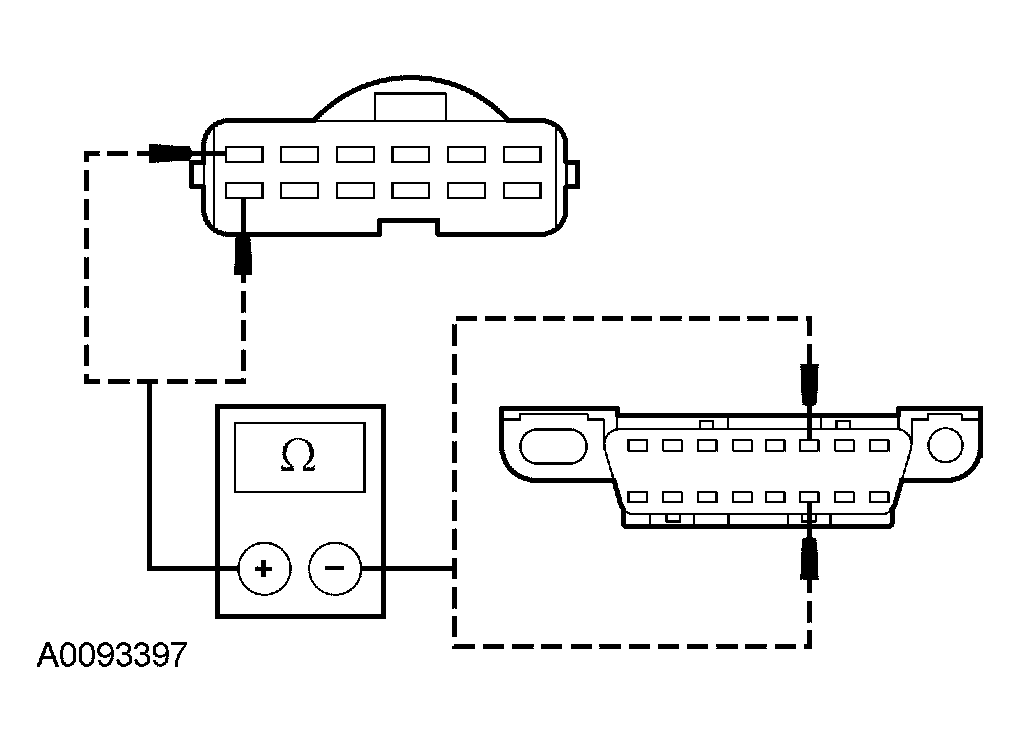

  Fig 1: Checking The High Speed CAN Circuits Between The TCM And The DLC For An Open
  Courtesy of FORD MOTOR CO.
- Are the resistances less than 5 ohms?
- Yes : GO to K2.
- No : REPAIR the circuit in question. CLEAR the DTCs. REPEAT the self-test. CARRY OUT the diagnostic tool data link test.
K2 CHECK FOR CORRECT TCM OPERATION
NOTE: Do not disconnect the high voltage cables or connectors in the following step.
- Disconnect all the TCM harness connectors.
- Check for:
  - corrosion
  - pushed-out pins
- Connect all the TCM harness connectors and make sure they seat correctly.
- Operate the system and verify the concern is still present.
- Is the concern still present?
- Yes : DIAGNOSE the high speed CAN. GO to PINPOINT TEST P .
- No : The system is operating correctly at this time. The concern may have been caused by a loose or corroded connector. CLEAR the DTCs. REPEAT the self-test.
