Powertrain Control Module (PCM) Connector

For PCM connector views or reference values, refer to REFERENCE VALUES - GASOLINE MODELS .

Vehicle	Connector	Circuit	Pin
Aviator	150 (60-32-58) Pin	SIGRTN	B17
Aviator	150 (60-32-58) Pin	PSP	B37
Escape,	150 (50-50-50) Pin	SIGRTN	B41
Mariner	150 (50-50-50) Pin	PSP	B3
F-150	190 Pin	SIGRTN	E58
F-150	190 Pin	PSP	E24
Focus	150 (50-50-50) Pin	SIGRTN	B41
Focus	150 (50-50-50) Pin	PSP	B15
Freestar/Monterey,	104 Pin	SIGRTN	91
Ranger,		PSP	31
Sable,
Taurus
LS,	150 (60-32-58) Pin	SIGRTN	E17
Thunderbird	150 (60-32-58) Pin	PSP	E5
Mustang	170 Pin	SIGRTN	E33
Mustang	170 Pin	PSP	B33
All other vehicles	150 (50-50-50) Pin	SIGRTN	E41
All other vehicles	150 (50-50-50) Pin	PSP	B46

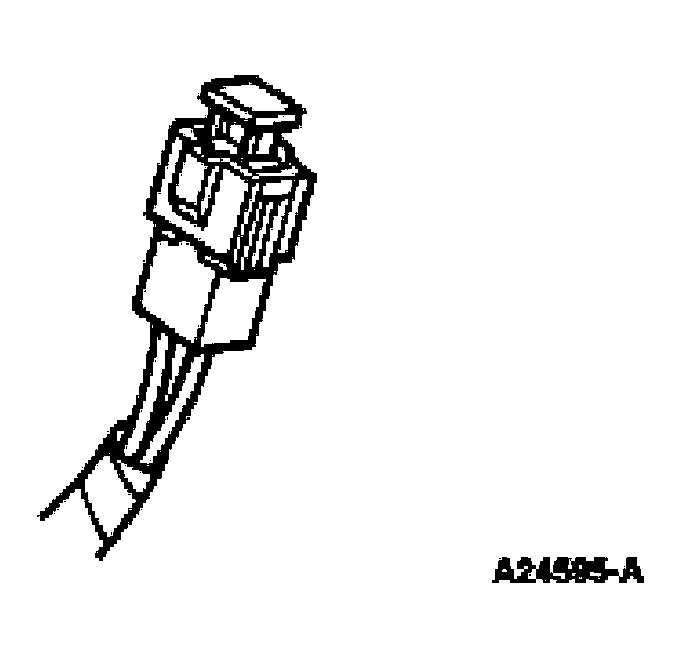

Fig 1: Shorting Bar For Harness Circuit Without PSP Switch (Typical)

Courtesy of FORD MOTOR CO.
