Pinpoint Test HY: Generator/Regulator System: Introduction: Notes

This pinpoint test is intended to diagnose the following:

• Generator/Regulator (10346).
• Harness circuits: GENLI, GENRC, BATT-SENSE, ILC.
• Powertrain control module (PCM) (12A650).

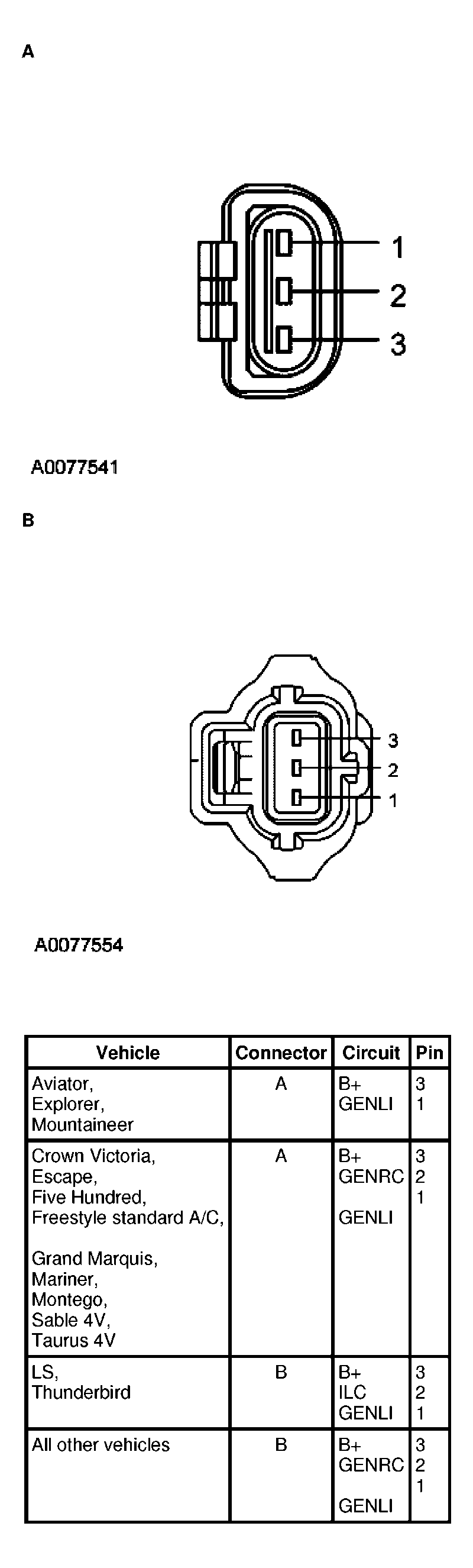

Fig 1: Generator (GEN) Assembly Connector

Courtesy of FORD MOTOR CO.
