Connector Views

Fig 1: A/C Clutch Field Coil Connector End View (C100)

G07846939

Courtesy of FORD MOTOR CO.

Fig 2: Crankshaft Position Sensor Connector End View (C101)

G07846940

Courtesy of FORD MOTOR CO.

Fig 3: Generator Connector End View (C102a)

G07846941

Courtesy of FORD MOTOR CO.

Fig 4: Generator Connector End View (C102b)

G07846942

Courtesy of FORD MOTOR CO.

Fig 5: Oil Pressure Switch Connector End View (C103)

G07846943

Courtesy of FORD MOTOR CO.

Fig 6: Knock Sensor Connector End View (C108)

G07846944

Courtesy of FORD MOTOR CO.

Fig 7: Inline Connector End View (C110)

G07846945

Courtesy of FORD MOTOR CO.

Fig 8: Coil On Plug (COP) 1 Connector End View (C111)

G07846946

Courtesy of FORD MOTOR CO.

Fig 9: Coil On Plug (COP) 2 Connector End View (C112)

G07846947

Courtesy of FORD MOTOR CO.

Fig 10: Coil On Plug (COP) 3 Connector End View (C113)

G07846948

Courtesy of FORD MOTOR CO.

Fig 11: Coil On Plug (COP) 4 Connector End View (C114)

G07846949

Courtesy of FORD MOTOR CO.

Fig 12: Coil On Plug, (COP) 5 Connector End View (C115)

G07846950

Courtesy of FORD MOTOR CO.

Fig 13: Coil On Plug (COP) 6 Connector End View (C116)

G07846951

Courtesy of FORD MOTOR CO.

Fig 14: Power Steering Pressure Switch Connector End View (C121)

G07846952

Courtesy of FORD MOTOR CO.

Fig 15: Brake Fluid Level Switch Connector End View (C124)

G07846953

Courtesy of FORD MOTOR CO.

Fig 16: Windshield Wiper Motor Connector End View (C125)

G07846954

Courtesy of FORD MOTOR CO.

Fig 17: Anti-Theft Hood Switch Connector End View (C127)

G07846955

Courtesy of FORD MOTOR CO.

Fig 18: Anti-Theft Hood Switch Connector End View (C127)

G07846956

Courtesy of FORD MOTOR CO.

Fig 19: A/C Clutch Cycling Pressure Switch Connector End View (C1303)

G07846957

Courtesy of FORD MOTOR CO.

Fig 20: Horn Connector End View (C1311)

G07846958

Courtesy of FORD MOTOR CO.

Fig 21: Ambient Air Temperature Sensor Connector End View (C132)

G07846959

Courtesy of FORD MOTOR CO.

Fig 22: Inline Connector End View (C133)

G07846960

Courtesy of FORD MOTOR CO.

Fig 23: Inline Connector End View (C134)

G07846961

Courtesy of FORD MOTOR CO.

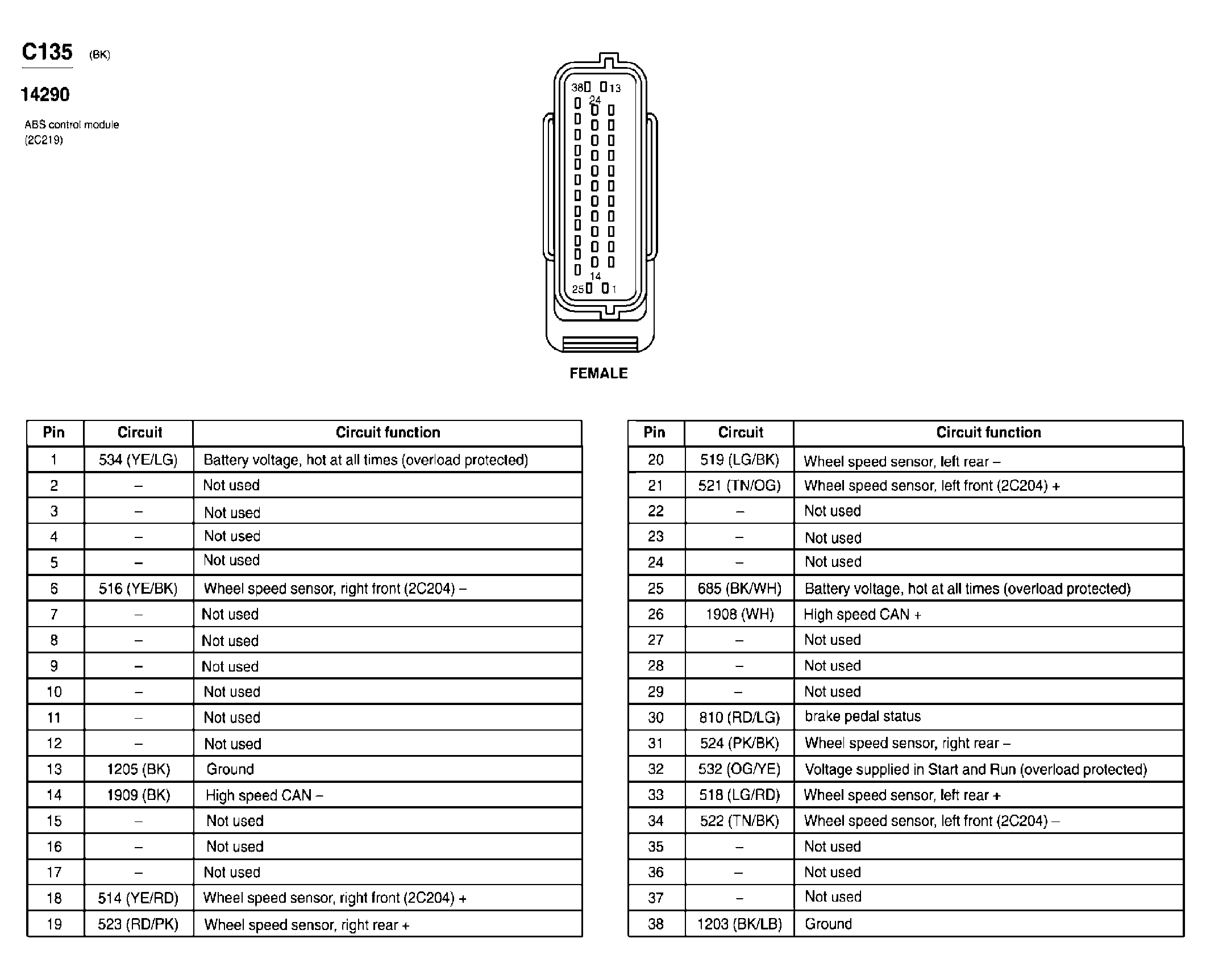

Fig 24: ABS Control Module Connector End View (C135)

G04597607

Courtesy of FORD MOTOR CO.

Fig 25: Windshield Washer Pump Motor Connector End View (C137)

G07846962

Courtesy of FORD MOTOR CO.

Fig 26: Washer Fluid Level Switch Connector End View (C138)

G07846963

Courtesy of FORD MOTOR CO.

Fig 27: Inline Connector End View (C139)

G07846964

Courtesy of FORD MOTOR CO.

Fig 28: Heated Oxygen Sensor (HO2S) #22 Connector End View (C141)

G07846965

Courtesy of FORD MOTOR CO.

Fig 29: Heated Oxygen Sensor (HO2S) #12 Connector End View (C142)

G07846966

Courtesy of FORD MOTOR CO.

Fig 30: Inline Connector End View (C144)

G07846967

Courtesy of FORD MOTOR CO.

Fig 31: Wheel Speed Sensor, Left Front Connector End View (C150)

G07846968

Courtesy of FORD MOTOR CO.

Fig 32: Fog Lamp, Left Front Connector End View (C152)

G07846969

Courtesy of FORD MOTOR CO.

Fig 33: Wheel Speed Sensor, Right Front Connector End View (C160)

G07846970

Courtesy of FORD MOTOR CO.

Fig 34: Fog Lamp, Right Front Connector End View (C162)

G07846971

Courtesy of FORD MOTOR CO.

Fig 35: Auxiliary Coolant Pump Motor Connector End View (C163)

G07846972

Courtesy of FORD MOTOR CO.

Fig 36: 6-Speed Automatic Transaxle Module Connector End View (C168)

G07846973

Courtesy of FORD MOTOR CO.

Fig 37: Heated Oxygen Sensor (HO2S) #11 Connector End View (C171)

G07846974

Courtesy of FORD MOTOR CO.

Fig 38: Heated Oxygen Sensor (HO2S) #21 Connector End View (C172)

G07846975

Courtesy of FORD MOTOR CO.

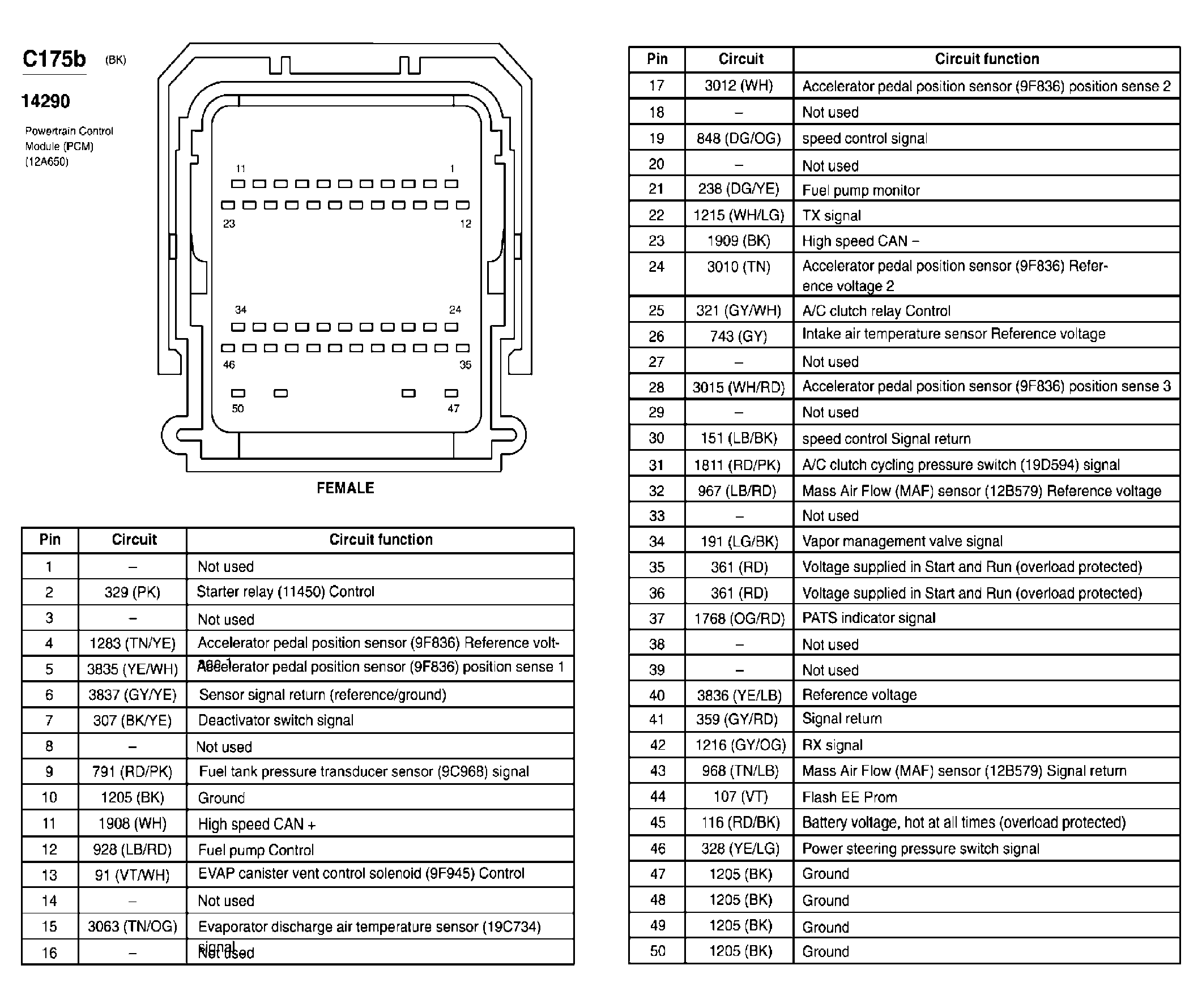

Fig 39: Powertrain Control Module (PCM) Connector End View (C175b)

G04597612

Courtesy of FORD MOTOR CO.

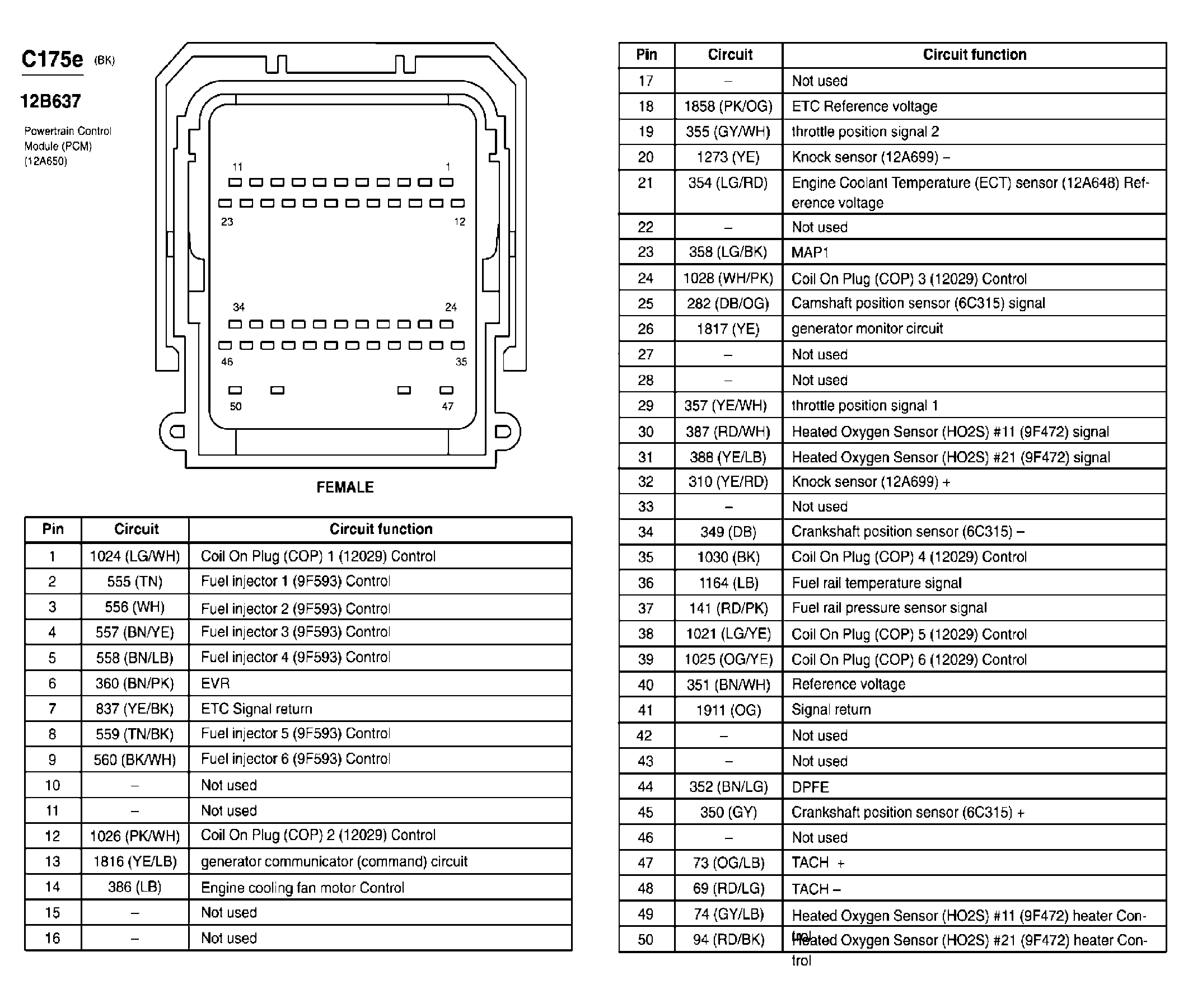

Fig 40: Powertrain Control Module (PCM) Connector End View (C175e)

G04597613

Courtesy of FORD MOTOR CO.

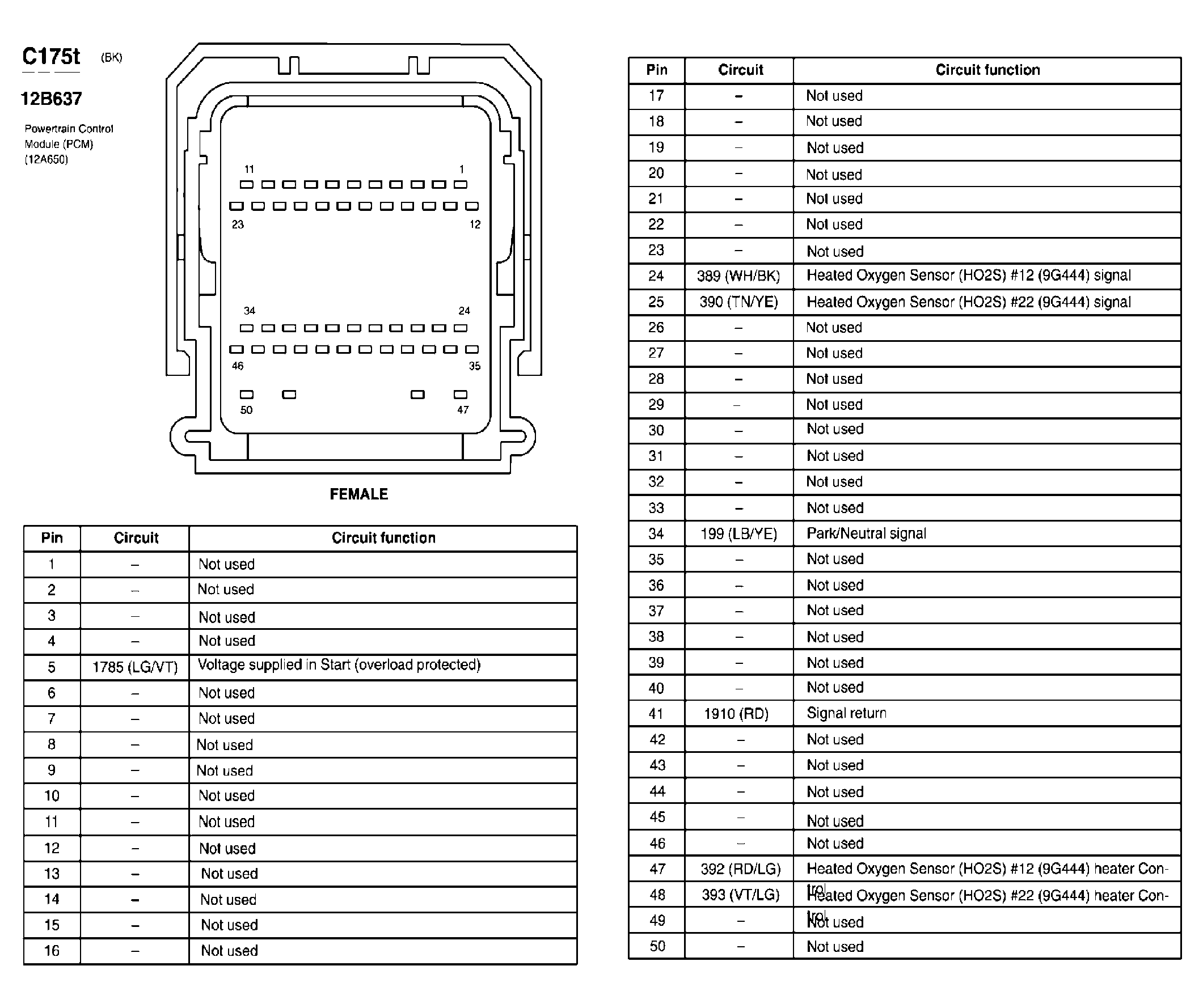

Fig 41: Powertrain Control Module (PCM) Connector End View (C175t)

G04597614

Courtesy of FORD MOTOR CO.

Fig 42: Camshaft Position Sensor Connector End View (C180)

G07846976

Courtesy of FORD MOTOR CO.

Fig 43: Fuel Injector 1 Connector End View (C181)

G07846977

Courtesy of FORD MOTOR CO.

Fig 44: Fuel Injector 2 Connector End View (C182)

G07846978

Courtesy of FORD MOTOR CO.

Fig 45: Fuel Injector 3 Connector End View (C183)

G07846979

Courtesy of FORD MOTOR CO.

Fig 46: Fuel Injector 4 Connector End View (C184)

G07846980

Courtesy of FORD MOTOR CO.

Fig 47: Fuel Injector 5 Connector End View (C185)

G07846981

Courtesy of FORD MOTOR CO.

Fig 48: Fuel Injector 6 Connector End View (C186)

G07846982

Courtesy of FORD MOTOR CO.

Fig 49: Heated Positive Crankcase Ventilation (PCV) Valve Connector End View (C190)

G07846983

Courtesy of FORD MOTOR CO.

Fig 50: Starter Motor Connector End View (C197a)

G07846984

Courtesy of FORD MOTOR CO.

Fig 51: Starter Motor Connector End View (C197b)

G07846985

Courtesy of FORD MOTOR CO.

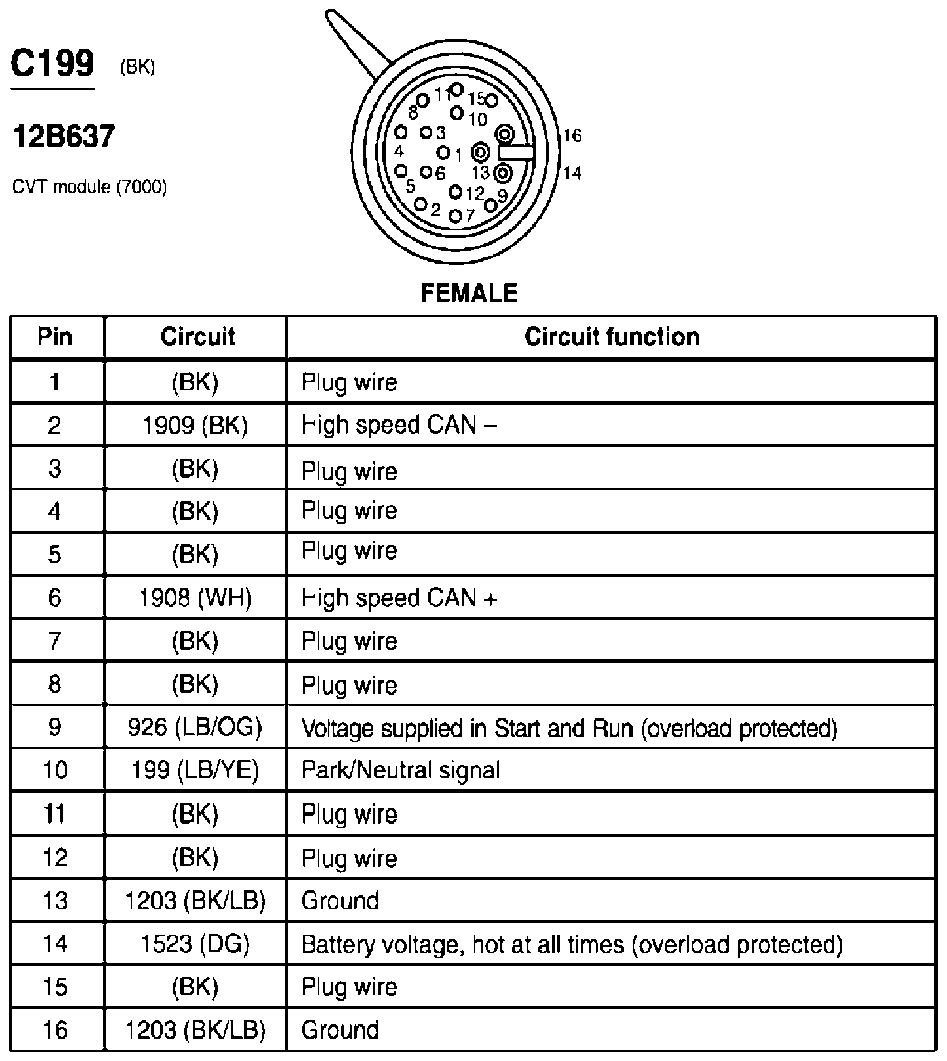

Fig 52: CVT Module Connector End View (C199)

G07846986

Courtesy of FORD MOTOR CO.

Fig 53: Multifunction Switch Connector End View (C202a)

G07846987

Courtesy of FORD MOTOR CO.

Fig 54: Multifunction Switch Connector End View (C202b)

G07846988

Courtesy of FORD MOTOR CO.

Fig 55: Main Light Switch Connector End View (C205)

G04597618

Courtesy of FORD MOTOR CO.

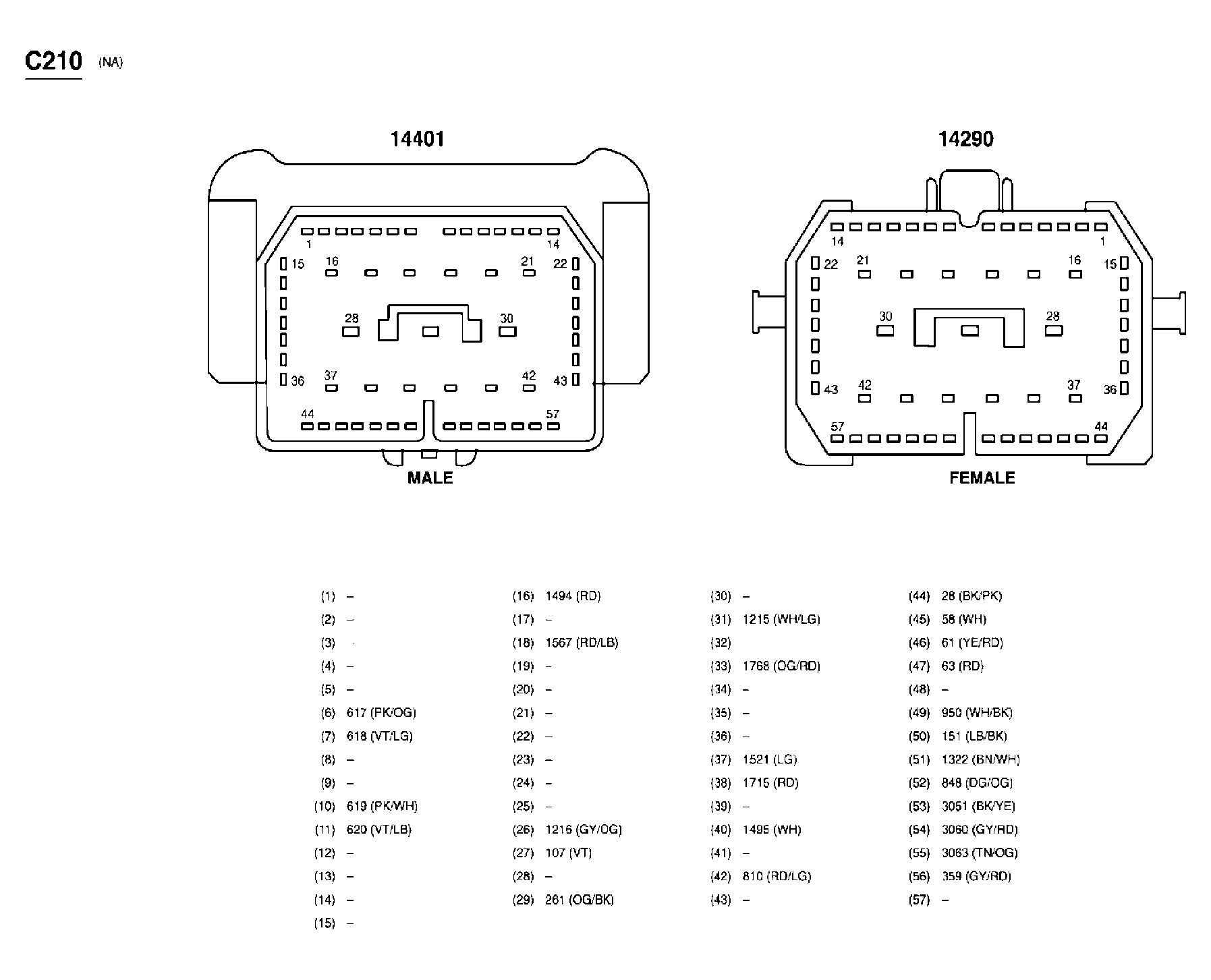

Fig 56: Inline Connector End View (C210)

G04597619

Courtesy of FORD MOTOR CO.

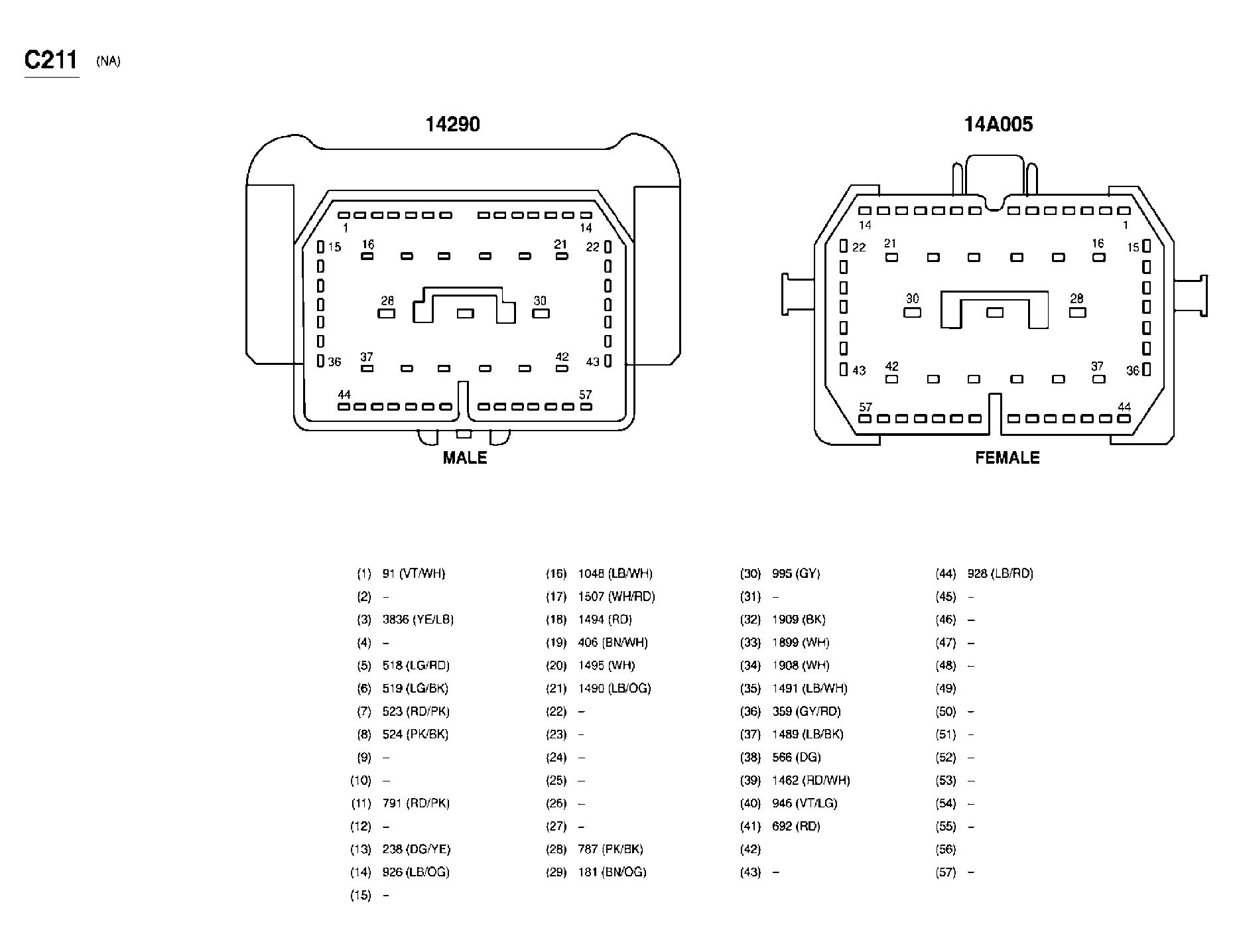

Fig 57: Inline Connector End View (C211)

G04597620

Courtesy of FORD MOTOR CO.

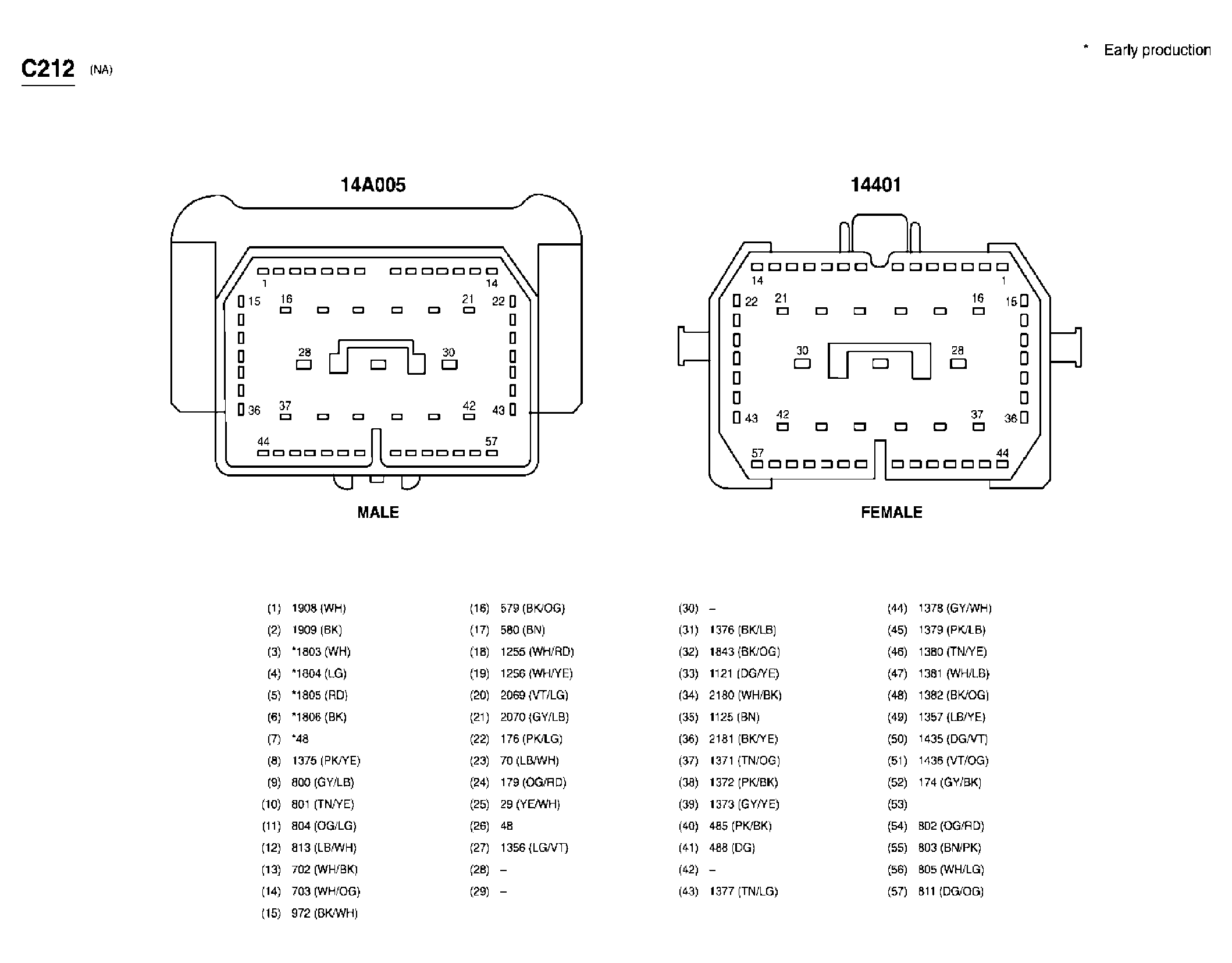

Fig 58: Inline Connector End View (C212)

G04597621

Courtesy of FORD MOTOR CO.

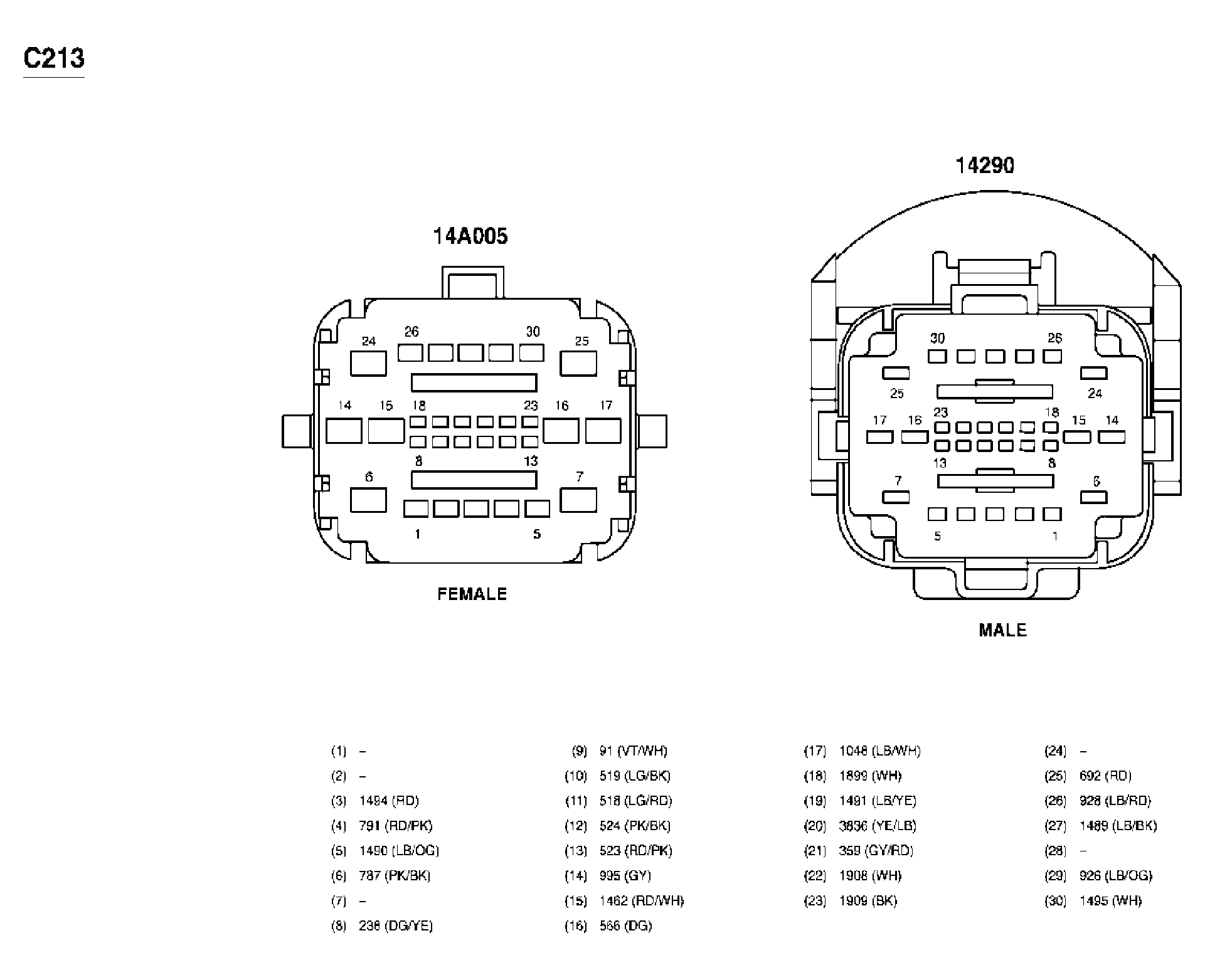

Fig 59: Inline Connector End View (C213)

G04597622

Courtesy of FORD MOTOR CO.

Fig 60: Inline Connector End View (C215)

G07846989

Courtesy of FORD MOTOR CO.

Fig 61: Inline Connector End View (C219)

G07846990

Courtesy of FORD MOTOR CO.

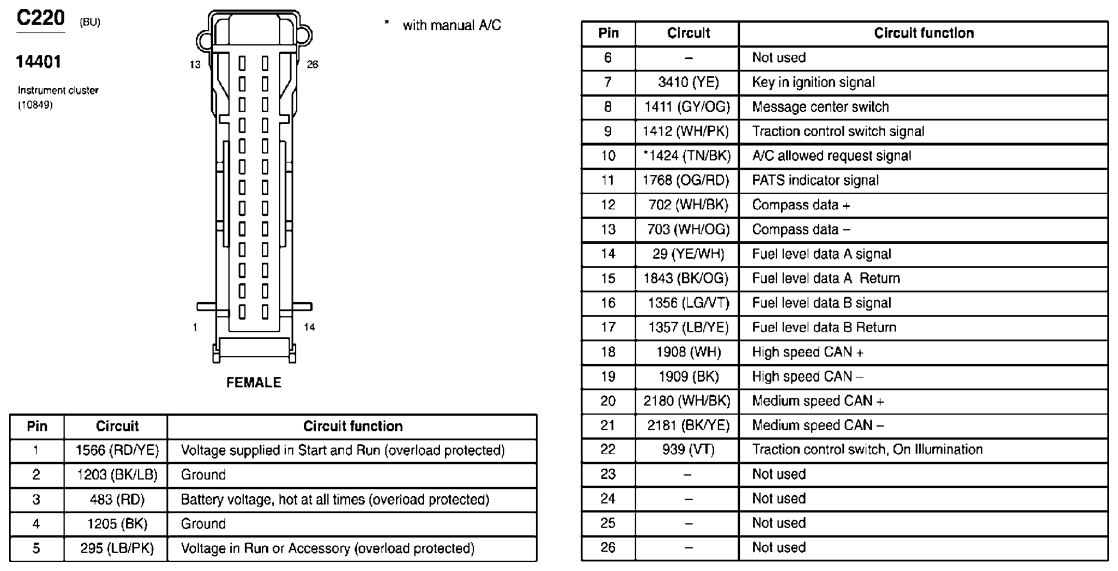

Fig 62: Instrument Cluster Connector End View (C220)

G07846991

Courtesy of FORD MOTOR CO.

Fig 63: Deployable Steering Column Connector End View (C226)

G07846992

Courtesy of FORD MOTOR CO.

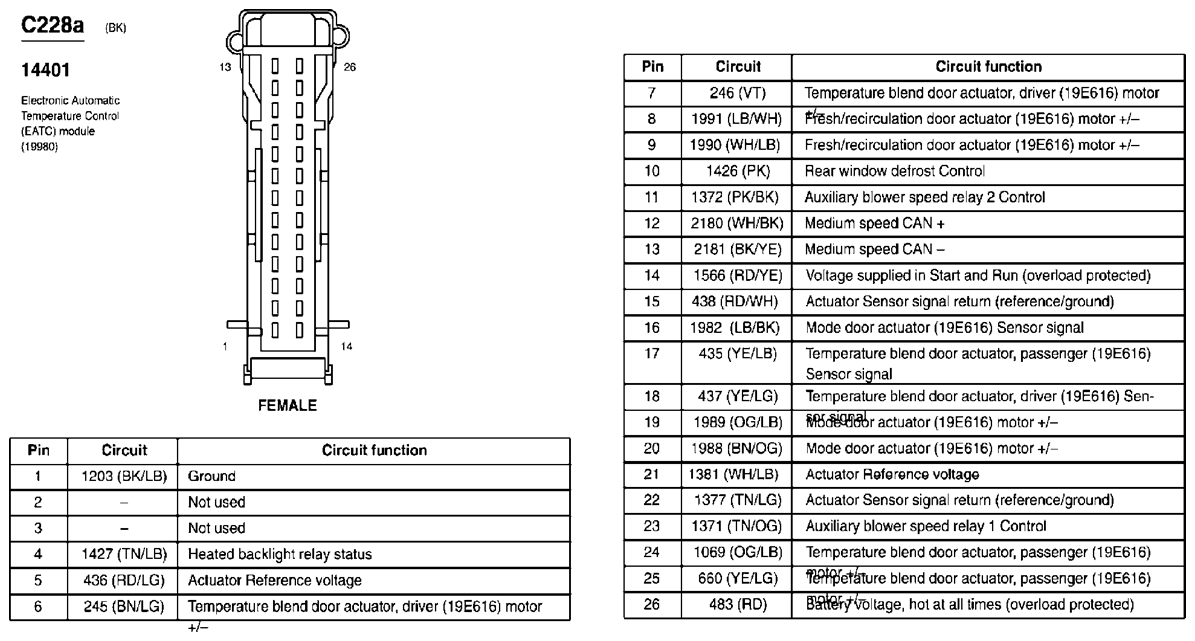

Fig 64: Electronic Automatic Temperature Control (EATC) Module Connector End View (C228a)

G04597625

Courtesy of FORD MOTOR CO.

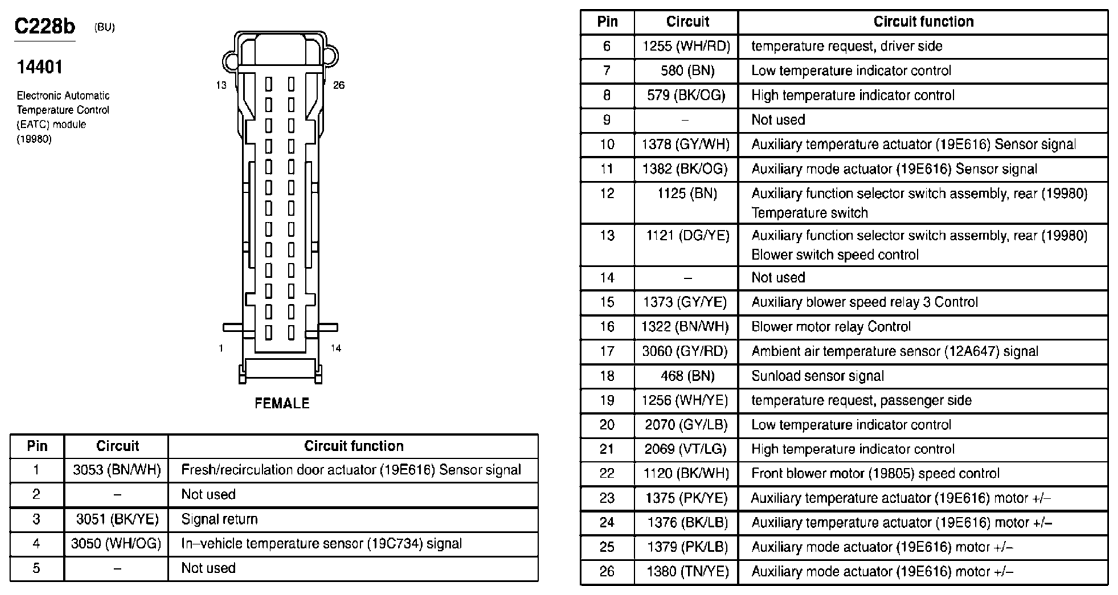

Fig 65: Electronic Automatic Temperature Control (EATC) Module Connector End View (C228b)

G07846993

Courtesy of FORD MOTOR CO.

Fig 66: In-Vehicle Temperature Sensor Connector End View (C233)

G07846994

Courtesy of FORD MOTOR CO.

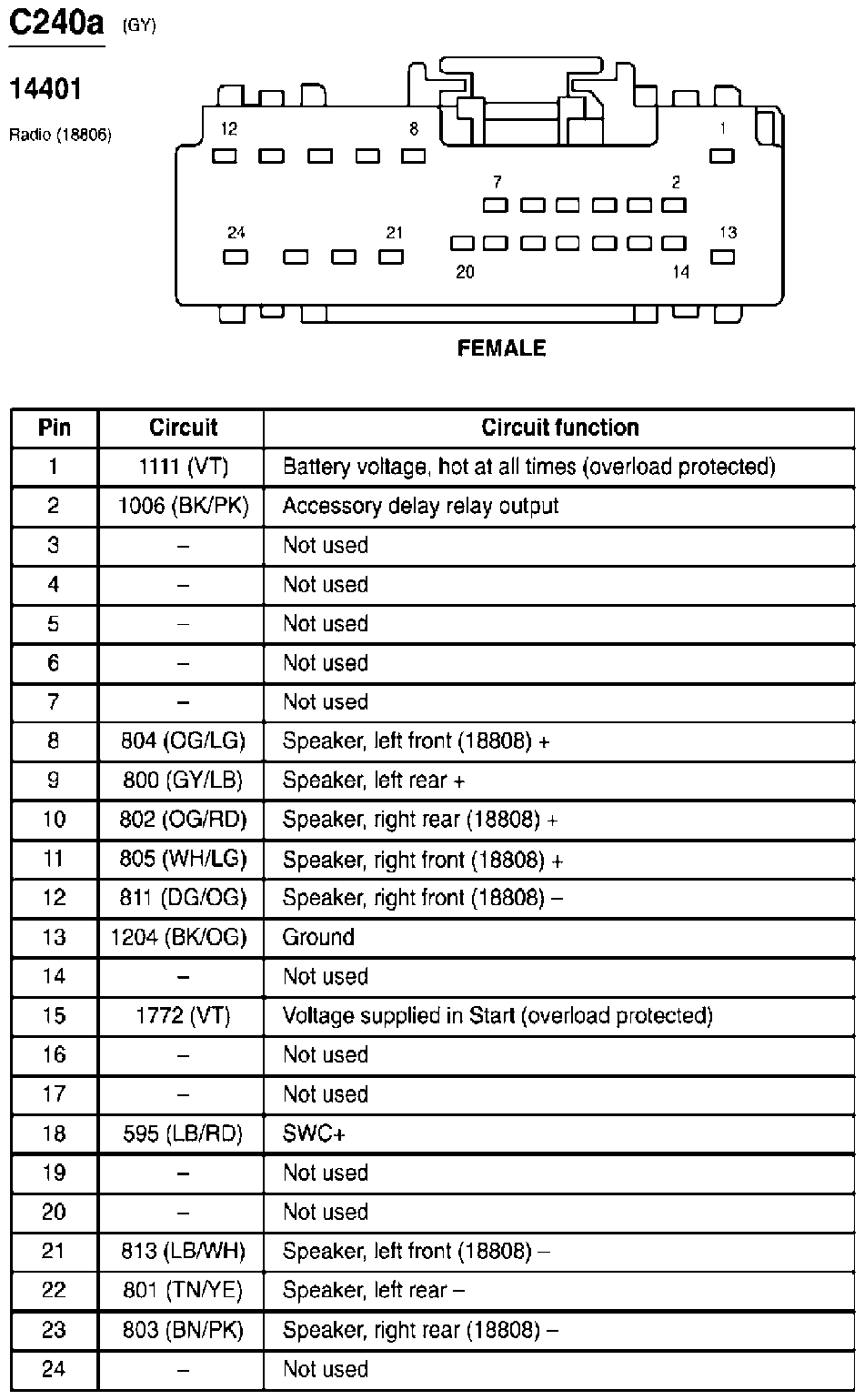

Fig 67: Radio Connector End View (C240a)

G07846995

Courtesy of FORD MOTOR CO.

Fig 68: Radio Connector End View (C240b)

G07846996

Courtesy of FORD MOTOR CO.

Fig 69: Radio Connector End View (C240c)

G07846997

Courtesy of FORD MOTOR CO.

Fig 70: Ignition Switch Connector End View (C250)

G07846998

Courtesy of FORD MOTOR CO.

Fig 71: Data Link Connector (DLC) Connector End View (C251)

G07846999

Courtesy of FORD MOTOR CO.

Fig 72: Passive Anti-Theft Transceiver Connector End View (C252)

G07847000

Courtesy of FORD MOTOR CO.

Fig 73: Passenger Air Bag Module Connector End View (C256a)

G07847001

Courtesy of FORD MOTOR CO.

Fig 74: Passenger Air Bag Module Connector End View (C256b)

G07847002

Courtesy of FORD MOTOR CO.

Fig 75: Front Blower Motor Speed Controller Connector End View (C271)

G07847003

Courtesy of FORD MOTOR CO.

Fig 76: Brake Pedal Position Switch Connector End View (C278)

G07847004

Courtesy of FORD MOTOR CO.

Fig 77: Autolamp/Sunload Sensor Connector End View (C286)

G07847005

Courtesy of FORD MOTOR CO.

Fig 78: Fresh/Recirculation Door Actuator Connector End View (C289)

G07847006

Courtesy of FORD MOTOR CO.

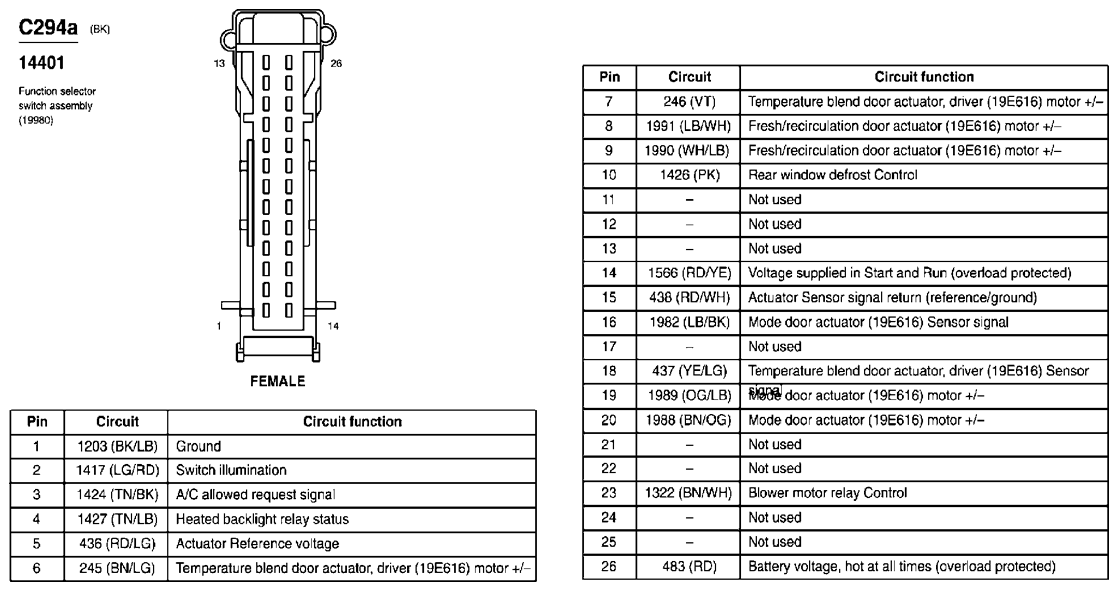

Fig 79: Function Selector Switch Assembly Connector End View (C294a)

G07847007

Courtesy of FORD MOTOR CO.

Fig 80: Function Selector Switch Assembly Connector End View (C294b)

G07847008

Courtesy of FORD MOTOR CO.

Fig 81: Evaporator Discharge Air Temperature Sensor Connector End View (C296)

G07847009

Courtesy of FORD MOTOR CO.

Fig 82: Parking Brake Switch Connector End View (C306)

G07847010

Courtesy of FORD MOTOR CO.

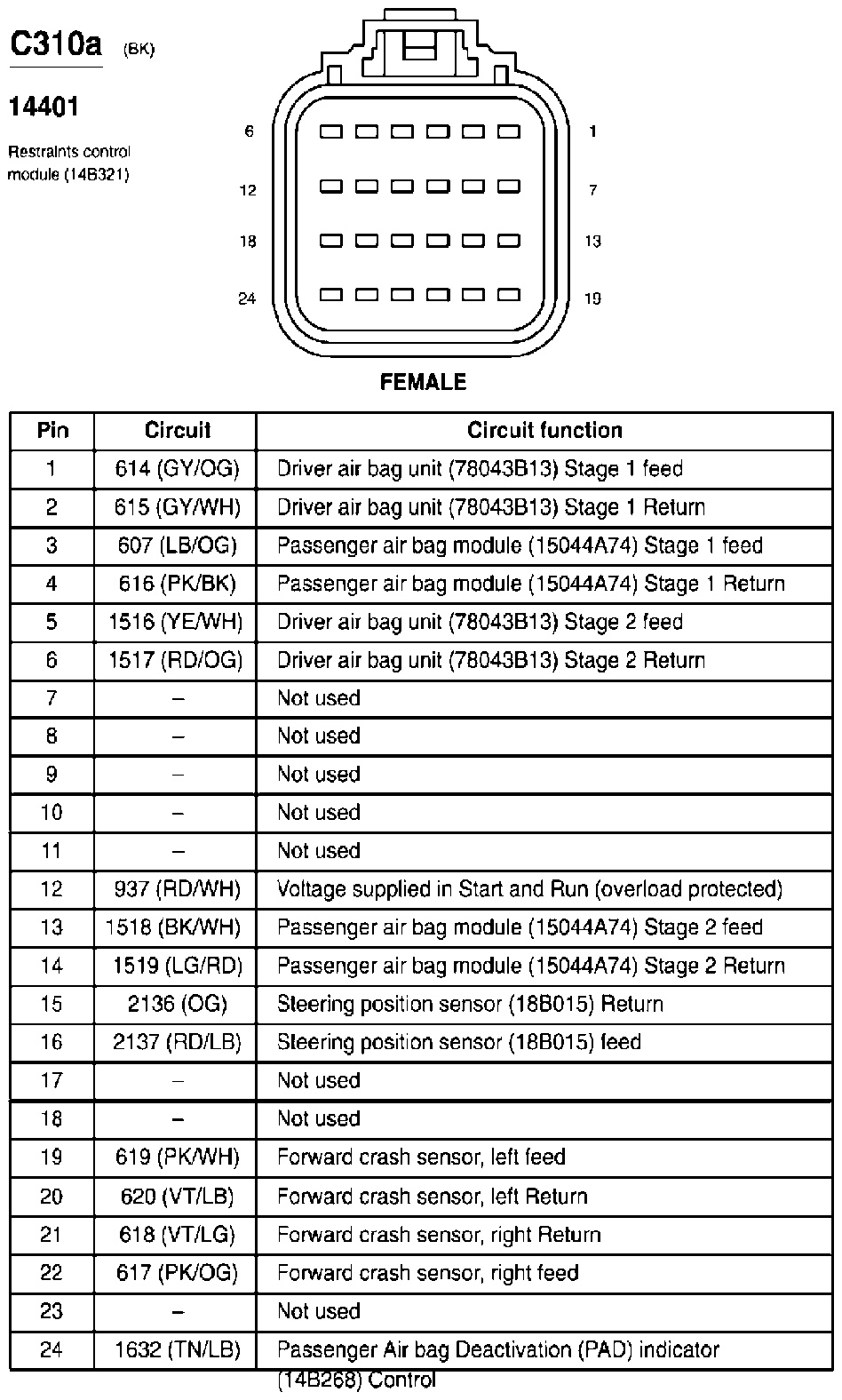

Fig 83: Restraints Control Module Connector End View (C310a)

G07847011

Courtesy of FORD MOTOR CO.

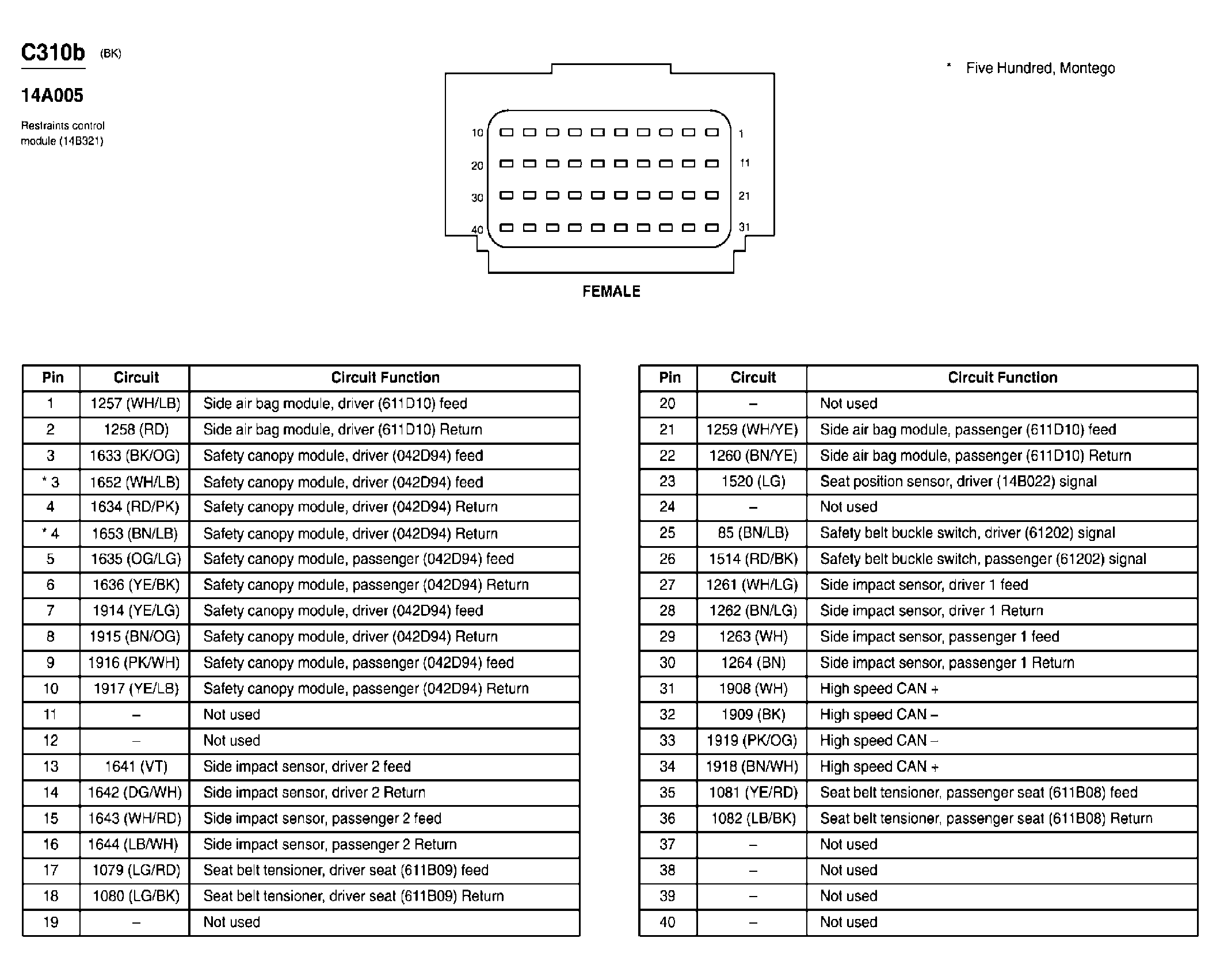

Fig 84: Restraints Control Module Connector End View (C310b)

G04597633

Courtesy of FORD MOTOR CO.

Fig 85: Inline Connector End View (C314)

G07847012

Courtesy of FORD MOTOR CO.

Fig 86: Inline Connector End View (C315)

G07847013

Courtesy of FORD MOTOR CO.

Fig 87: Inline Connector End View (C327)

G07847014

Courtesy of FORD MOTOR CO.

Fig 88: Inline Connector End View (C328)

G07847015

Courtesy of FORD MOTOR CO.

Fig 89: Heated Seat Module, Passenger Side Front Connector End View (C329)

G07847016

Courtesy of FORD MOTOR CO.

Fig 90: Seat Adjust Switch, Passenger Side Front Connector End View (C330)

G07847017

Courtesy of FORD MOTOR CO.

Fig 91: Passenger Seat Horizontal Motor Connector End View (C332)

G07847018

Courtesy of FORD MOTOR CO.

Fig 92: Seat Cushion Heater, Right Front Connector End View (C334)

G07847019

Courtesy of FORD MOTOR CO.

Fig 93: Seat Back Heater, Right Front Connector End View (C335)

G07847020

Courtesy of FORD MOTOR CO.

Fig 94: Inline Connector End View (C339)

G07847021

Courtesy of FORD MOTOR CO.

Fig 95: Inline Connector End View (C340)

G07847022

Courtesy of FORD MOTOR CO.

Fig 96: Driver Seat Module Connector End View (C341a)

G07847023

Courtesy of FORD MOTOR CO.

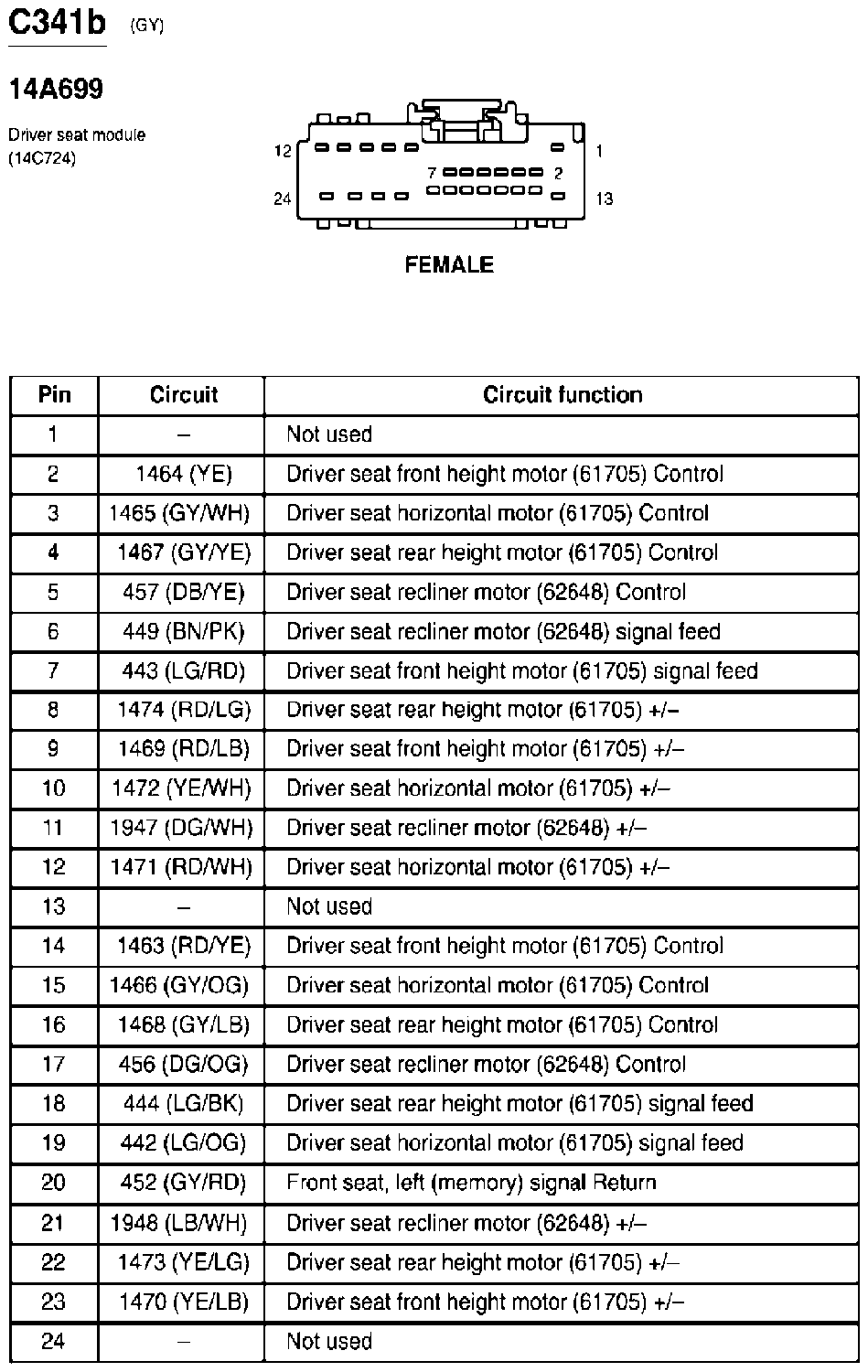

Fig 97: Driver Seat Module Connector End View (C341b)

G07847024

Courtesy of FORD MOTOR CO.

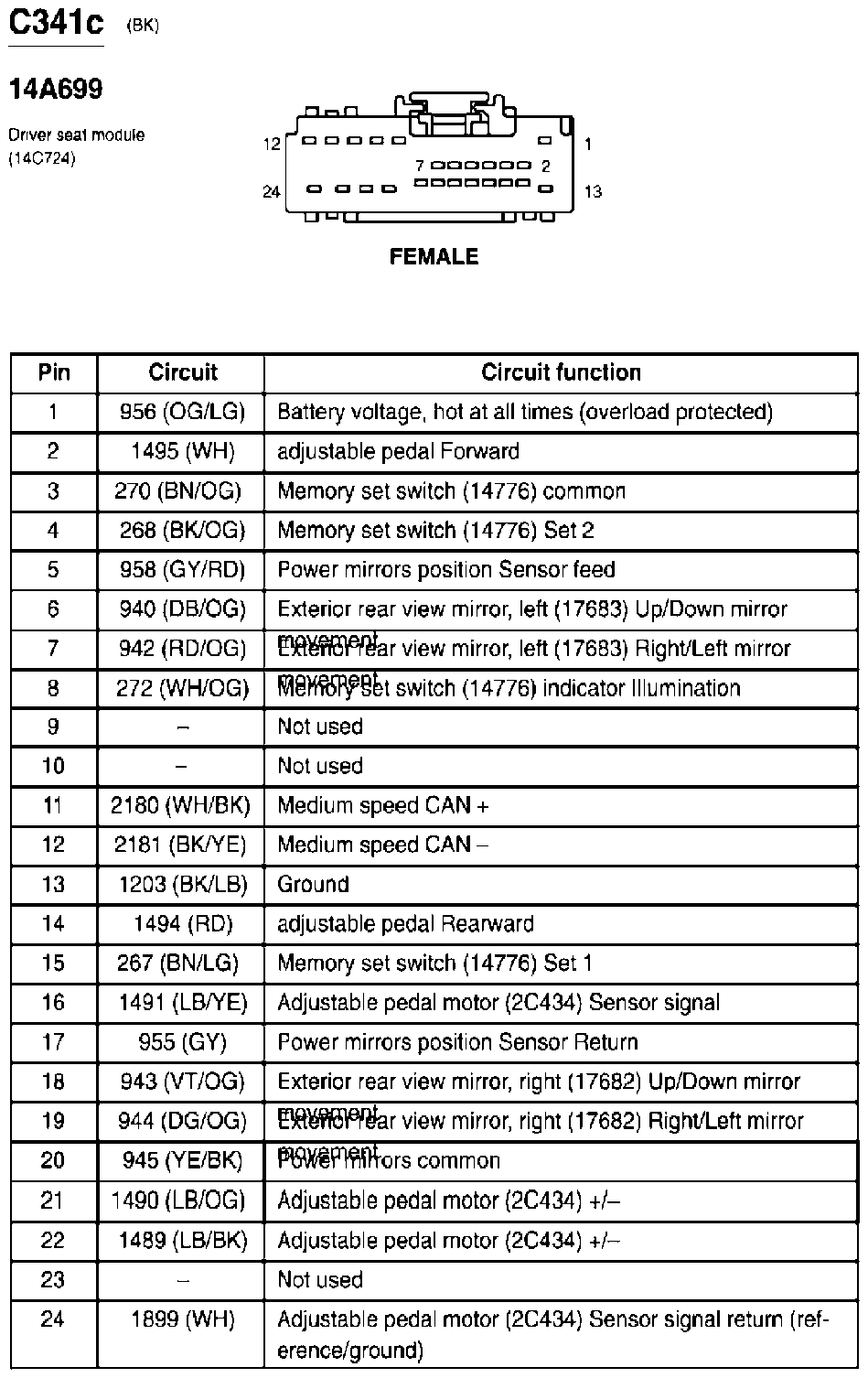

Fig 98: Driver Seat Module Connector End View (C341c)

G07847025

Courtesy of FORD MOTOR CO.

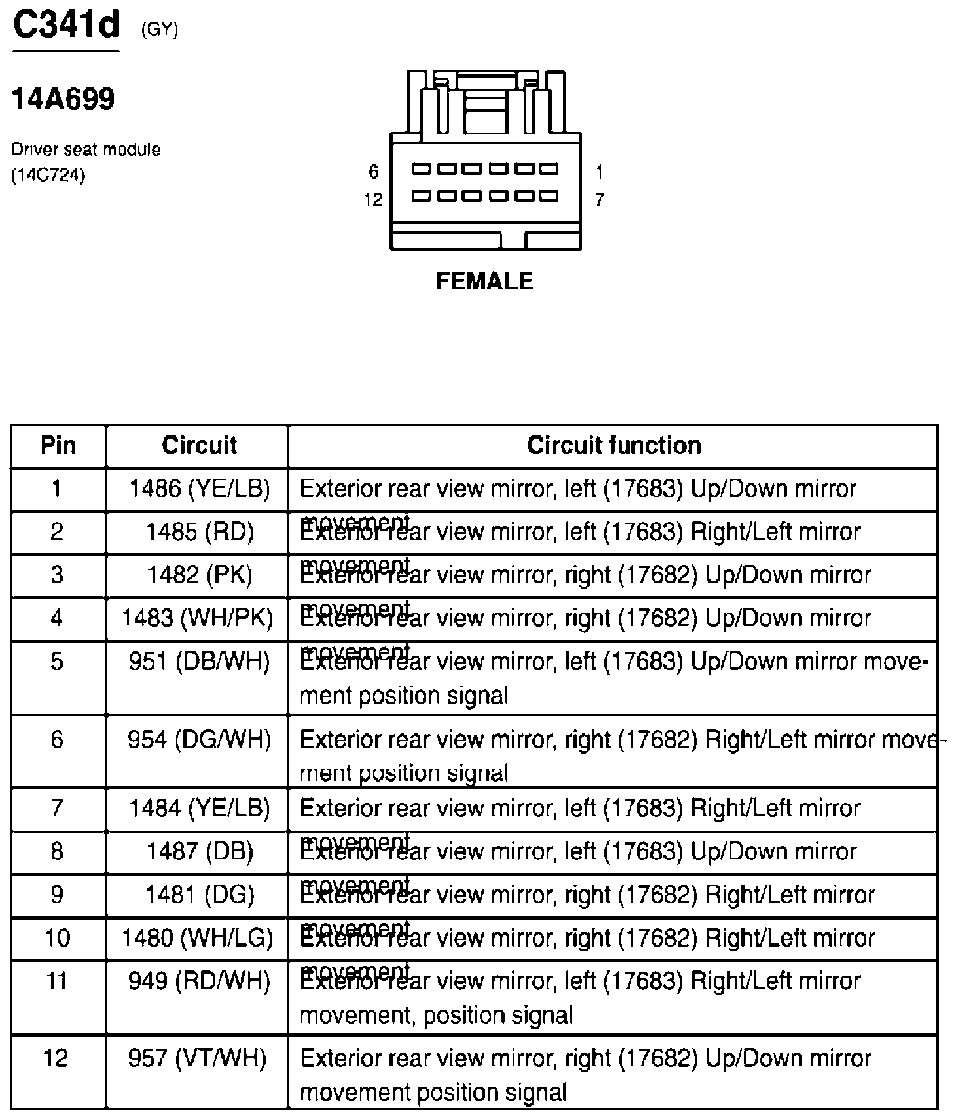

Fig 99: Driver Seat Module Connector End View (C341d)

G07847026

Courtesy of FORD MOTOR CO.

Fig 100: Seat Belt Tensioner, Driver Seat Connector End View (C354)

G07847027

Courtesy of FORD MOTOR CO.

Fig 101: Seat Position Sensor, Driver Connector End View (C356)

G07847028

Courtesy of FORD MOTOR CO.

Fig 102: Heated Seat Module, Driver Side Front Connector End View (C359)

G07847029

Courtesy of FORD MOTOR CO.

Fig 103: Seat Adjust Switch, Driver Side Front Connector End View (C360)

G07847030

Courtesy of FORD MOTOR CO.

Fig 104: Driver Seat Horizontal Motor Connector End View (C362)

G07847031

Courtesy of FORD MOTOR CO.

Fig 105: Driver Seat Rear Height Motor Connector End View (C363)

G07847032

Courtesy of FORD MOTOR CO.

Fig 106: Seat Cushion Heater, Left Front Connector End View (C364)

G07847033

Courtesy of FORD MOTOR CO.

Fig 107: Seat Back Heater, Left Front Connector End View (C365)

G07847034

Courtesy of FORD MOTOR CO.

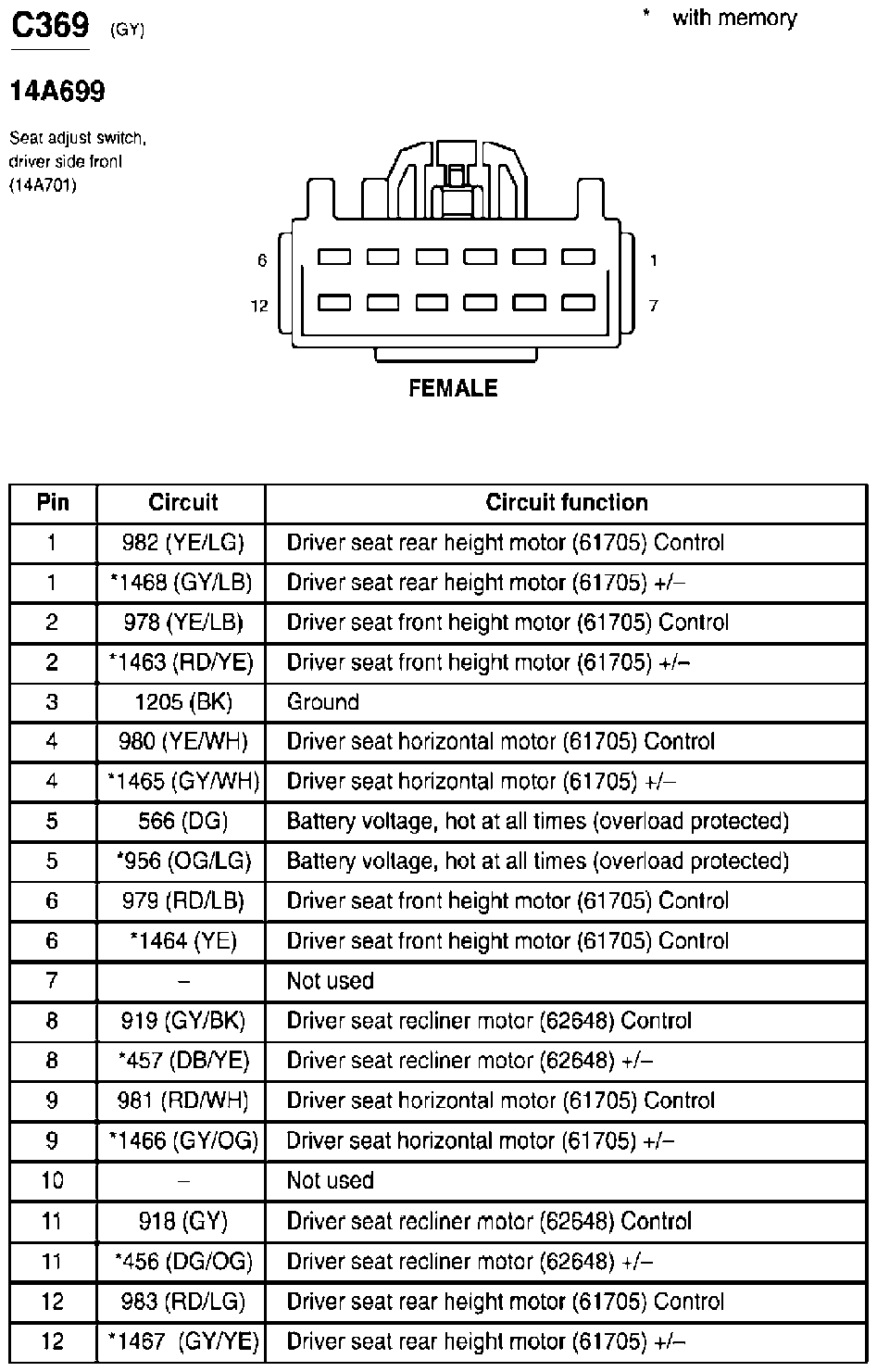

Fig 108: Seat Adjust Switch, Driver Side Front Connector End View (C369)

G07847035

Courtesy of FORD MOTOR CO.

Fig 109: Power Point, Console Connector End View (C380)

G07847036

Courtesy of FORD MOTOR CO.

Fig 110: Driver Seat Front Height Motor Connector End View (C382)

G07847037

Courtesy of FORD MOTOR CO.

Fig 111: Seat Belt Tensioner, Passenger Seat Connector End View (C389)

G07847038

Courtesy of FORD MOTOR CO.

Fig 112: Inertia Fuel Shutoff (IFS) Switch Connector End View (C392)

G07847039

Courtesy of FORD MOTOR CO.

Fig 113: Rear Window Defrost Grid Connector End View (C402a)

G07847040

Courtesy of FORD MOTOR CO.

Fig 114: Rear Window Defrost Grid Connector End View (C402b)

G07847041

Courtesy of FORD MOTOR CO.

Fig 115: Inline Connector End View (C411)

G07847042

Courtesy of FORD MOTOR CO.

Fig 116: Lamp Assembly, Left Connector End View (C414)

G07847043

Courtesy of FORD MOTOR CO.

Fig 117: Lamp Assembly, Right Rear Connector End View (C417)

G07847044

Courtesy of FORD MOTOR CO.

Fig 118: Luggage Compartment Lamp Connector End View (C428)

G07847045

Courtesy of FORD MOTOR CO.

Fig 119: License Plate Lamp, Left Connector End View (C452)

G07847046

Courtesy of FORD MOTOR CO.

Fig 120: License Plate Lamp, Right Connector End View (C462)

G07847047

Courtesy of FORD MOTOR CO.

Fig 121: Subwoofer Amplifier Connector End View (C466a)

G07847048

Courtesy of FORD MOTOR CO.

Fig 122: Subwoofer Amplifier Connector End View (C466b)

G07847049

Courtesy of FORD MOTOR CO.

Fig 123: Power Point, Rear Connector End View (C474)

G07847050

Courtesy of FORD MOTOR CO.

Fig 124: Rear Wiper Motor Assembly Connector End View (C476)

G07847051

Courtesy of FORD MOTOR CO.

Fig 125: Liftgate Ajar Switch Connector End View (C479)

G07847052

Courtesy of FORD MOTOR CO.

Fig 126: License Lamps Connector End View (C490)

G07847053

Courtesy of FORD MOTOR CO.

Fig 127: Key Pad Switch Assembly Connector End View (C500)

G07847054

Courtesy of FORD MOTOR CO.

Fig 128: Memory Set Switch Connector End View (C503)

G07847055

Courtesy of FORD MOTOR CO.

Fig 129: Master Window Adjust Switch Connector End View (C504a)

G07847056

Courtesy of FORD MOTOR CO.

Fig 130: Master Window Adjust Switch Connector End View (C504b)

G07847057

Courtesy of FORD MOTOR CO.

Fig 131: Anti-Theft Inhibit Switch Connector End View (C509)

G07847058

Courtesy of FORD MOTOR CO.

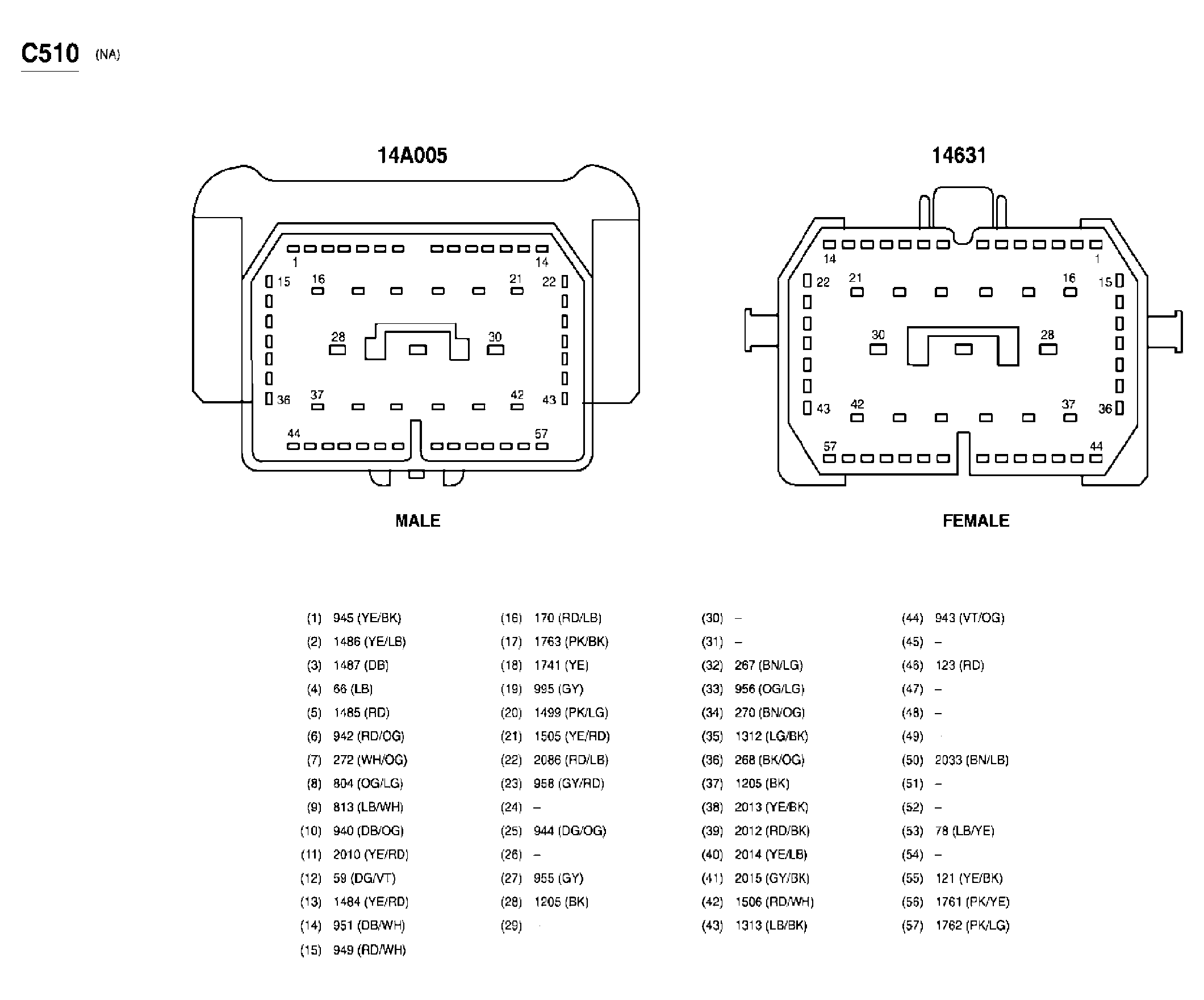

Fig 132: Inline Connector End View (C510)

G04597650

Courtesy of FORD MOTOR CO.

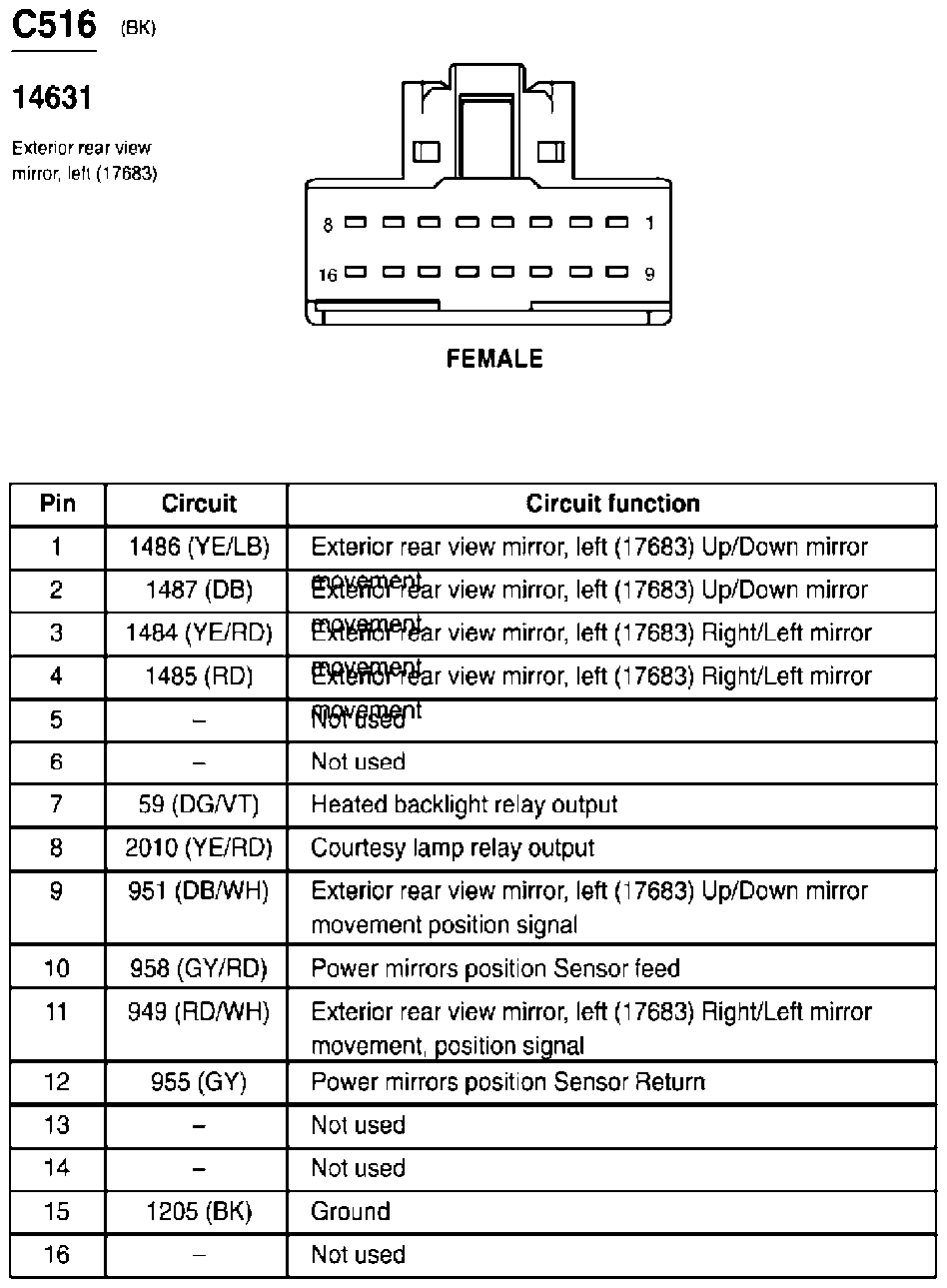

Fig 133: Exterior Rear View Mirror, Left Connector End View (C516)

G07847059

Courtesy of FORD MOTOR CO.

Fig 134: Exterior Rear View Mirror, Left Connector End View (C522)

G07847060

Courtesy of FORD MOTOR CO.

Fig 135: Speaker, Left Front Connector End View (C523)

G07847061

Courtesy of FORD MOTOR CO.

Fig 136: Power Window Motor, Driver Side Front Connector End View (C524)

G07847062

Courtesy of FORD MOTOR CO.

Fig 137: Door Lock Actuator, Left Front Connector End View (C525)

G07847063

Courtesy of FORD MOTOR CO.

Fig 138: Door Ajar Switch, Left Front Connector End View (C526)

G07847064

Courtesy of FORD MOTOR CO.

Fig 139: Exterior Rear View Mirror, Switch Connector End View (C527)

G07847065

Courtesy of FORD MOTOR CO.

Fig 140: Door Lock Switch, Driver Side Connector End View (C541)

G07847066

Courtesy of FORD MOTOR CO.

Fig 141: Door Ajar Switch, Right Front Connector End View (C602)

G07847067

Courtesy of FORD MOTOR CO.

Fig 142: Door Lock Actuator, Right Front Connector End View (C603)

G07847068

Courtesy of FORD MOTOR CO.

Fig 143: Window Adjust Switch, Passenger Side Connector End View (C604)

G07847069

Courtesy of FORD MOTOR CO.

Fig 144: Door Lock Switch, Passenger Side Connector End View (C605)

G07847070

Courtesy of FORD MOTOR CO.

Fig 145: Power Window Motor, Passenger Side Front Connector End View (C608)

G07847071

Courtesy of FORD MOTOR CO.

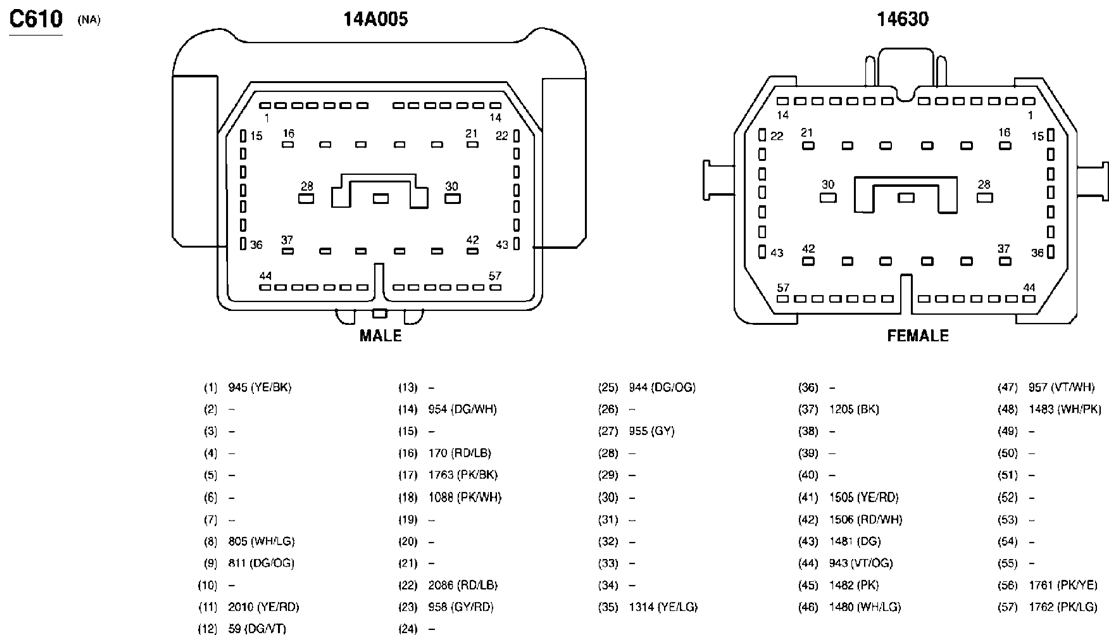

Fig 146: Inline Connector End View (C610)

G07847072

Courtesy of FORD MOTOR CO.

Fig 147: Speaker, Right Front Connector End View (C612)

G07847073

Courtesy of FORD MOTOR CO.

Fig 148: Exterior Rear View Mirror, Right Connector End View (C622)

G07847074

Courtesy of FORD MOTOR CO.

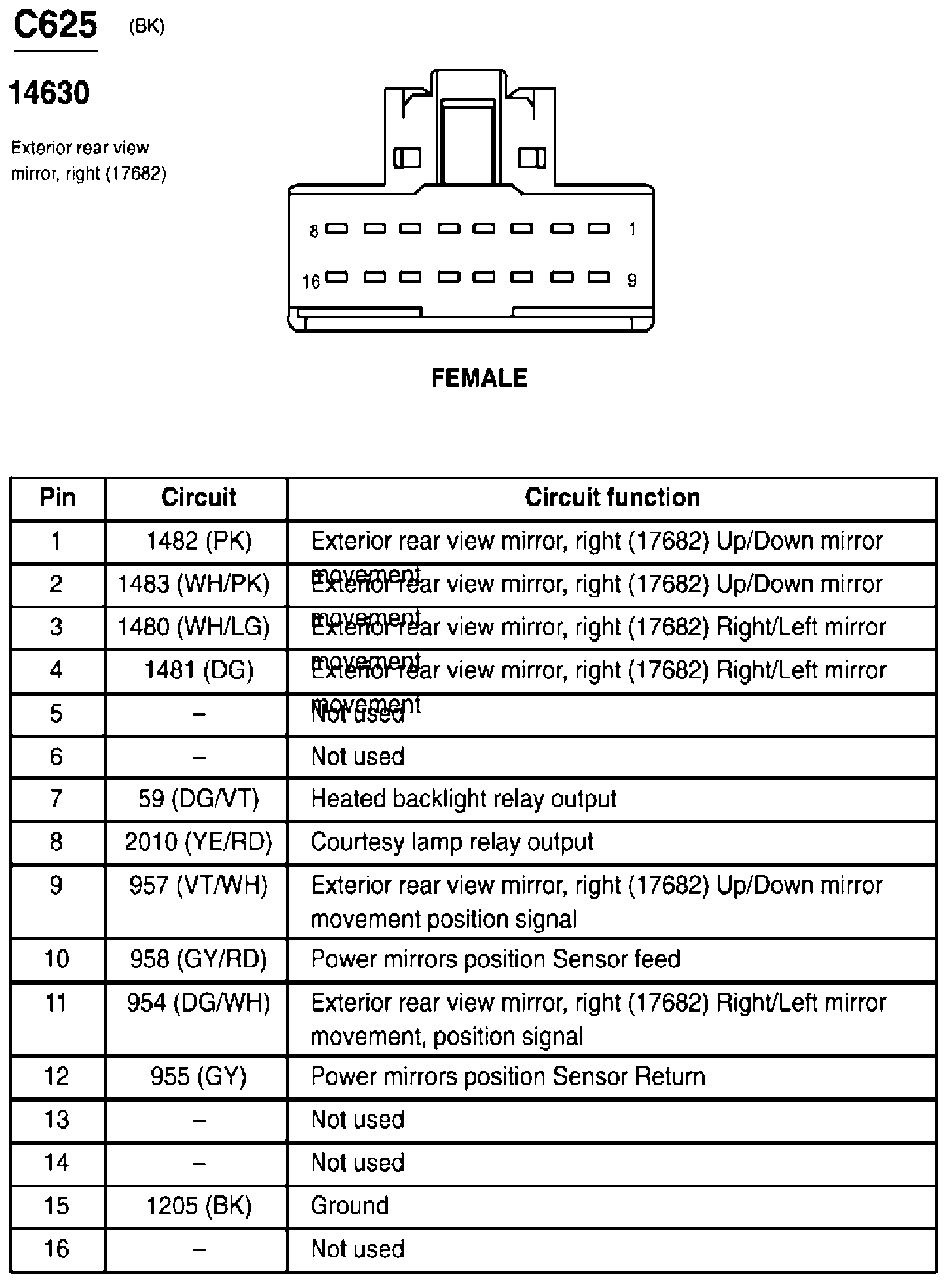

Fig 149: Exterior Rear View Mirror, Right Connector End View (C625)

G07847075

Courtesy of FORD MOTOR CO.

Fig 150: Window Adjust Switch, Left Rear Connector End View (C701)

G07847076

Courtesy of FORD MOTOR CO.

Fig 151: Speaker, Left Rear Connector End View (C702)

G07847077

Courtesy of FORD MOTOR CO.

Fig 152: Power Window Motor, Left Rear Connector End View (C703)

G07847078

Courtesy of FORD MOTOR CO.

Fig 153: Door Lock Actuator, Left Rear Connector End View (C704)

G07847079

Courtesy of FORD MOTOR CO.

Fig 154: Inline Connector End View (C710)

G07847080

Courtesy of FORD MOTOR CO.

Fig 155: Door Ajar Switch, Left Rear Connector End View (C715)

G07847081

Courtesy of FORD MOTOR CO.

Fig 156: Window Adjust Switch, Right Rear Connector End View (C801)

G07847082

Courtesy of FORD MOTOR CO.

Fig 157: Speaker, Right Rear Connector End View (C802)

G07847083

Courtesy of FORD MOTOR CO.

Fig 158: Power Window Motor, Right Rear Connector End View (C803)

G07847084

Courtesy of FORD MOTOR CO.

Fig 159: Door Lock Actuator, Right Rear Connector End View (C804)

G07847085

Courtesy of FORD MOTOR CO.

Fig 160: Inline Connector End View (C810)

G07847086

Courtesy of FORD MOTOR CO.

Fig 161: Door Ajar Switch, Right Rear Connector End View (C820)

G07847087

Courtesy of FORD MOTOR CO.

Fig 162: High Mounted Stoplamp Connector End View (C904)

G07847088

Courtesy of FORD MOTOR CO.

Fig 163: Vanity Mirror Lamp, Right Connector End View (C906)

G07847089

Courtesy of FORD MOTOR CO.

Fig 164: Vanity Mirror Lamp, Left Connector End View (C907)

G07847090

Courtesy of FORD MOTOR CO.

Fig 165: Electronic Compass Connector End View (C909)

G07847091

Courtesy of FORD MOTOR CO.

Fig 166: Electrochromatic Inside Mirror Unit Connector End View (C911)

G07847092

Courtesy of FORD MOTOR CO.

Fig 167: Inline Connector End View (C913)

G07847093

Courtesy of FORD MOTOR CO.

Fig 168: Inline Connector End View (C919)

G07847094

Courtesy of FORD MOTOR CO.

Fig 169: Roof Opening Panel Module Connector End View (C921)

G07847095

Courtesy of FORD MOTOR CO.

Fig 170: Inline Connector End View (C922)

G07847096

Courtesy of FORD MOTOR CO.

Fig 171: Inline Connector End View (C925)

G07847097

Courtesy of FORD MOTOR CO.

Fig 172: Interior/Map Lamps Assembly, Front Connector End View (C929)

G07847098

Courtesy of FORD MOTOR CO.

Fig 173: Overhead Console Connector End View (C930)

G07847099

Courtesy of FORD MOTOR CO.

Fig 174: Inline Connector End View (C935)

G07847100

Courtesy of FORD MOTOR CO.

Fig 175: Inline Connector End View (C936)

G07847101

Courtesy of FORD MOTOR CO.

Fig 176: Interior/Map Lamp Assembly, Second Row Seat Connector End View (C961)

G07847102

Courtesy of FORD MOTOR CO.

Fig 177: Interior/Map Lamp Assembly Third Row Seat Connector End View (C963)

G07847103

Courtesy of FORD MOTOR CO.

Fig 178: Auxiliary Function Selector Switch Assembly, Rear Connector End View (C990)

G07847104

Courtesy of FORD MOTOR CO.

Fig 179: Inline Connector End View (C991)

G07847105

Courtesy of FORD MOTOR CO.

Fig 180: Auxiliary Coolant Pump Relay Connector End View (C1005)

G07847106

Courtesy of FORD MOTOR CO.

Fig 181: Fog Lamp Relay Connector End View (C1007)

G07847107

Courtesy of FORD MOTOR CO.

Fig 182: A/C Clutch Relay Connector End View (C1008)

G07847108

Courtesy of FORD MOTOR CO.

Fig 183: Blower Motor Relay Connector End View (C1011)

G07847109

Courtesy of FORD MOTOR CO.

Fig 184: PCM Power Relay Connector End View (C1016)

G07847110

Courtesy of FORD MOTOR CO.

Fig 185: Starter Relay Connector End View (C1017)

G07847111

Courtesy of FORD MOTOR CO.

Fig 186: PCM Power Diode Connector End View (C1018)

G07847112

Courtesy of FORD MOTOR CO.

Fig 187: High Beam Lamp, Left Front Connector End View (C1020)

G07847113

Courtesy of FORD MOTOR CO.

Fig 188: Headlamp, Left Connector End View (C1021)

G07847114

Courtesy of FORD MOTOR CO.

Fig 189: Park/Turn Lamp, Left Front Connector End View (C1023)

G07847115

Courtesy of FORD MOTOR CO.

Fig 190: Battery Junction Box (BJB) Connector End View (C1035)

G07847116

Courtesy of FORD MOTOR CO.

Fig 191: High Beam Lamp, Right Front Connector End View (C1040)

G07847117

Courtesy of FORD MOTOR CO.

Fig 192: Headlamp, Right Connector End View (C11041)

G07847118

Courtesy of FORD MOTOR CO.

Fig 193: Park/Turn Lamp, Right Front Connector End View (C1043)

G07847119

Courtesy of FORD MOTOR CO.

Fig 194: Engine Cooling Fan Motor Connector End View (C1048)

G07847120

Courtesy of FORD MOTOR CO.

Fig 195: Fuel Pump Relay Connector End View (C1051)

G07847121

Courtesy of FORD MOTOR CO.

Fig 196: Engine Coolant Temperature (ECT) Sensor Connector End View (C1064)

G07847122

Courtesy of FORD MOTOR CO.

Fig 197: Low Coolant Level Switch Connector End View (C1069)

G07847123

Courtesy of FORD MOTOR CO.

Fig 198: Fuel Rail Pressure/Temperature Sensor Connector End View (C1073)

G07847124

Courtesy of FORD MOTOR CO.

Fig 199: A/C Compressor Clutch Diode Connector End View (C1086)

G07847125

Courtesy of FORD MOTOR CO.

Fig 200: Battery Connector End View (C1100a)

G07847126

Courtesy of FORD MOTOR CO.

Fig 201: Battery Connector End View (C1100b)

G07847127

Courtesy of FORD MOTOR CO.

Fig 202: Low Beam Lamp, Left Front Connector End View (C1111)

G07847128

Courtesy of FORD MOTOR CO.

Fig 203: Low Beam Lamp, Right Front Connector End View (C1112)

G07847129

Courtesy of FORD MOTOR CO.

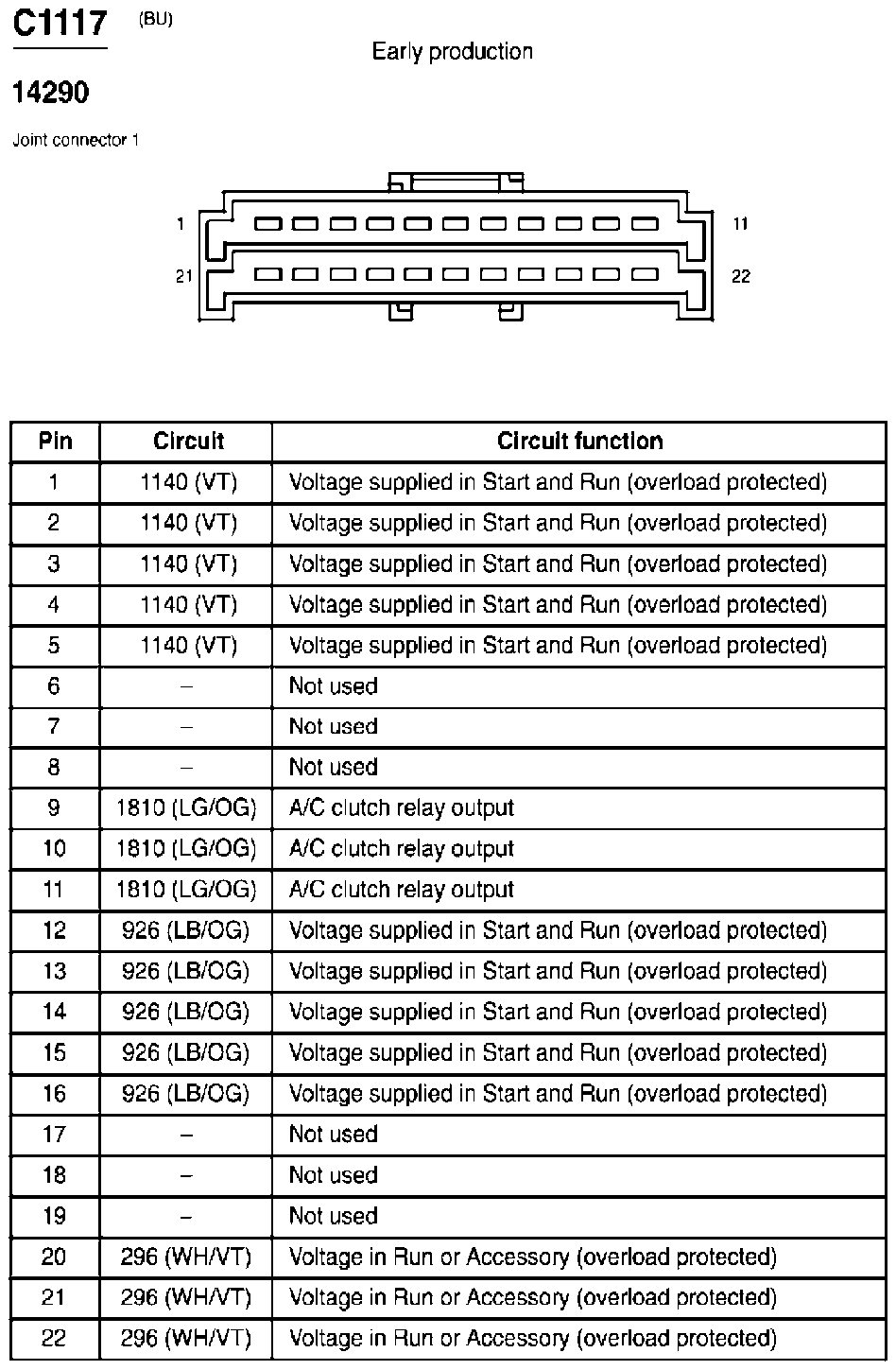

Fig 204: Joint Connector 1 Connector End View (C1117)

G07847130

Courtesy of FORD MOTOR CO.

Fig 205: Side Lamp, Right Front Connector End View (C1126)

G07847131

Courtesy of FORD MOTOR CO.

Fig 206: Side Lamp, Left Front Connector End View (C1127)

G07847132

Courtesy of FORD MOTOR CO.

Fig 207: Electric EGR Motor Connector End View (C1160)

G07847133

Courtesy of FORD MOTOR CO.

Fig 208: Electronic Throttle Control (ETC) Module Connector End View (C1189)

G07847134

Courtesy of FORD MOTOR CO.

Fig 209: Vapor Management Valve Connector End View (C1195)

G07847135

Courtesy of FORD MOTOR CO.

Fig 210: Ignition Transformer Capacitor Connector End View (C1196)

G07847136

Courtesy of FORD MOTOR CO.

Fig 211: Headlamp, Left Connector End View (C1284)

G07847137

Courtesy of FORD MOTOR CO.

Fig 212: Headlamp, Right Connector End View (C1285)

G07847138

Courtesy of FORD MOTOR CO.

Fig 213: Two-Way Washer Pump Motor Connector End View (C1397)

G07847139

Courtesy of FORD MOTOR CO.

Fig 214: Forward Crash Sensor, Left Connector End View (C1465)

G07847140

Courtesy of FORD MOTOR CO.

Fig 215: Forward Crash Sensor, Right Connector End View (C1466)

G07847141

Courtesy of FORD MOTOR CO.

Fig 216: Windshield Wiper Relay Connector End View (C1491)

G07847142

Courtesy of FORD MOTOR CO.

Fig 217: Adjustable Pedal Motor Connector End View (C2003)

G07847143

Courtesy of FORD MOTOR CO.

Fig 218: Front Blower Motor Connector End View (C2004)

G07847144

Courtesy of FORD MOTOR CO.

Fig 219: Clock Connector End View (C2016)

G07847145

Courtesy of FORD MOTOR CO.

Fig 220: Power Point, Instrument Panel Connector End View (C2033)

G07847146

Courtesy of FORD MOTOR CO.

Fig 221: Accelerator Pedal Position Sensor Connector End View (C2040)

G07847147

Courtesy of FORD MOTOR CO.

Fig 222: Illumination Dimmer Connector End View (C2065)

G07847148

Courtesy of FORD MOTOR CO.

Fig 223: Adjustable Pedal Switch Connector End View (C2089)

G07847149

Courtesy of FORD MOTOR CO.

Fig 224: Temperature Blend Door Actuator, Driver Connector End View (C2091)

G07847150

Courtesy of FORD MOTOR CO.

Fig 225: Temperature Blend Door Actuator, Passenger Connector End View (C2092)

G07847151

Courtesy of FORD MOTOR CO.

Fig 226: Traction Assist/Parking Aid Disable Switch Connector End View (C2114)

G07847152

Courtesy of FORD MOTOR CO.

Fig 227: Adjustable Pedal Motor Connector End View (C2159)

G07847153

Courtesy of FORD MOTOR CO.

Fig 228: Blower Motor Resistor Connector End View (C2185)

G07847154

Courtesy of FORD MOTOR CO.

Fig 229: Redundant Pedal Switch Connector End View (C2227)

G07847155

Courtesy of FORD MOTOR CO.

Fig 230: Adjustable Pedal Switch Connector End View (C2235)

G07847156

Courtesy of FORD MOTOR CO.

Fig 231: Liftgate/Decklid Release Switch Connector End View (C2269)

G07847157

Courtesy of FORD MOTOR CO.

Fig 232: Inline Connector End View (C2269)

G07847158

Courtesy of FORD MOTOR CO.

Fig 233: Clock Spring Connector End View (C2274a)

G07847159

Courtesy of FORD MOTOR CO.

Fig 234: Clock Spring Connector End View (C2274b)

G04597680

Courtesy of FORD MOTOR CO.

Fig 235: Module Door Actuator Connector End View (C2278)

G04597681

Courtesy of FORD MOTOR CO.

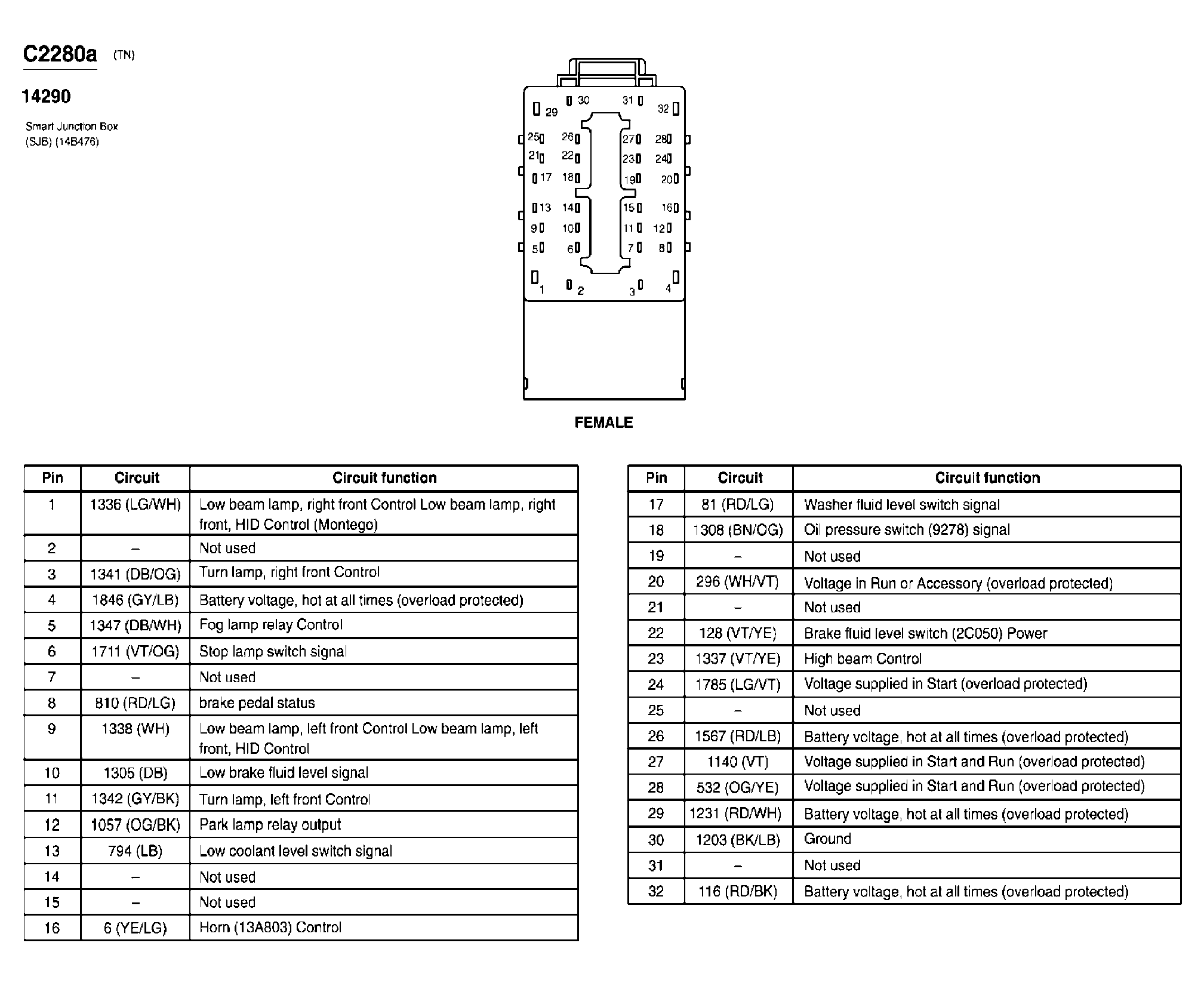

Fig 236: Smart Junction Box (SJB) Connector End View (C2280a)

G04597682

Courtesy of FORD MOTOR CO.

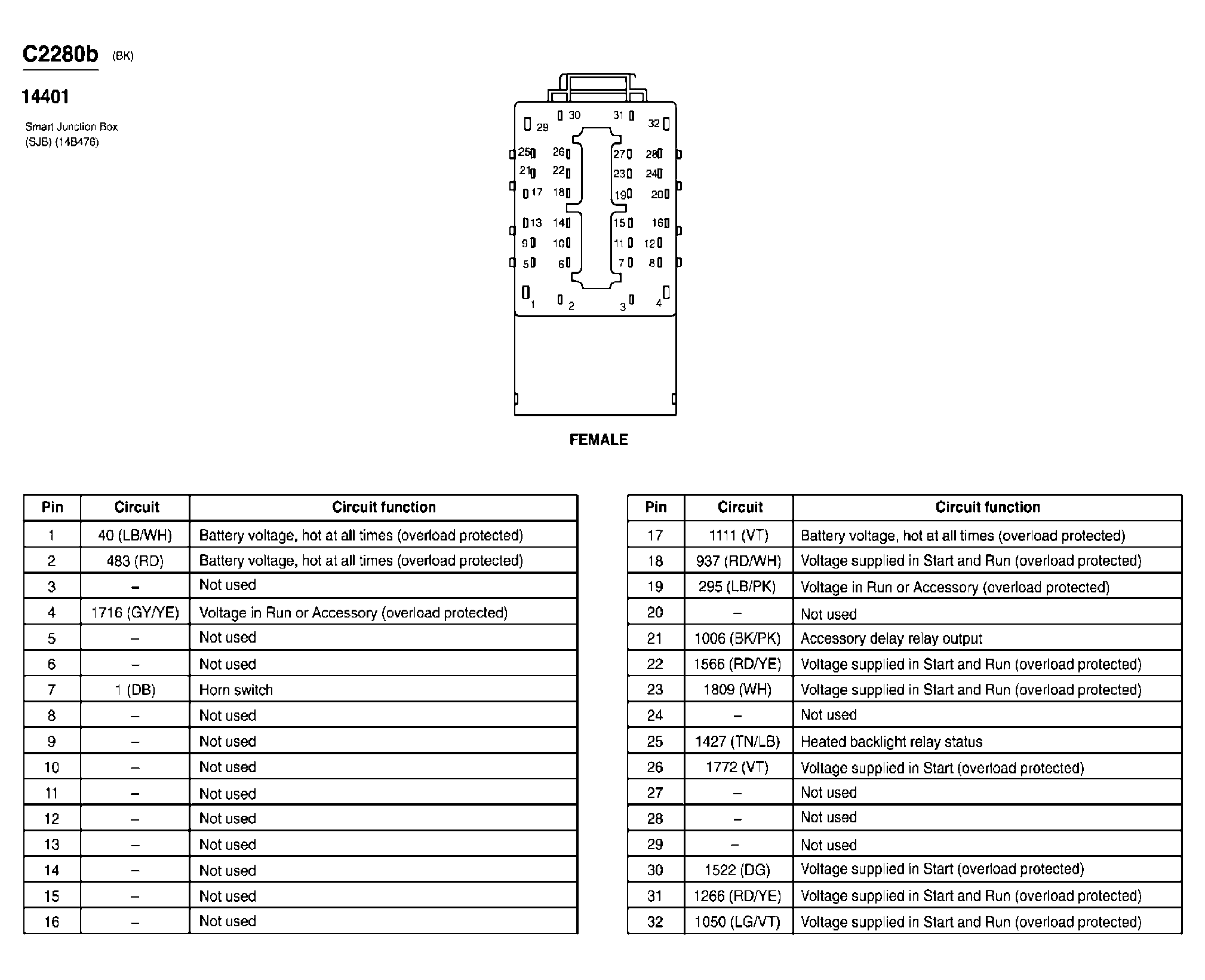

Fig 237: Smart Junction Box (SJB) Connector End View (C2280b)

G04597683

Courtesy of FORD MOTOR CO.

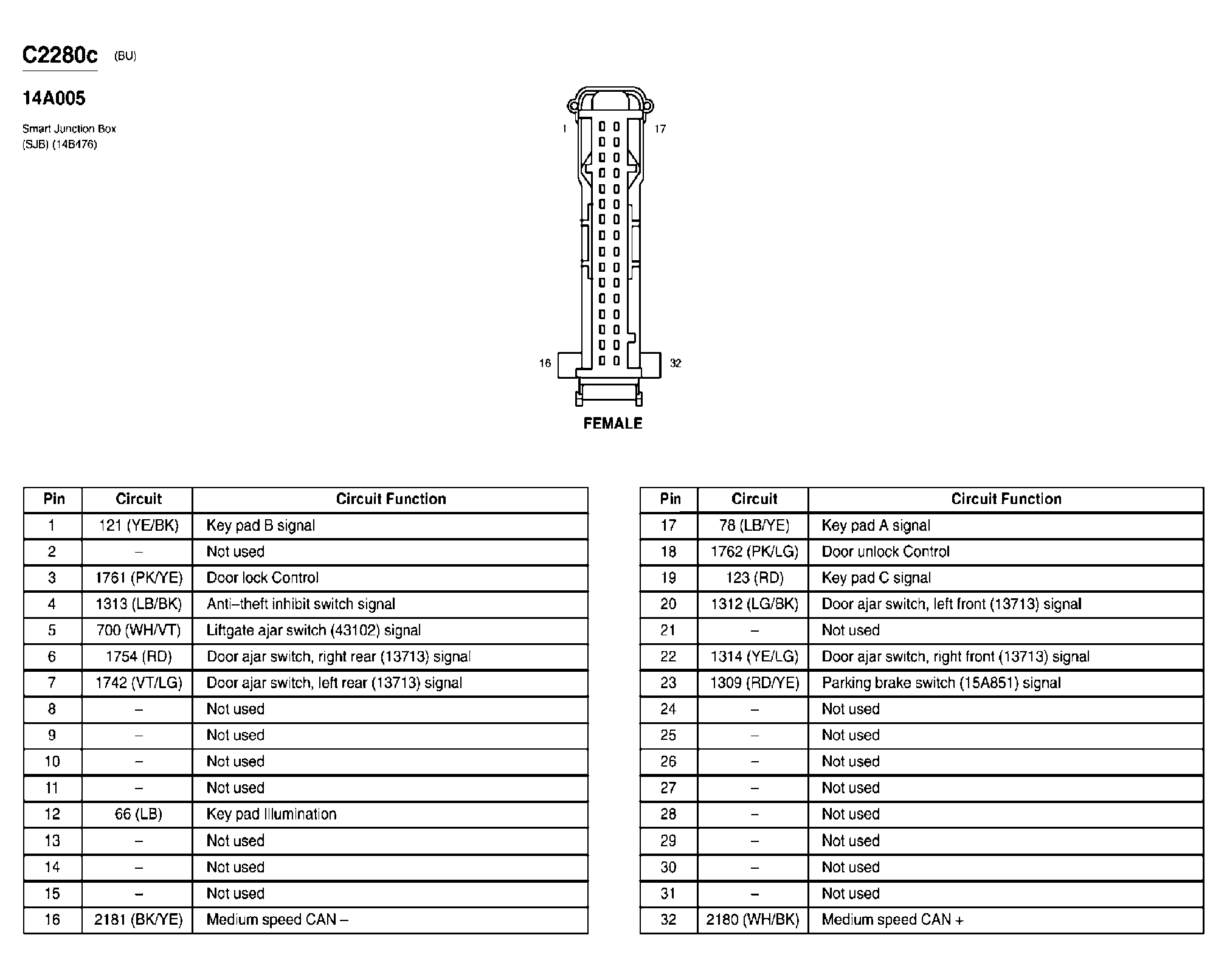

Fig 238: Smart Junction Box (SJB) Connector End View (C2280c)

G04597684

Courtesy of FORD MOTOR CO.

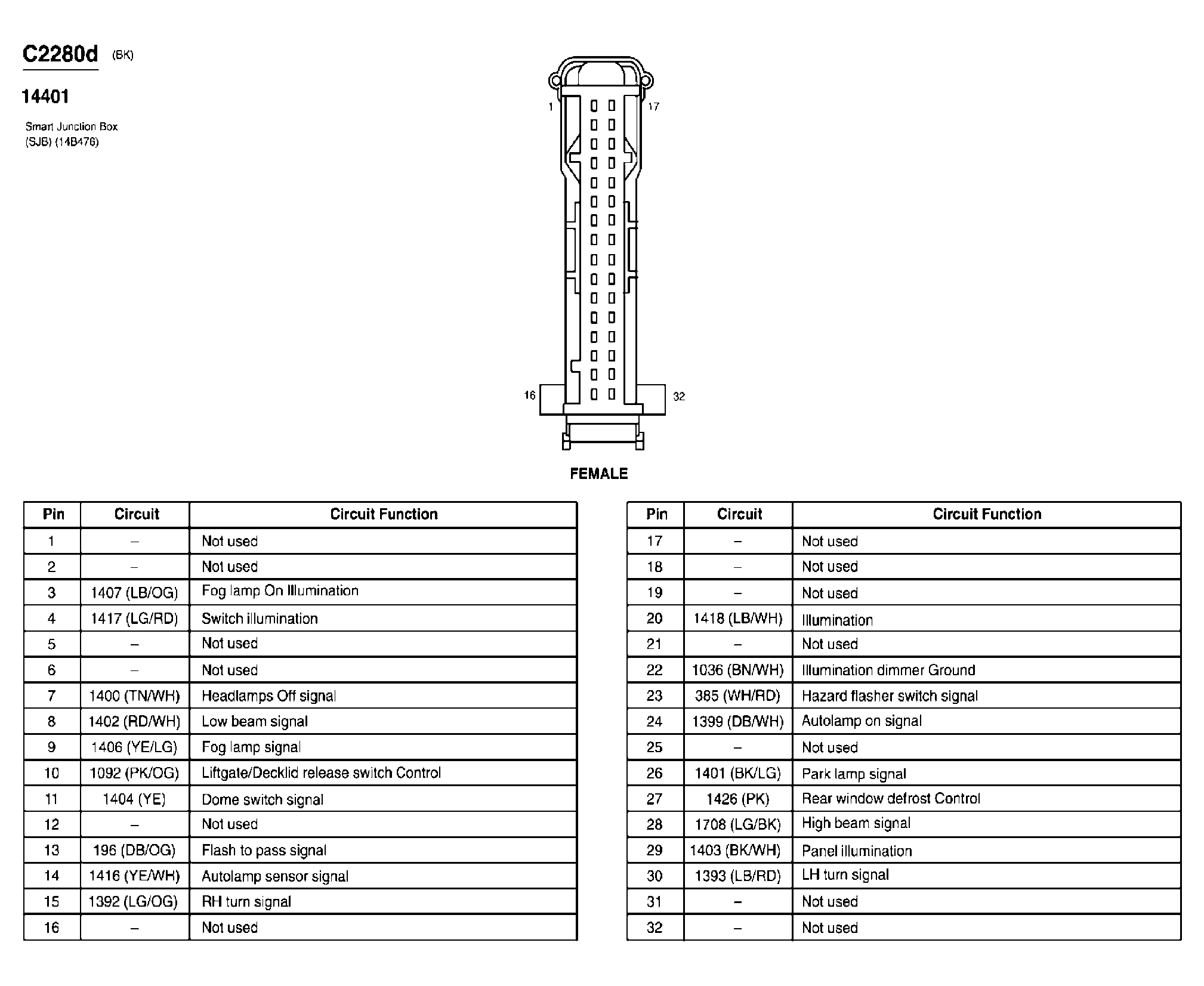

Fig 239: Smart Junction Box (SJB) Connector End View (C2280d)

G04597685

Courtesy of FORD MOTOR CO.

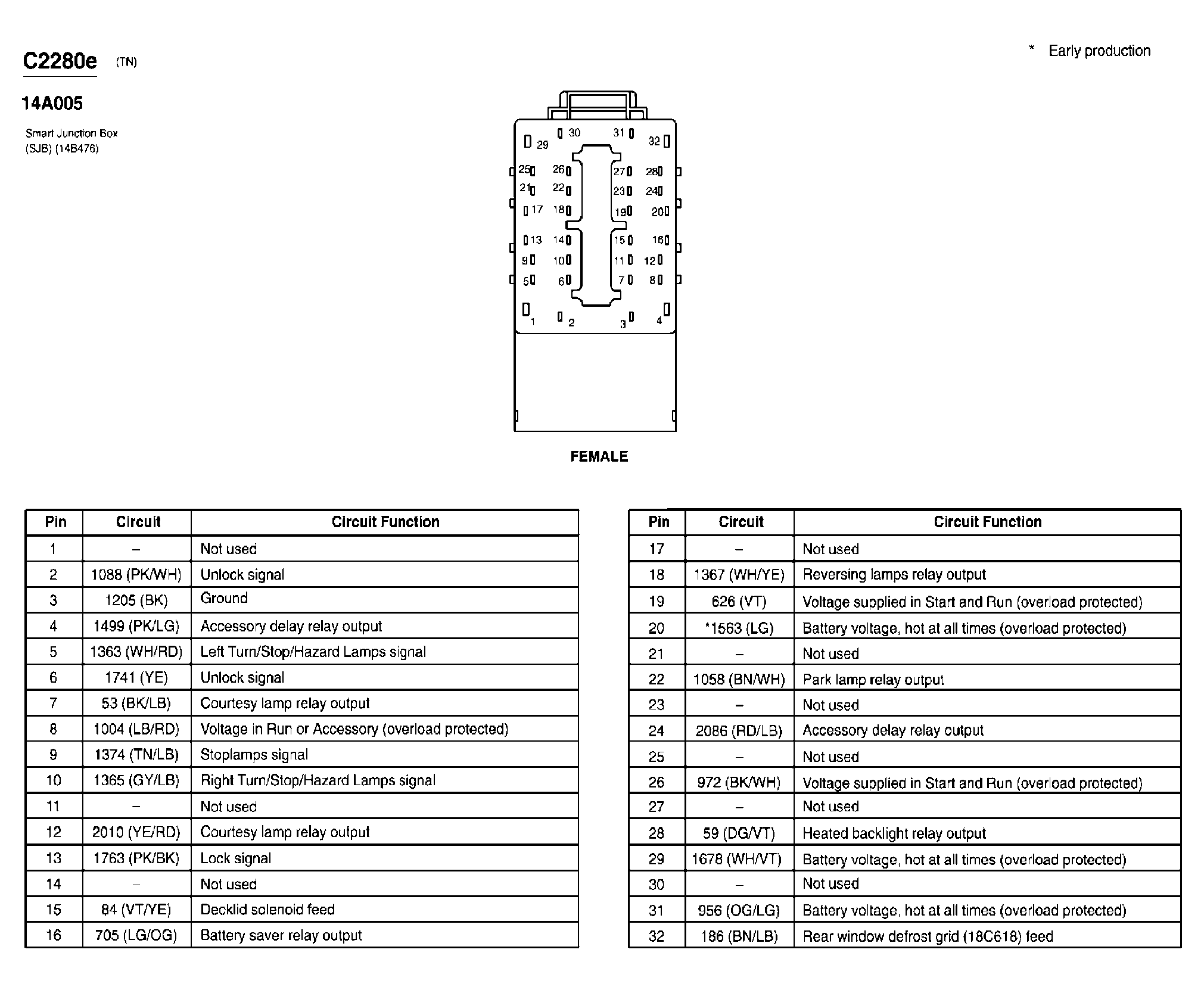

Fig 240: Smart Junction Box (SJB) Connector End View (C2280e)

G04597686

Courtesy of FORD MOTOR CO.

Fig 241: Smart Junction Box (SJB) Connector End View (C2280g)

G07847160

Courtesy of FORD MOTOR CO.

Fig 242: Passenger Air Bag Deactivation (PAD) Indicator Connector End View (C2286)

G07847161

Courtesy of FORD MOTOR CO.

Fig 243: Inline Connector End View (C3007)

G07847162

Courtesy of FORD MOTOR CO.

Fig 244: Auxiliary Blower Motor Connector End View (C3021)

G07847163

Courtesy of FORD MOTOR CO.

Fig 245: Auxiliary Blower Motor Resistor Assembly Connector End View (C3022)

G07847164

Courtesy of FORD MOTOR CO.

Fig 246: Subwoofer Amplifier Connector End View (C3041)

G07847165

Courtesy of FORD MOTOR CO.

Fig 247: Seat Pressure Sensor Connector End View (C3042)

G07847166

Courtesy of FORD MOTOR CO.

Fig 248: Inline Connector End View (C3047)

G07847167

Courtesy of FORD MOTOR CO.

Fig 249: Inline Connector End View (C3049)

G04597689

Courtesy of FORD MOTOR CO.

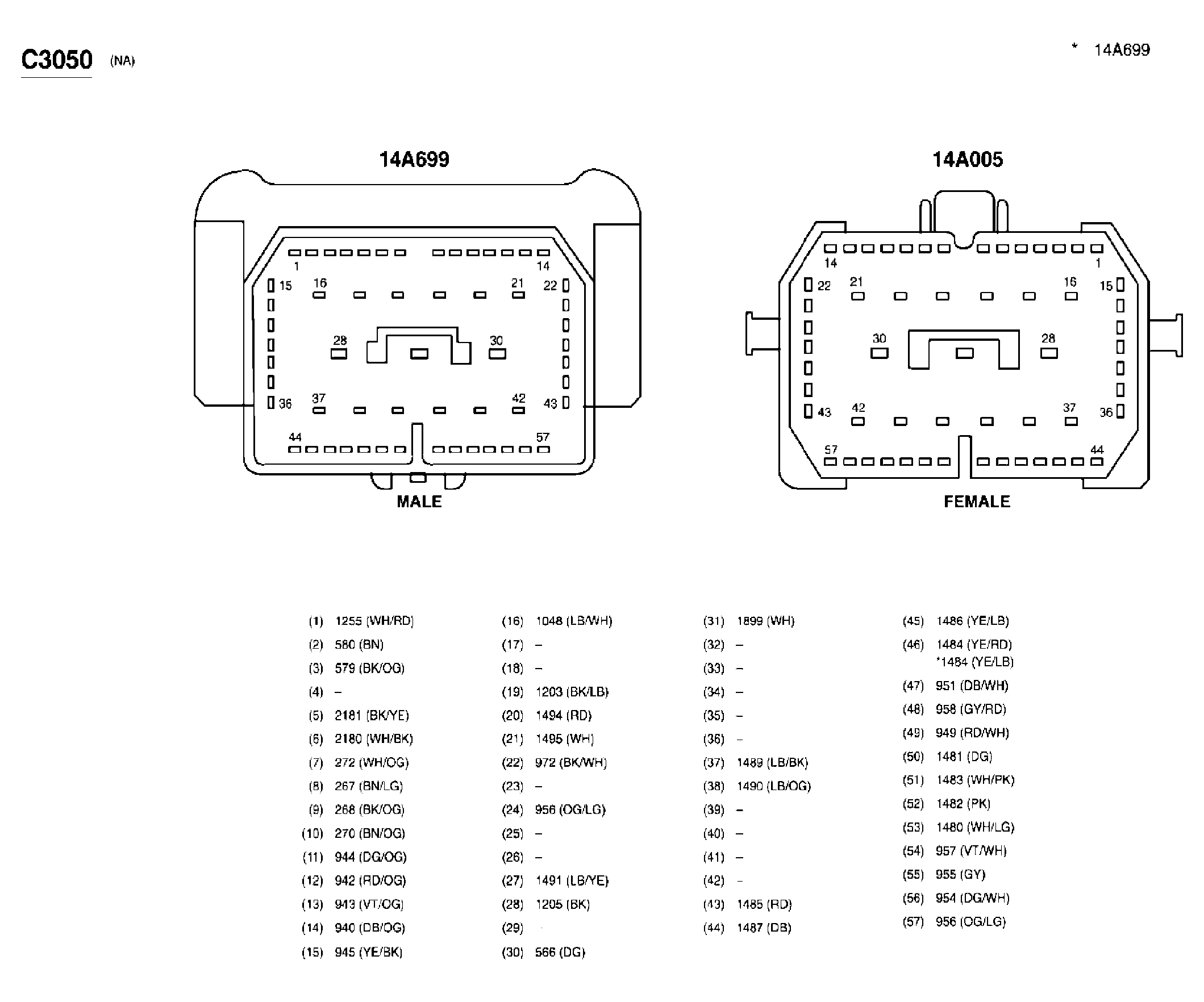

Fig 250: Inline Connector End View (C3050)

G04597690

Courtesy of FORD MOTOR CO.

Fig 251: Safety Belt Buckle Switch, Driver Connector End View (C3065)

G07847168

Courtesy of FORD MOTOR CO.

Fig 252: Safety Belt Buckle Switch, Passenger Connector End View (C3066)

G07847169

Courtesy of FORD MOTOR CO.

Fig 253: Fuel Sender Connector End View (C3104)

G07847170

Courtesy of FORD MOTOR CO.

Fig 254: Wheel Speed Sensor, Right Rear Connector End View (C3116)

G07847171

Courtesy of FORD MOTOR CO.

Fig 255: Wheel Speed Sensor, Left Rear Connector End View (C3117)

G07847172

Courtesy of FORD MOTOR CO.

Fig 256: Subwoofer, Left Rear Connector End View (C3120)

G07847173

Courtesy of FORD MOTOR CO.

Fig 257: Subwoofer, Right Rear Connector End View (C3121)

G07847174

Courtesy of FORD MOTOR CO.

Fig 258: Fuel Tank Pressure Transducer Sensor Connector End View (C3123)

G07847175

Courtesy of FORD MOTOR CO.

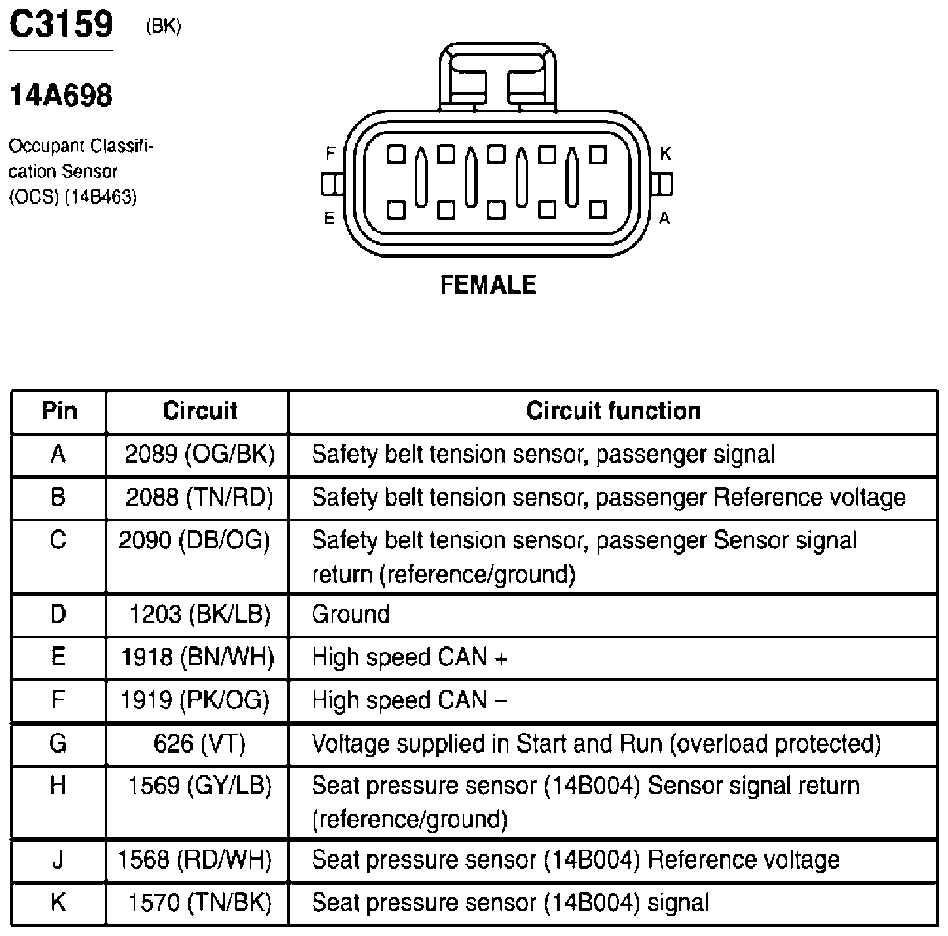

Fig 259: Occupant Classification Sensor Connector End View (C3159)

G07847176

Courtesy of FORD MOTOR CO.

Fig 260: Driver Seat Recliner Motor Connector End View (C3187)

G07847177

Courtesy of FORD MOTOR CO.

Fig 261: Passenger Seat Recliner Motor Connector End View (C3189)

G07847178

Courtesy of FORD MOTOR CO.

Fig 262: Seat Adjust Switch, Passenger Side Front Connector End View (C3190)

G07847179

Courtesy of FORD MOTOR CO.

Fig 263: Inline Connector End View (C3205)

G07847180

Courtesy of FORD MOTOR CO.

Fig 264: Inline Connector End View (C3206)

G07847181

Courtesy of FORD MOTOR CO.

Fig 265: Side Impact Sensor, Driver 1 Connector End View (C3209)

G07847182

Courtesy of FORD MOTOR CO.

Fig 266: Side Impact Sensor, Driver 2 Connector End View (C3210)

G07847183

Courtesy of FORD MOTOR CO.

Fig 267: Side Impact Sensor, Passenger 1 Connector End View (C3211)

G07847184

Courtesy of FORD MOTOR CO.

Fig 268: Side Impact Sensor, Passenger 2 Connector End View (C3212)

G07847185

Courtesy of FORD MOTOR CO.

Fig 269: Side Air Bag Module, Driver Connector End View (C3226)

G07847186

Courtesy of FORD MOTOR CO.

Fig 270: Side Air Bag Module, Passenger Connector End View (C3227)

G07847187

Courtesy of FORD MOTOR CO.

Fig 271: Safety Belt Tension Sensor, Passenger Connector End View (C3238)

G07847188

Courtesy of FORD MOTOR CO.

Fig 272: Fuel Pump Driver Module Connector End View (C3239)

G07847189

Courtesy of FORD MOTOR CO.

Fig 273: Floor Shifter Connector End View (C3245)

G07847190

Courtesy of FORD MOTOR CO.

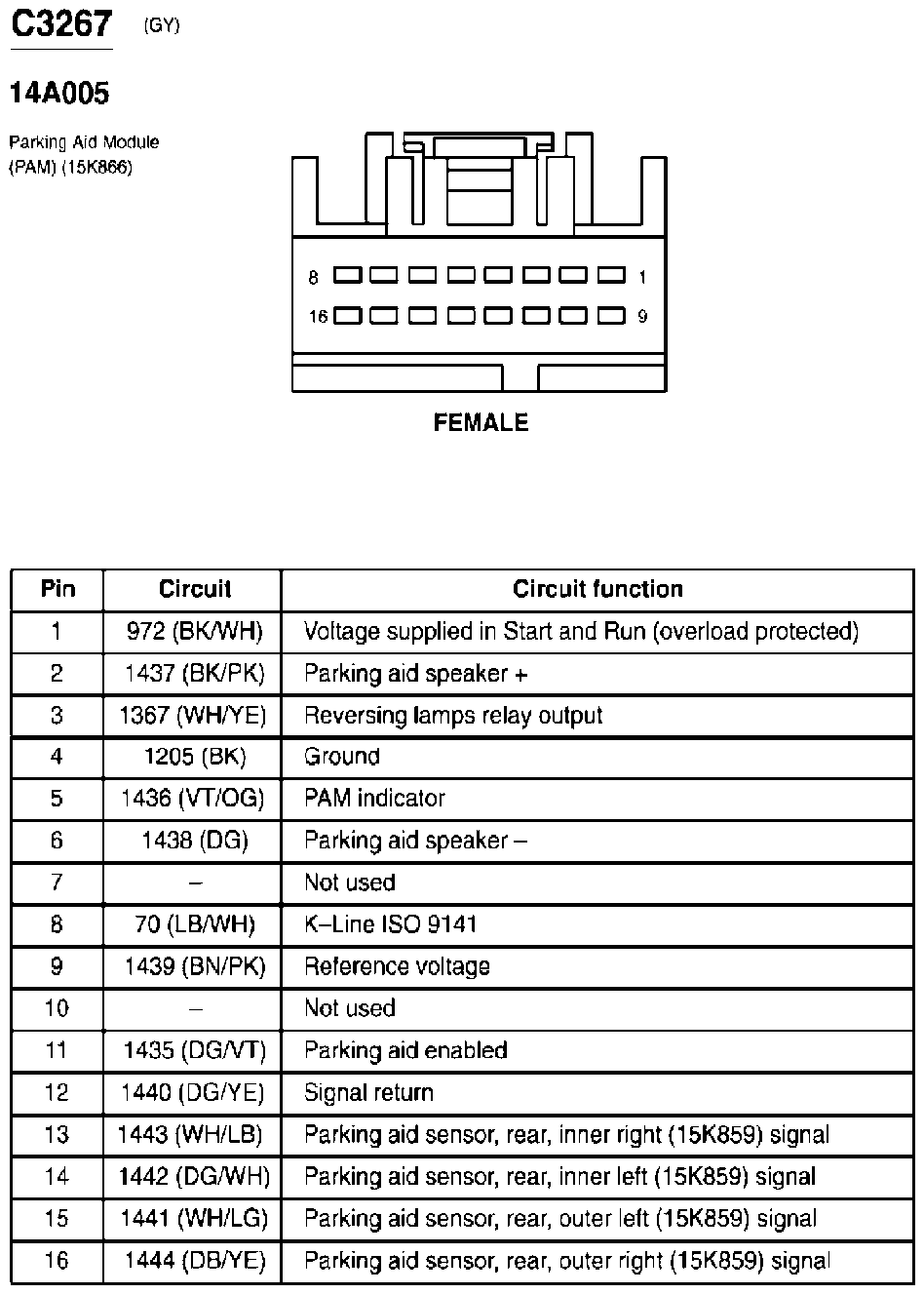

Fig 274: Parking Aid Module (PAM) Connector End View (C3267)

G07847191

Courtesy of FORD MOTOR CO.

Fig 275: Parking Aid Speaker Connector End View (C3268)

G07847192

Courtesy of FORD MOTOR CO.

Fig 276: Differential Electronic Module (DEM) Connector End View (C3269)

G07847193

Courtesy of FORD MOTOR CO.

Fig 277: Remote Fuel Sensor Connector End View (C3270)

G07847194

Courtesy of FORD MOTOR CO.

Fig 278: Auxiliary Relay Box 1 Connector End View (C3271)

G07847195

Courtesy of FORD MOTOR CO.

Fig 279: Auxiliary Relay Box 2 Connector End View (C3272)

G07847196

Courtesy of FORD MOTOR CO.

Fig 280: Auxiliary Relay Box 3 Connector End View (C3273)

G07847197

Courtesy of FORD MOTOR CO.

Fig 281: Auxiliary Mode Actuator Connector End View (C3274)

G07847198

Courtesy of FORD MOTOR CO.

Fig 282: Auxiliary Temperature Actuator Connector End View (C3275)

G07847199

Courtesy of FORD MOTOR CO.

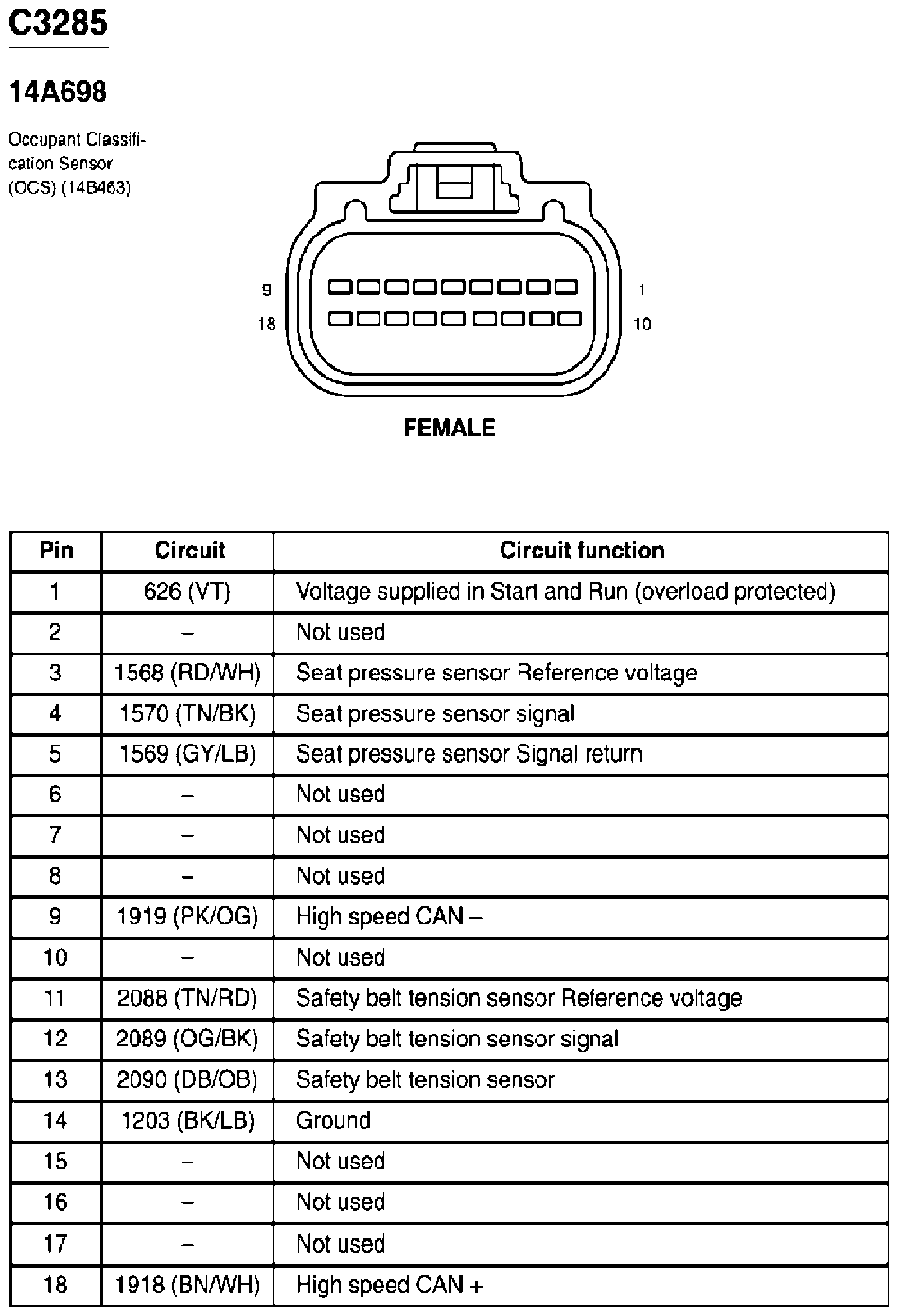

Fig 283: Occupant Classification Sensor (OCS) Connector End View (C3285)

G07847200

Courtesy of FORD MOTOR CO.

Fig 284: Parking Aid Sensor, Rear, Outer Left Connector End View (C4009)

G07847201

Courtesy of FORD MOTOR CO.

Fig 285: Parking Aid Sensor, Rear, Inner Left Connector End View (C4010)

G07847202

Courtesy of FORD MOTOR CO.

Fig 286: Parking Aid Sensor, Rear, Outer Right Connector End View (C4011)

G07847203

Courtesy of FORD MOTOR CO.

Fig 287: Parking Aid Sensor, Rear Inner Right Connector End View (C4012)

G07847204

Courtesy of FORD MOTOR CO.

Fig 288: EVAP Canister Vent Control Solenoid Connector End View (C4116)

G07847205

Courtesy of FORD MOTOR CO.

Fig 289: Liftgate Lock Actuator Connector End View (C4185)

G07847206

Courtesy of FORD MOTOR CO.

Fig 290: Decklid Solenoid Connector End View (C4302)

G07847207

Courtesy of FORD MOTOR CO.

Fig 291: Safety Canopy Bridge Resistor, Left Connector End View (C9016)

G07847208

Courtesy of FORD MOTOR CO.

Fig 292: Safety Canopy Module, Driver Connector End View (C9018)

G07847209

Courtesy of FORD MOTOR CO.

Fig 293: Safety Canopy Module, Passenger Connector End View (C9019)

G07847210

Courtesy of FORD MOTOR CO.

Fig 294: Rear Seat Entertainment (RSE) Module Connector End View (C9029)

G07847211

Courtesy of FORD MOTOR CO.

Fig 295: LED High Mounted Stop/Lamp Connector End View (C9030)

G07847212

Courtesy of FORD MOTOR CO.

Fig 296: Safety Canopy Module, Driver Connector End View (C9031)

G07847213

Courtesy of FORD MOTOR CO.

Fig 297: Safety Canopy Module, Passenger Connector End View (C9032)

G07847214

Courtesy of FORD MOTOR CO.
