Restraints Control Module (RCM): Notes

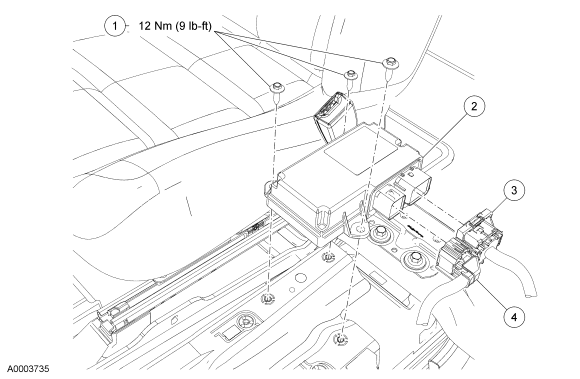

Fig 1: Exploded View Of Restraints Control Module (RCM) With Torque Specifications
GF0016914Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W707722 Restraints control module (RCM) bolts
2 14B321 RCM
3 - Large RCM electrical connector (part of 14A005)
4 - Small RCM electrical connector (part of 14401)
