Safety Belt Buckle Switch Connector

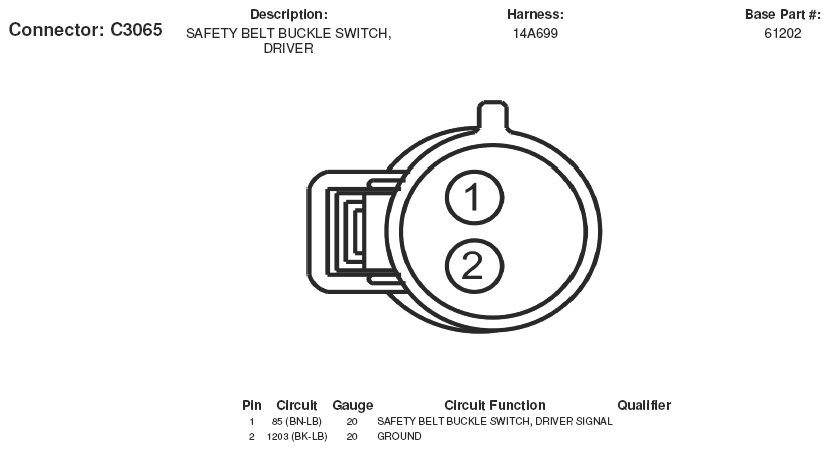

Fig 1: Safety Belt Buckle Switch Connector End View (C3065)
G05168902Courtesy of FORD MOTOR CO.

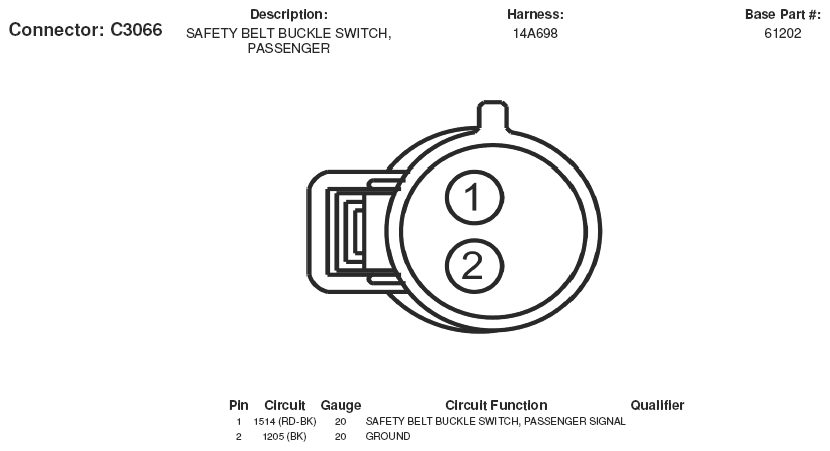

Fig 2: Safety Belt Buckle Switch Connector End View (C3066)
G05168903Courtesy of FORD MOTOR CO.
