Accelerator Cable - 2.3L: Notes

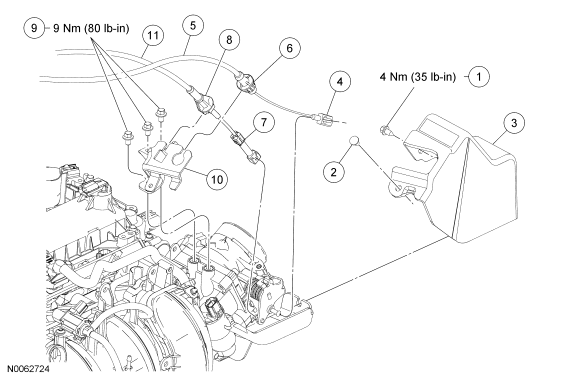

Fig 1: Exploded View Of Accelerator Cable With Torque Specifications - 2.3L (1 Of 2)

GF0042476

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W702251	Accelerator control cover shield screw
2	-	Pin-type retainer (part of 9E766)
3	9E766	Accelerator control cover shield
4	-	Accelerator cable-to-throttle body (part of 9A758)
5	9A758	Accelerator cable
6	-	Accelerator cable-to-bracket grommet (part of 9A758)
7	-	Speed control cable-to-throttle body (part of 9A825)
8	-	Speed control cable-to-bracket grommet (part of 9A825)
9	W500210	Accelerator cable bracket bolts (3 required)
10	9677	Accelerator cable bracket
11	9A825	Speed control cable

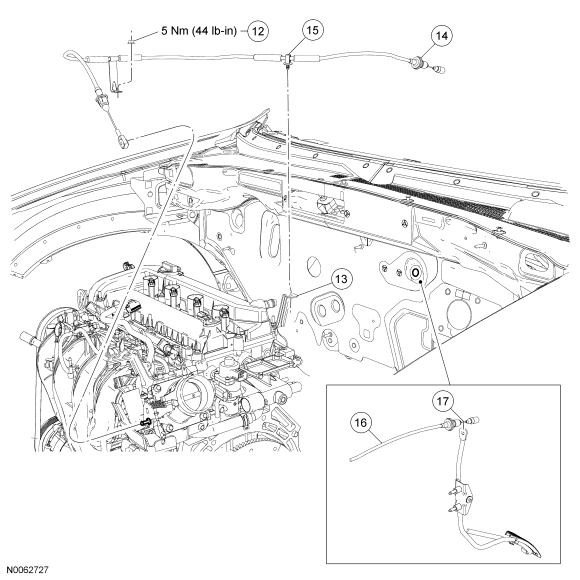

Fig 2: Exploded View Of Accelerator Cable With Torque Specifications - 2.3L (2 Of 2)

GF0042477

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
12	W520412	Accelerator cable bracket nut
13	9E728	Accelerator cable bracket
14	-	Accelerator cable grommet (part of 9A758)
15	-	Accelerator cable pin-type retainer (part of 9A758)
16	9A758	Accelerator cable
17	-	Accelerator cable to pedal (part of 9A758)
