Accessory Protocol Interface Module (APIM): Notes

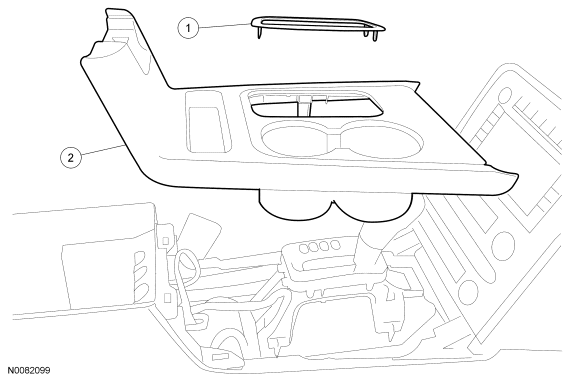

Fig 1: Floor Console Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	7E391	Floor shifter trim ring
2	045A76	Front floor console center finish panel

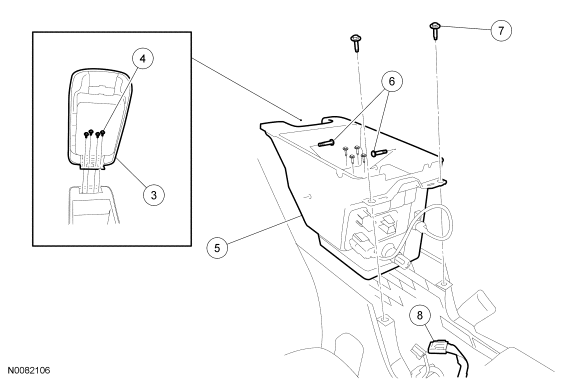

Fig 2: Floor Console Storage Bin Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
3	-	Front floor console storage bin door (part of 045A36)
4	-	Front floor console storage bin door screws (4 required)
5	-	Front floor console storage bin (part of 045A36)
6	-	Front floor console storage bin screws (2 required)
7	-	Front floor console storage bin screws (6 required)
8	-	Electrical connectors (part of 14B079)

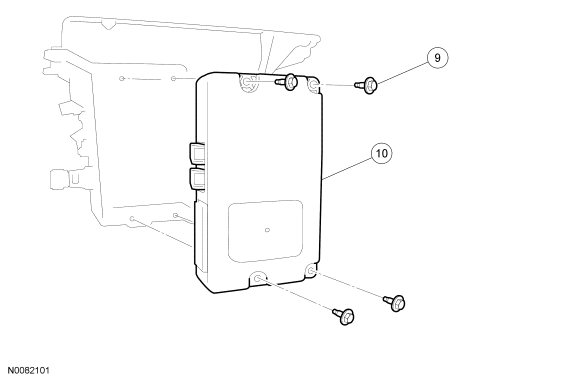

Fig 3: Accessory Protocol Interface Module (APIM)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
9	W505060-S	Accessory Protocol Interface Module (APIM) screws (4 required)
10	14D212	APIM
