Third Row Seat Interior Lamp / Map Lamp Assembly Connector

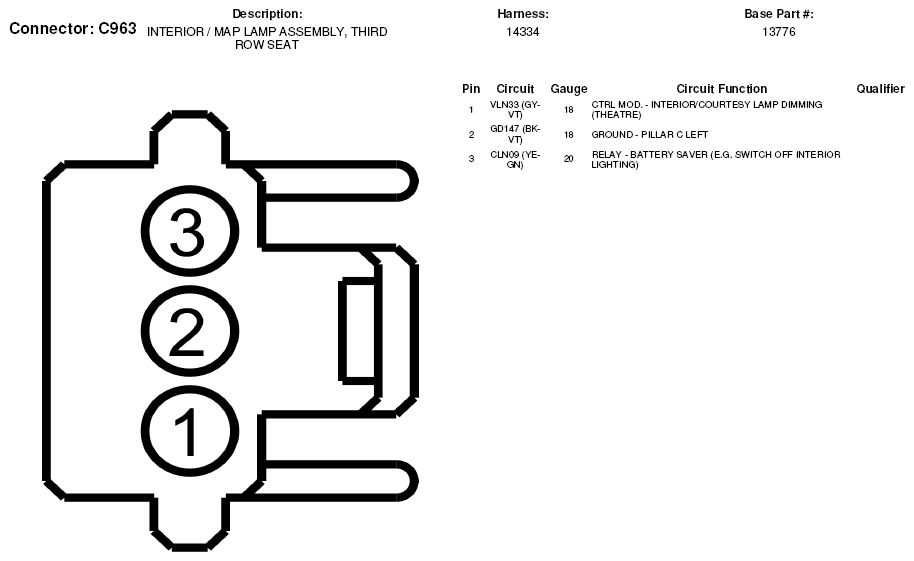

Fig 1: Third Row Seat Interior Lamp / Map Lamp Assembly Connector End View (C963)
G05603416
