Part and Tool Requirements

TRANSMISSION REPAIR PROCEDURE

This transmission repair procedure involves installing a new transmission valve body and clutch packs in the Overdrive/Direct (O/D) and forward clutch assemblies.

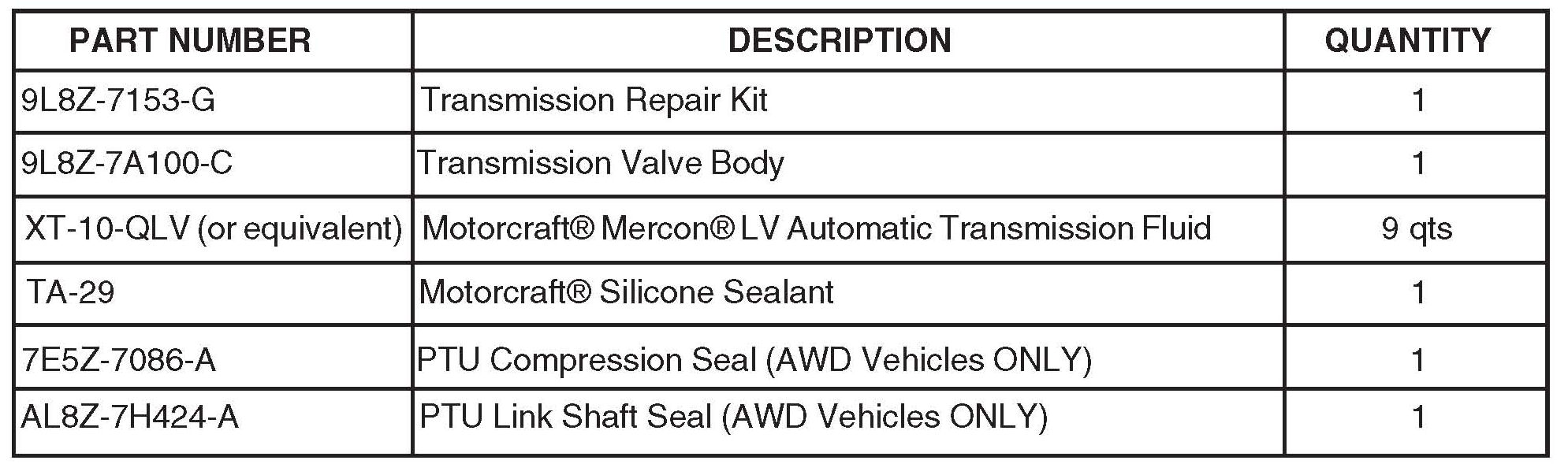

PART AND TOOL REQUIREMENTS

NOTE:
Special tools that are needed for this portion of the service procedure are as follows:

^ Transaxle Holding Fixture # 307-625 or equivalent

^ Torque Converter Retainer # 307-566

^ Torque Converter Handle # 307-091

^ Overdrive Clutch, Balance Piston and Direct Drive Clutch Compressor # 307-589/1

^ Forward/Intermediate Spring Compressor # 307-584/2

^ Dial Indicator Gauge with Holding Fixture # 100-002 or equivalent

^ Shim Selection Gauge # 307-300

^ Turbine Shaft Seal Protector # 307-635

^ Suitable Depth Gauge
