Accelerator Pedal: Notes

2.5L and 3.0L Vehicles

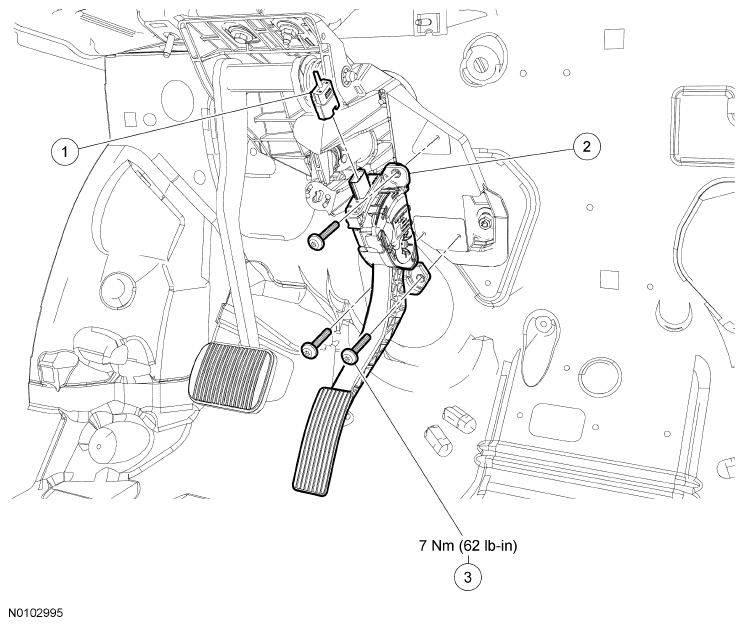

Fig 1: Identifying Accelerator Pedal Removal And Installation - 2.5L And 3.0L Vehicles
G06098496Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 14A464 Accelerator pedal electrical connector
2 9F836 Accelerator pedal and sensor assembly
3 W714332 Accelerator pedal self-tapping screw (3 required)

2.5L Hybrid Vehicles

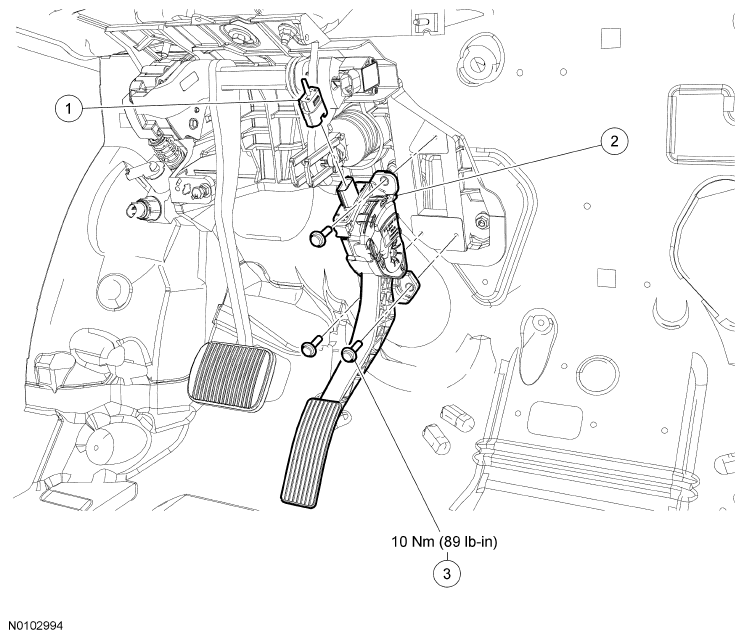

Fig 2: Identifying Accelerator Pedal Removal And Installation - 2.5L Hybrid Vehicles
G06098497Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Part Number Description
1 14A464 Accelerator pedal electrical connector
2 9F836 Accelerator pedal and sensor assembly
3 W500014 Accelerator pedal bolt (3 required)
