Symptom Related Diagnostic Procedures




Body System

Symptom Chart

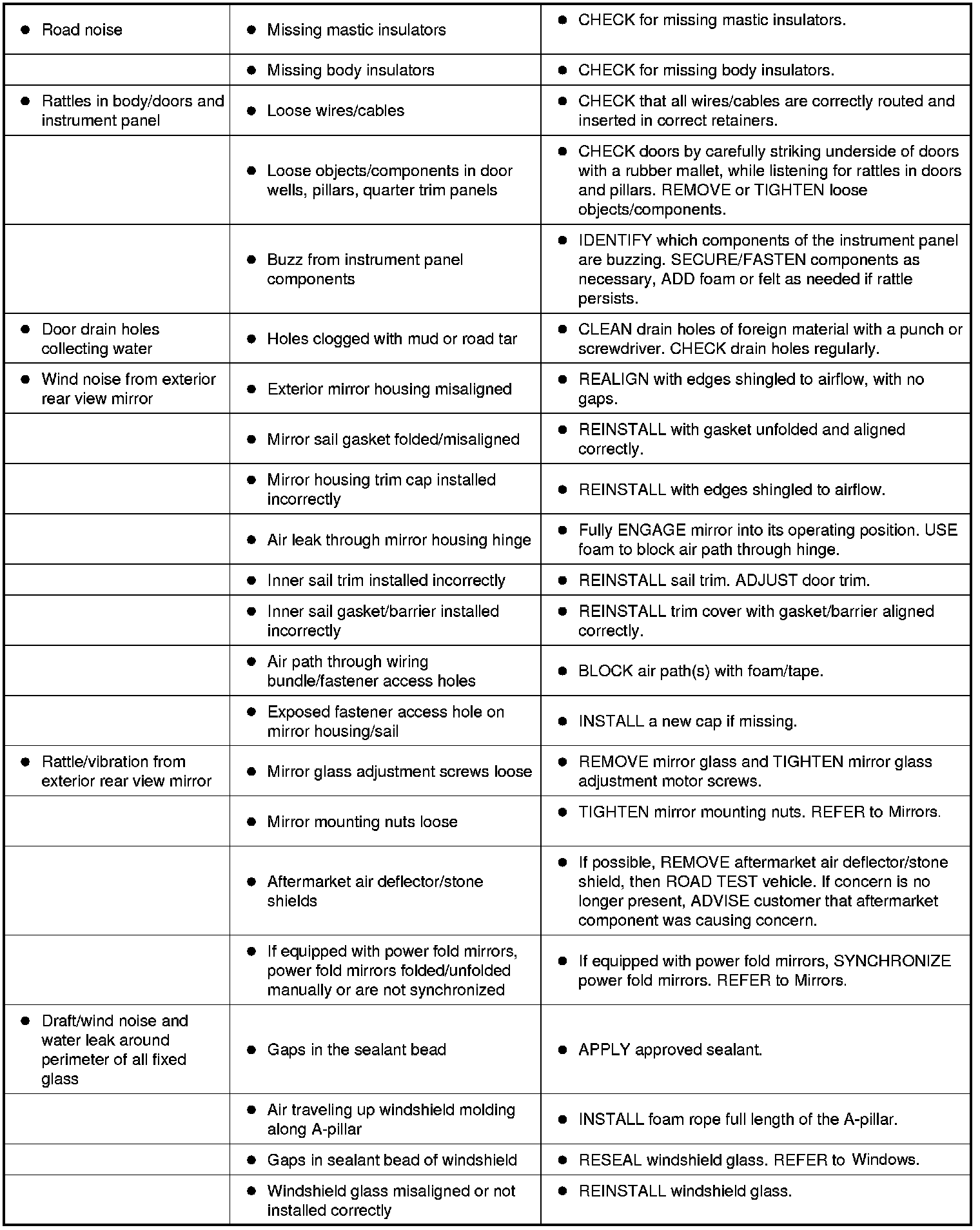

Symptom Chart - NVH (Part 1):

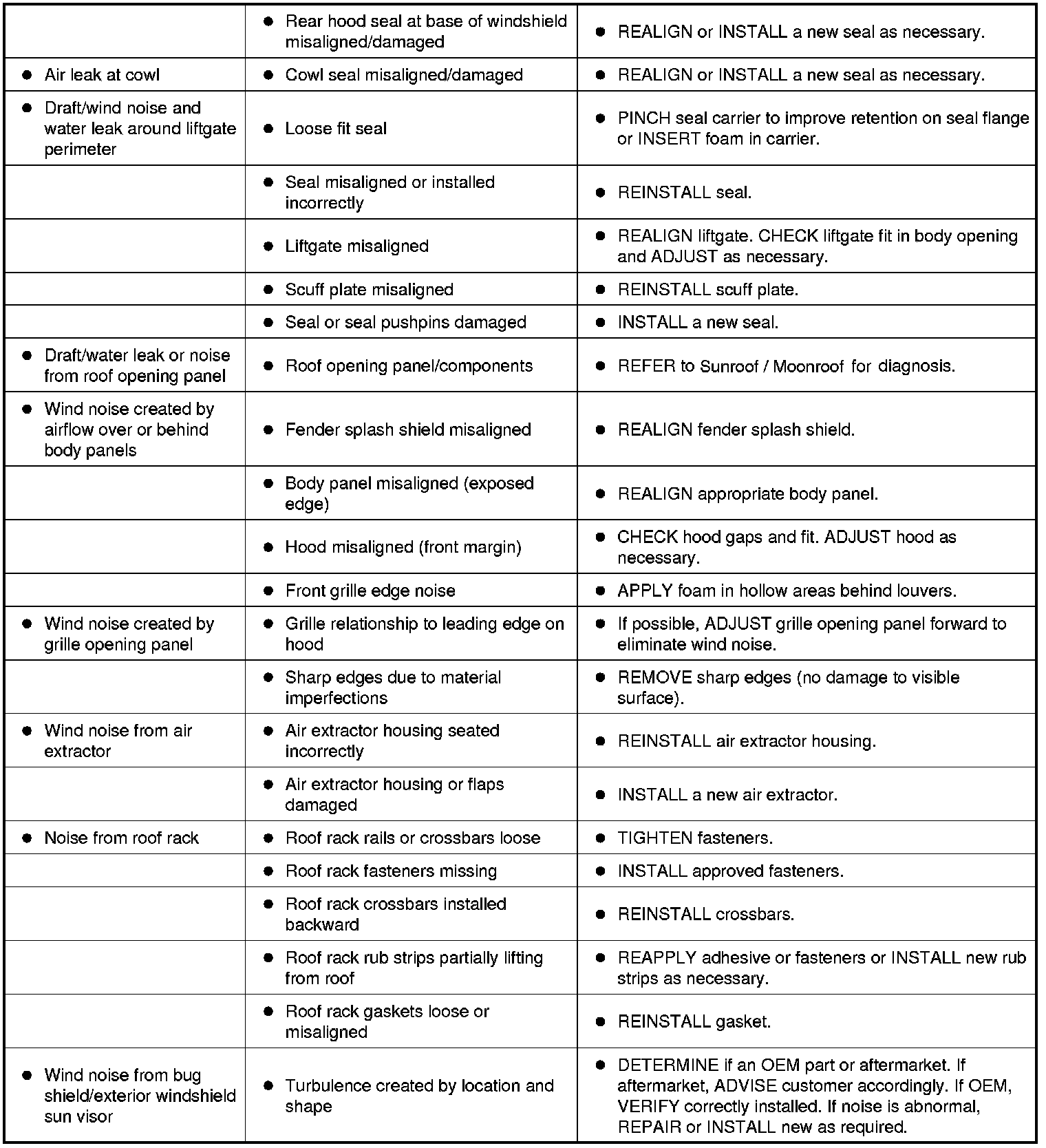

Symptom Chart - NVH (Part 2):

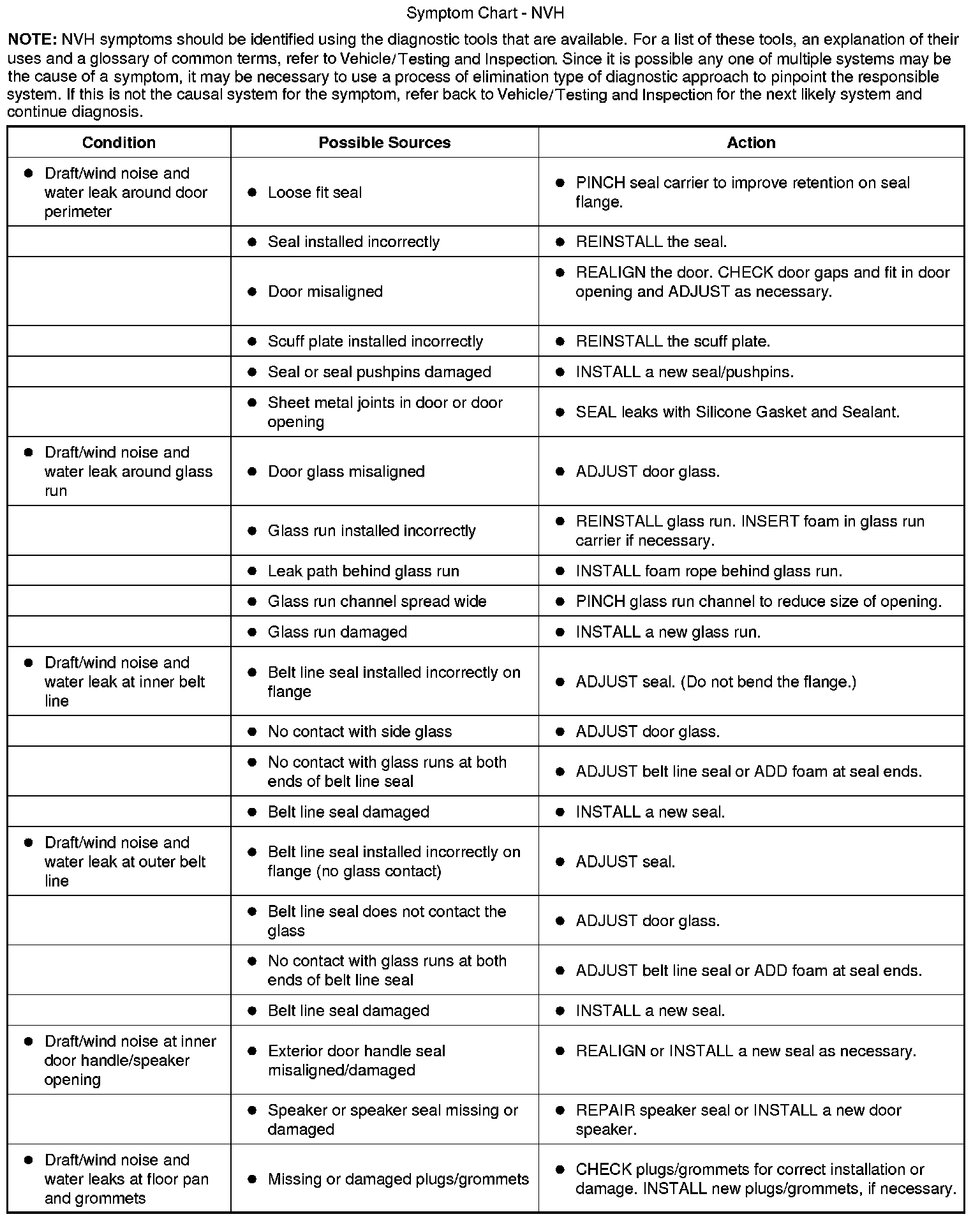

Symptom Chart - NVH (Part 3):
