Third Row Seat Interior Lamp / Map Lamp Assembly Connector - C963

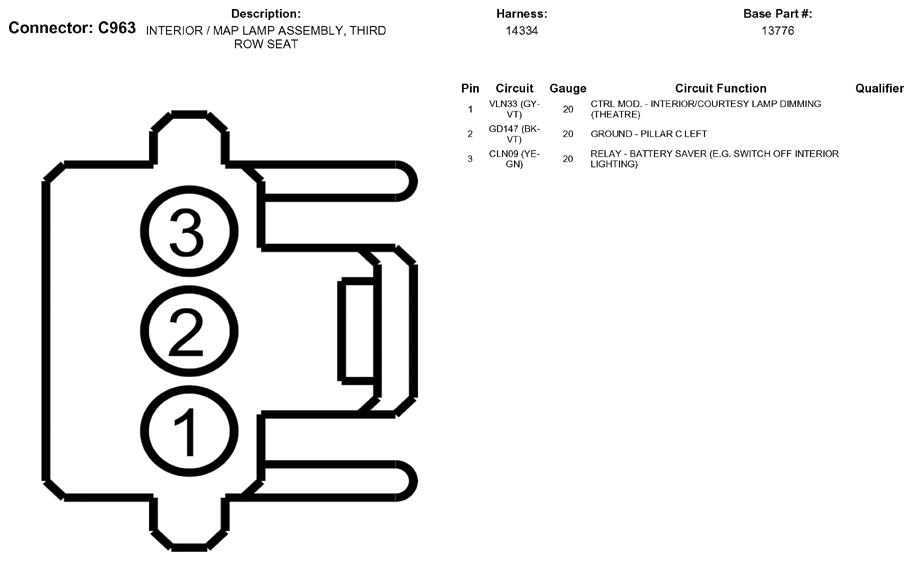

Fig 1: Third Row Seat Interior Lamp / Map Lamp Assembly Connector End View (C963)
G05790077Courtesy of FORD MOTOR CO.
