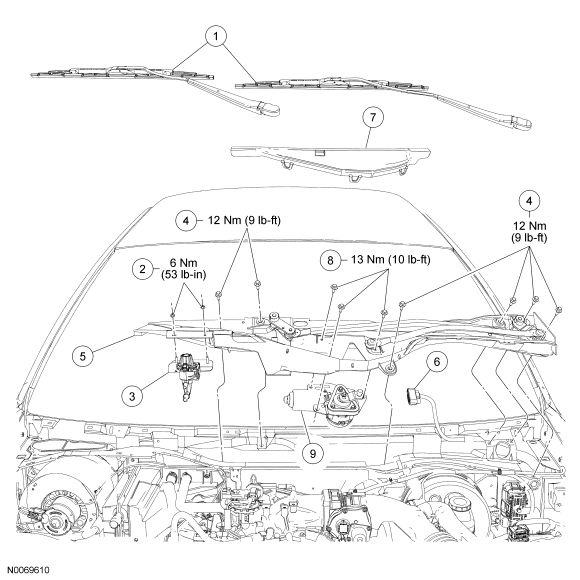

Wiper & Washer System - Exploded View
WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 17527 | Wiper pivot arms (2 required) |
| 2 | N620479-S | Evaporative emission canister purge valve nuts (2 required) |
| 3 | 9C915 | Evaporative emission canister purge valve |
| 4 | N610021-S | Wiper mounting arm and pivot shaft bolts (6 required) |
| 5 | 17566 | Wiper mounting arm and pivot shaft |
| 6 | - | Windshield wiper motor electrical connector (part of 14290) |
| 7 | - | Windshield wiper motor cover (part of 17566) |
| 8 | N605771-S | Windshield wiper motor bolts (3 required) |
| 9 | 17504 | Windshield wiper motor |
- For additional information, refer to the appropriate procedures.
