Subwoofer Connector End View - C3120

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

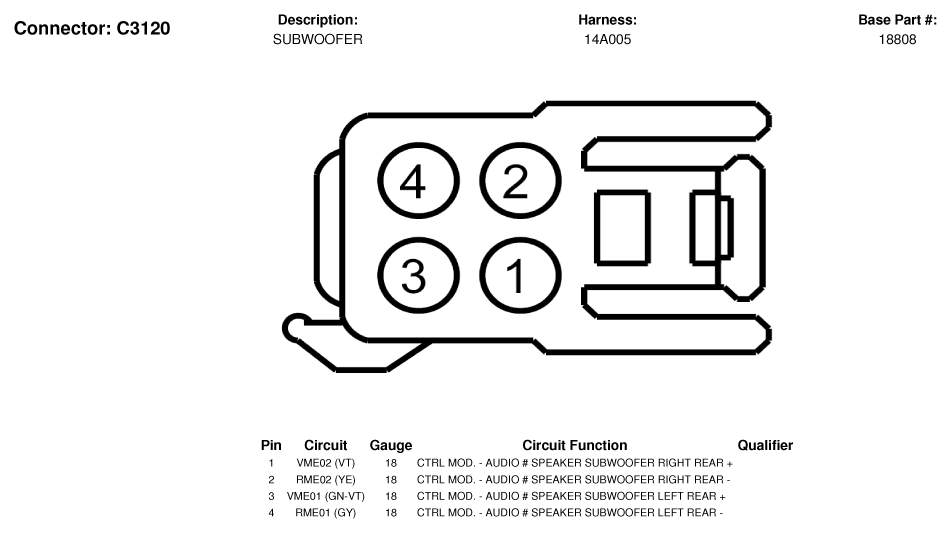

Fig 1: Subwoofer Connector End View (C3120)
G07336305Courtesy of FORD MOTOR CO.
