Trailer Tow Connector End View - C4099

WARNING: This page is about a different car, the 2011 Lincoln MKT. However, it is still accessible from the selected car via links, so may be relevant.

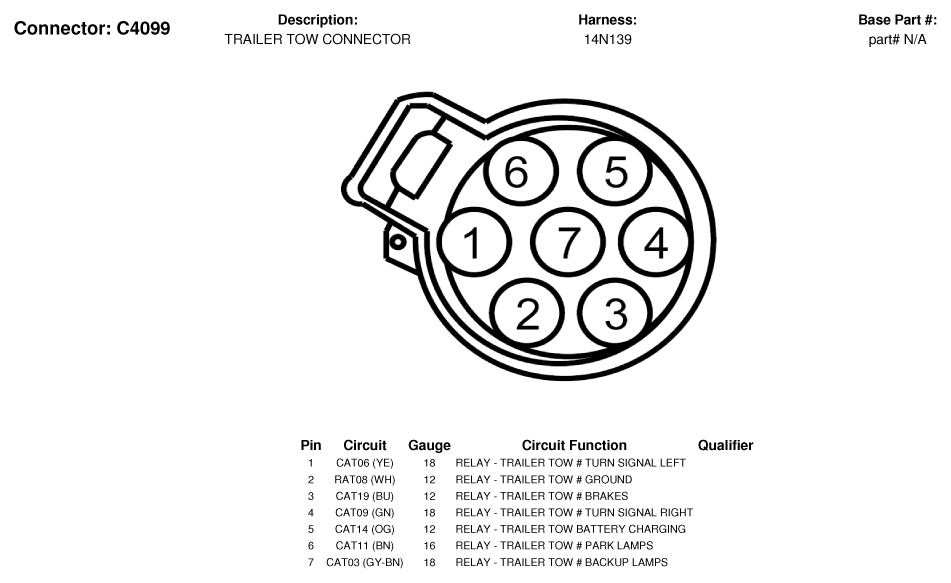

Fig 1: Trailer Tow Connector End View (C4099)
G07336404Courtesy of FORD MOTOR CO.
