Left Rear Lamp Assembly Connector End View - C414

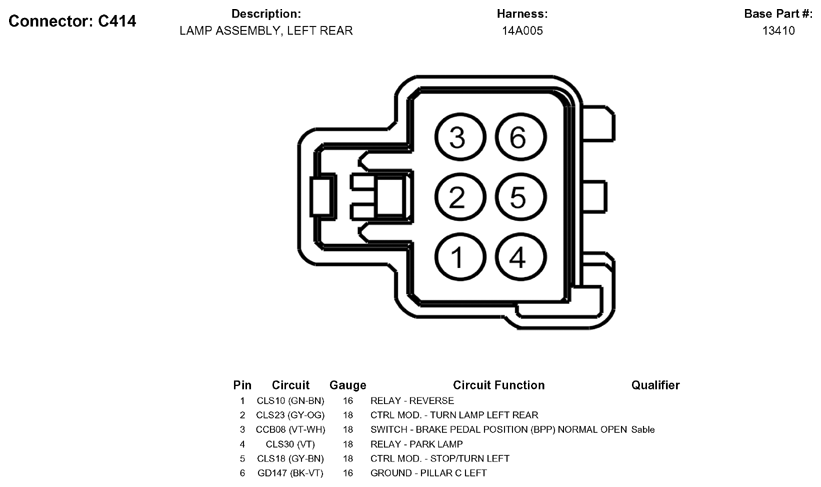

Fig 1: Left Rear Lamp Assembly Connector End View (C414)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
