Master Window Adjust Switch Connector End View - C504A

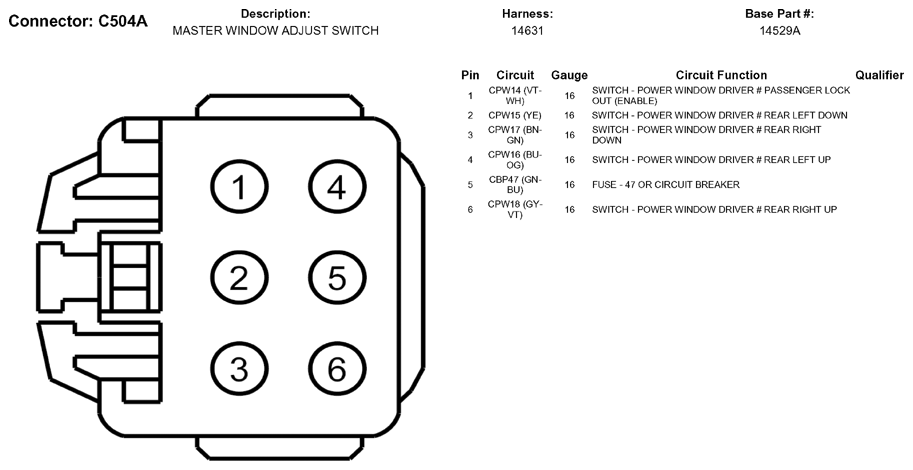

Fig 1: Master Window Adjust Switch Connector End View (C504A)
G05790030Courtesy of FORD MOTOR CO.
