Passenger 1 Side Impact Sensor Connector - C671

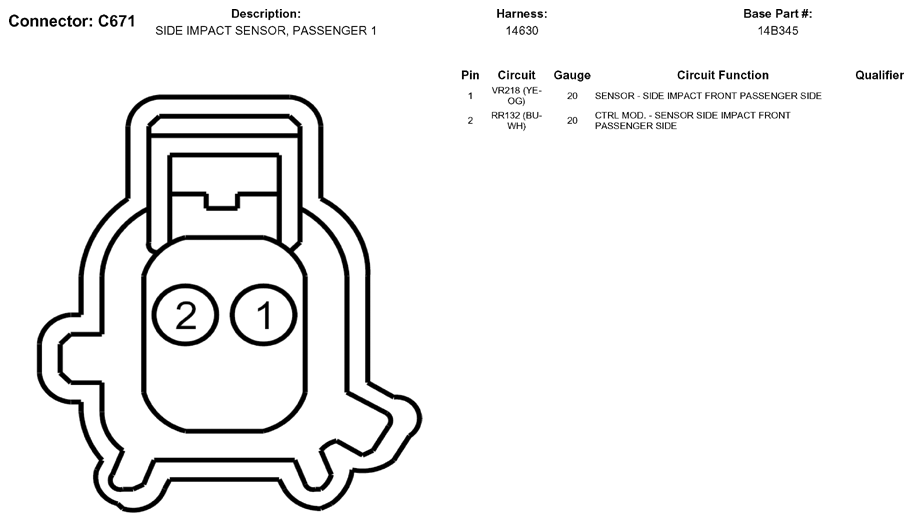

Fig 1: Passenger 1 Side Impact Sensor Connector End View (C671)
G05790052Courtesy of FORD MOTOR CO.
