Passenger Air Bag Module Connector End View - C256A

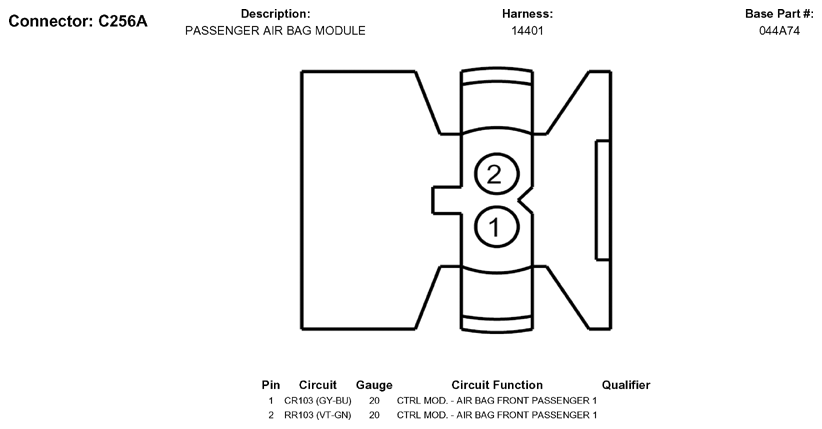

Fig 1: Passenger Air Bag Module Connector End View (C256A)
G05789967Courtesy of FORD MOTOR CO.
