Passenger Side Front Seat Control Switch Connector End View - C3190

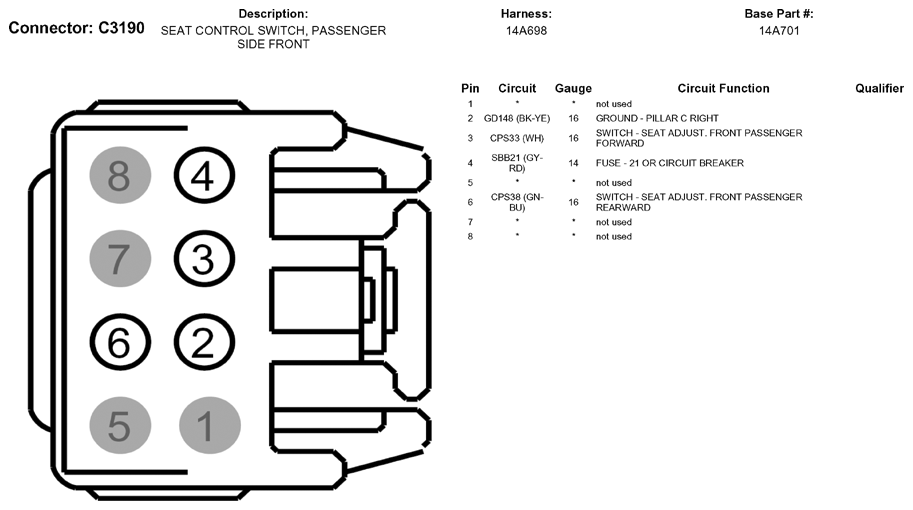

Fig 1: Passenger Side Front Seat Control Switch Connector End View (C3190)
G05790165Courtesy of FORD MOTOR CO.
