Right Rear Lamp Assembly Connector
>>
Right Rear Lamp Assembly Connector End View - C417
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Right Rear Lamp Assembly Connector End View - C417

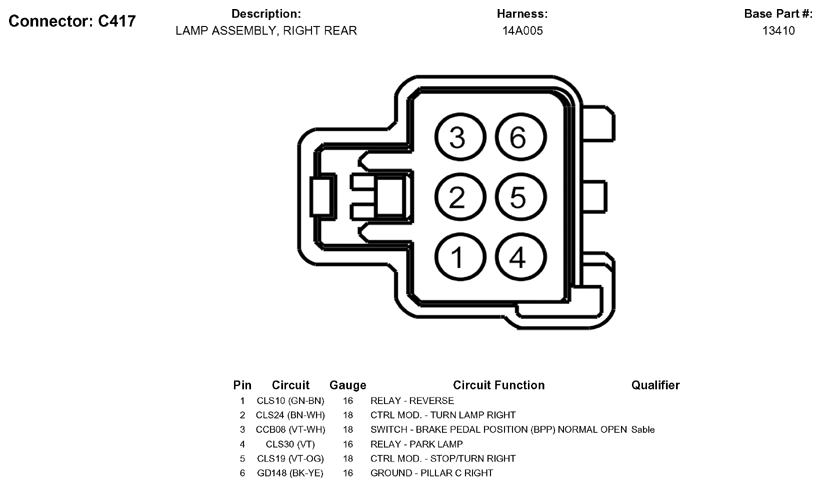

Fig 1: Right Rear Lamp Assembly Connector End View (C417)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
