Right Rear Lamp Assembly Connector End View - C499

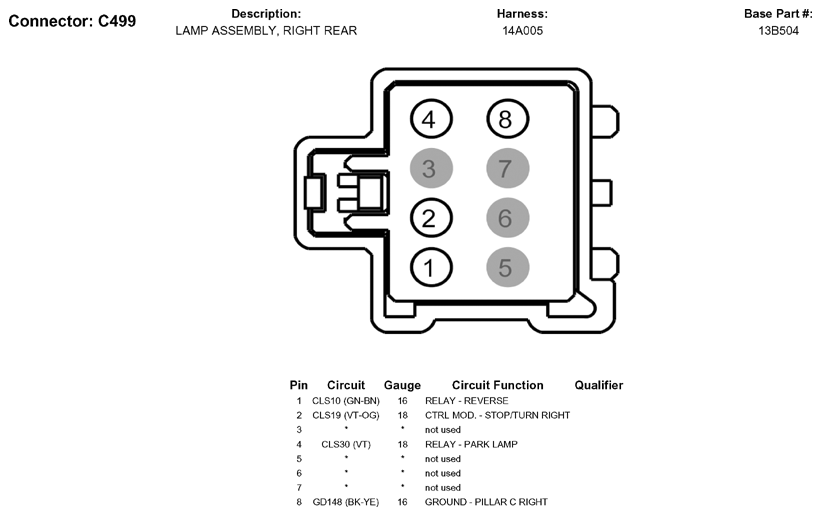

Fig 1: Right Rear Lamp Assembly Connector End View (C499)
Courtesy of FORD MOTOR CO.
