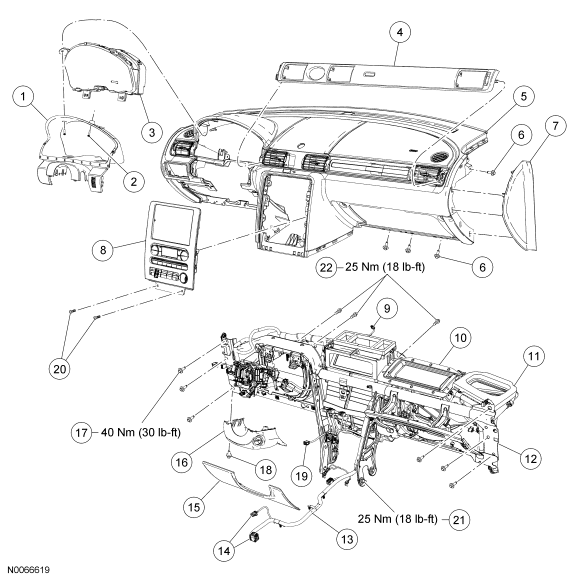

Instrument Panel - Exploded View
| Item | Part Number | Description |
|---|---|---|
| 1 | 044D70 | Instrument cluster finish panel |
| 2 | W505044 | Instrument cluster finish panel screw (2 required) |
| 3 | 10849 | Instrument cluster |
| 4 | 046A62 | Instrument panel finish panel |
| 5 | 04320 | Instrument panel upper section |
| 6 | W707628 | Instrument panel upper section screws (11 required) |
| 7 | 04480 RH/ 04481 LH | Instrument panel side finish panel |
| 8 | 04302 | Center instrument panel finish panel |
| 9 | 14401 | Passenger air bag deactivation (PAD) indicator electrical connector |
| 10 | 044A74 | Passenger side air bag |
| 11 | - | Heater core evaporator core housing |
| 12 | 04545 | In-vehicle cross beam |
| 13 | 14401 | Instrument panel wiring harness |
| 14 | 14401 | Restraints control module (RCM) electrical connectors |
| 15 | 04459 | Steering column opening trim panel |
| 16 | - | Lower steering column shroud |
| 17 | W710259 | Instrument panel bolts (6 required) |
| 18 | - | Steering column shroud screw (3 required) |
| 19 | 14401 | Power point electrical connector |
| 20 | W704831 | Center instrument panel finish panel screws (2 required) |
| 21 | W709268 | Instrument panel center support bolt (4 required) |
| 22 | W709178 | Instrument panel upper cowl bolts (3 required) |

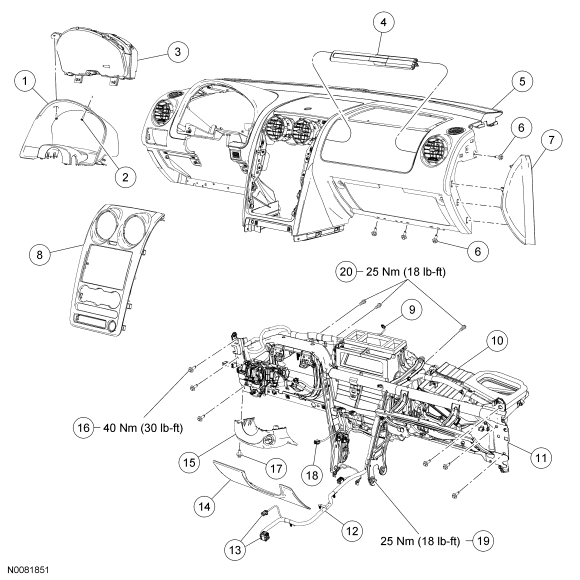

| Item | Part Number | Description |
|---|---|---|
| 1 | 044D70 | Instrument cluster finish panel |
| 2 | W505044 | Instrument cluster finish panel screw (2 required) |
| 3 | 10849 | Instrument cluster |
| 4 | 044J40 | Passenger assist handle |
| 5 | 04320 | Instrument panel upper section |
| 6 | N808453 | Instrument panel upper section screws (11 required) |
| 7 | 04480 RH/ 04481 LH | Instrument panel side finish panel |
| 8 | 04302 | Center instrument panel finish panel |
| 9 | 14401 | Passenger air bag deactivation (PAD) indicator electrical connector |
| 10 | - | Heater core evaporator core housing |
| 11 | 04545 | In-vehicle cross beam |
| 12 | 14401 | Instrument panel wiring harness |
| 13 | 14401 | Restraints control module (RCM) electrical connectors |
| 14 | 04459 | Steering column opening trim panel |
| 15 | - | Lower steering column shroud |
| 16 | W710259 | Instrument panel bolt (6 required) |
| 17 | - | Steering column shroud screw (3 required) |
| 18 | 14401 | Power point electrical connector |
| 19 | W709268 | Instrument panel center support bolt (4 required) |
| 20 | W709178 | Instrument panel upper cowl bolts (3 required) |
- For additional information, refer to the procedures in this article.
