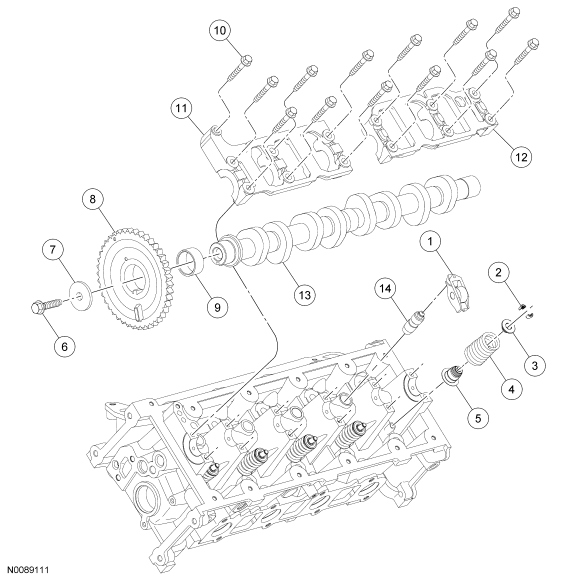

Valve Train Components - Exploded View
WARNING: This page is about a different car, the 2009 Mercury Grand Marquis and 2009 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
LH shown in illustration, RH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 6529 | Camshaft roller follower (8 required) |
| 2 | 6518 | Valve spring retainer key (16 required) |
| 3 | 6514 | Valve spring retainer (8 required) |
| 4 | 6513 | Valve spring (8 required) |
| 5 | 6A517 | Valve stem seal (8 required) |
| 6 | N811085 | Camshaft sprocket bolt |
| 7 | N806164 | Camshaft sprocket bolt washer |
| 8 | 6256 | Camshaft sprocket |
| 9 | 6265 | Camshaft gear spacer |
| 10 | N807352 | Camshaft bearing cap assembly bolt (13 required) |
| 11 | 6B280 | Camshaft bearing cap |
| 12 | 6B280 | Camshaft bearing cap |
| 13 | 6A274 | Camshaft |
| 14 | 6C501 | Hydraulic lash adjuster (8 required) |
- For additional information, refer to the appropriate procedures.
