Audio Input Jack Connector - C3312

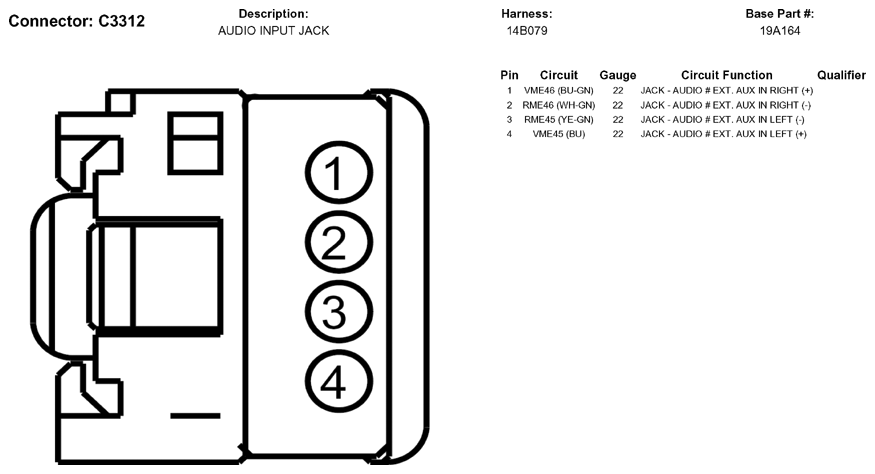

Fig 1: Audio Input Jack Connector End View (C3312)
Courtesy of FORD MOTOR CO.
