Left Rear Lamp Assembly Connector End View - C498

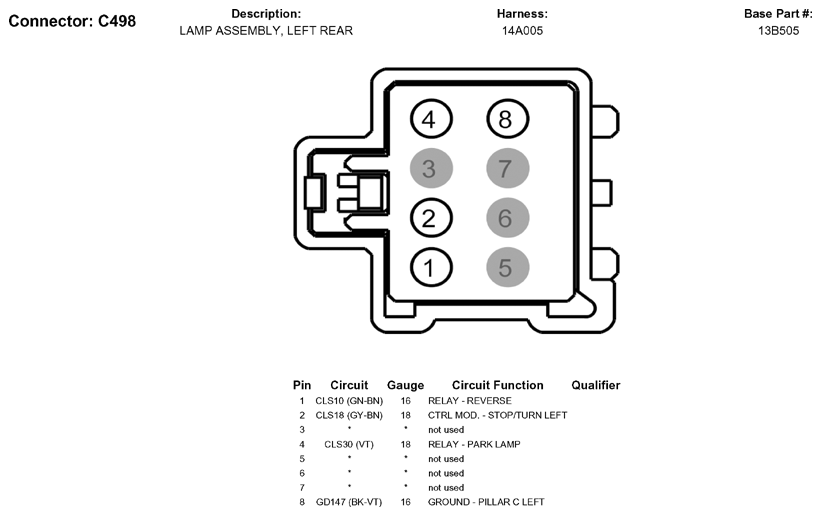

Fig 1: Left Rear Lamp Assembly Connector End View (C498)

G05790026

Courtesy of FORD MOTOR CO.
