Home >> Mercury >> 2010 >> Mariner 4WD L4-2.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Communications Control Module >> Accessory Protocol Interface Module (APIM)
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

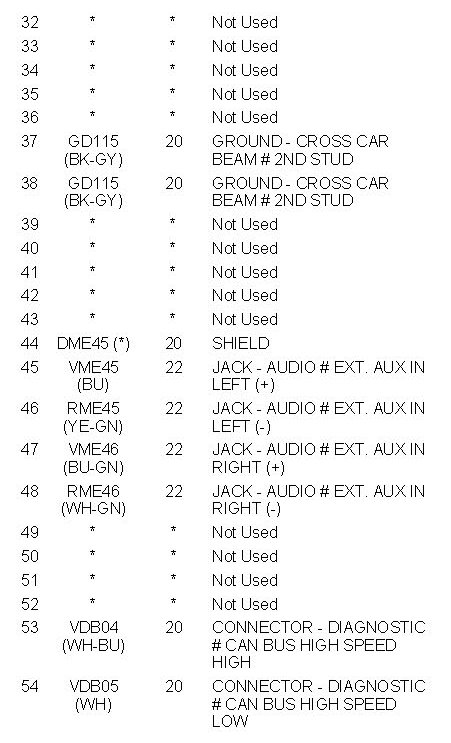

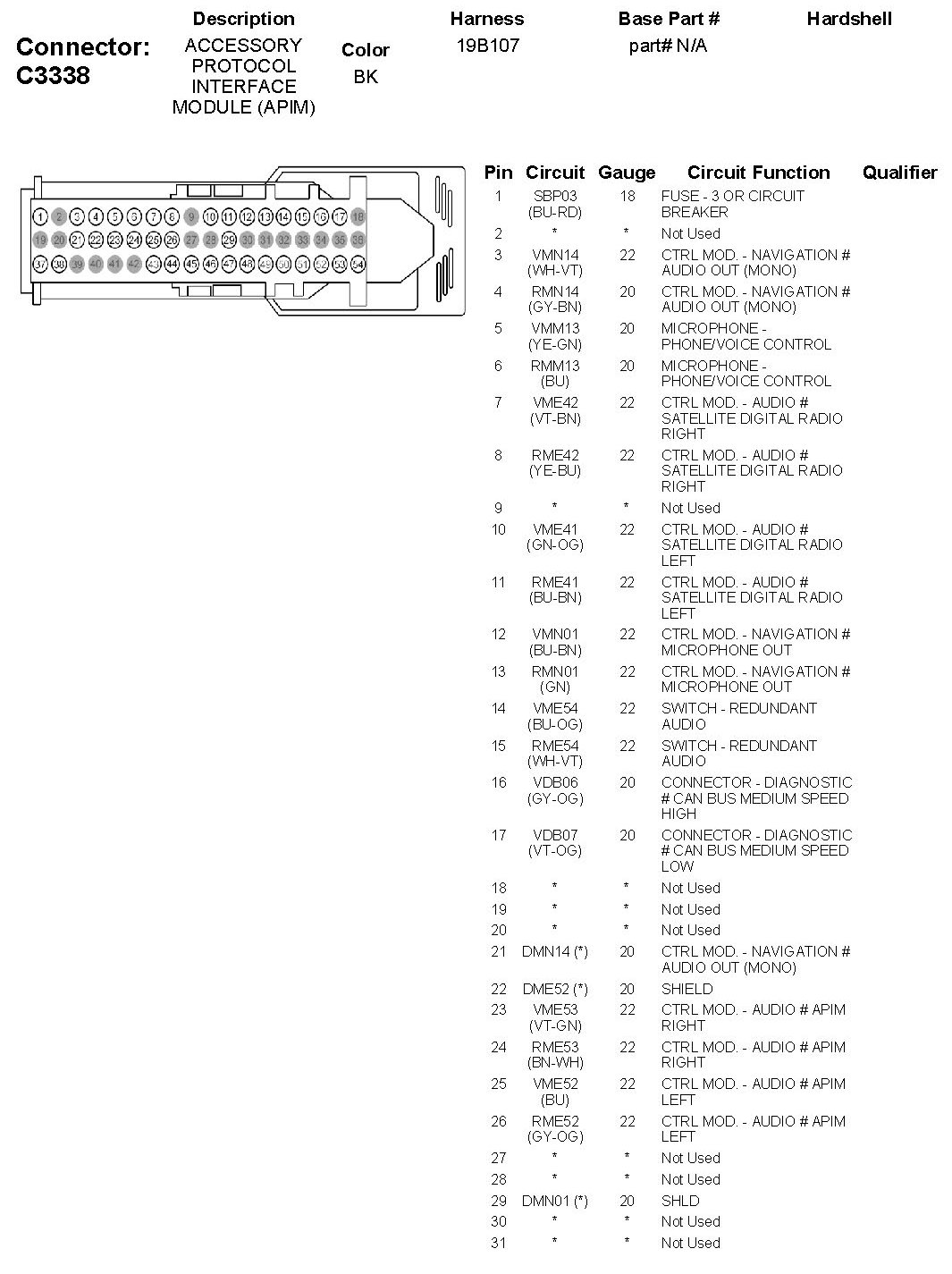

Accessory Protocol Interface Module (APIM)
