Cruise Control Switch




Cruise Control Switch

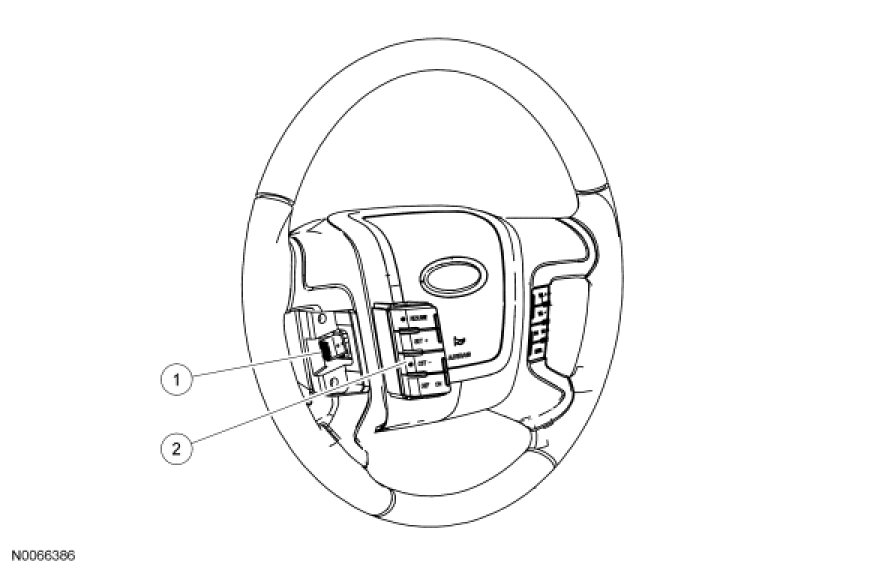

NOTE: Non-hybrid shown, hybrid similar.











Removal and Installation

1. Remove the cruise control switch by pulling the switch toward the rear of the vehicle.
- Disconnect the electrical connector.

2. To install, reverse the removal procedure.
