Pinpoint Test DK: Accelerator Pedal Position (APP) Sensor: Introduction
NOTE:
After clearing an APP sensor diagnostic trouble code (DTC) to verify a repair or an intermittent concern, apply the accelerator pedal before carrying out the self-test. Take 10 seconds to carry out a full sweep of the accelerator pedal from fully released to fully applied and back to fully released.

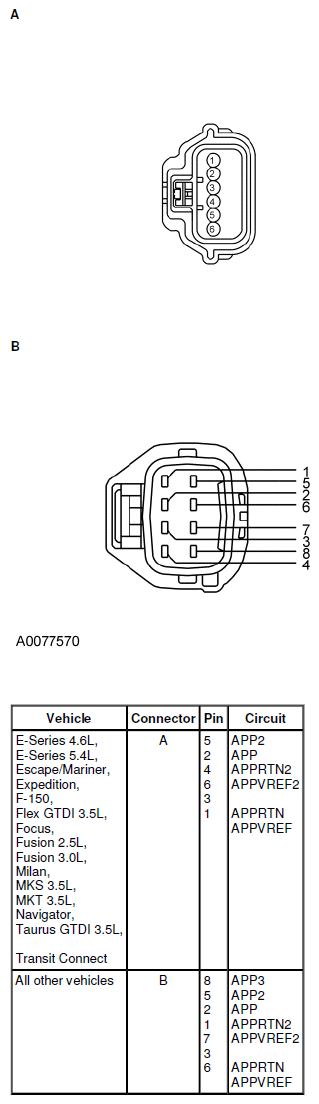

This pinpoint test is intended to diagnose the following:
- APP sensor (9F836)
- harness circuits: APPRTN, APPRTN2, APPVREF, APPVREF2, APP, APP2, and APP3
- powertrain control module (PCM) (12A650)
For PCM connector views or reference values, refer to REFERENCE VALUES .
POWERTRAIN CONTROL MODULE (PCM) CONNECTOR PIN REFERENCE CHART
| Vehicle | Connector | Pin | Circuit |
|---|---|---|---|
| Crown Victoria, E-Series 6.8L, Explorer, Explorer SportTrac, F-Series Super Duty, Grand Marquis, Mountaineer, Mustang, Town Car |
170 Pin | B28 B17 B5 |
APP3 APP2 APP |
| Edge, Flex 4V 3.5L, MKS 3.7L, MKT 3.7L, MKX, Taurus 4V 3.5L |
190-Pin | B27 B26 B25 |
APP3 APP2 APP |
| Fusion 3.5L, MKZ |
140 Pin | B27 B26 B25 |
APP3 APP2 APP |
| All other vehicles | 190-Pin | B29 B28 |
APP2 APP |
